Luminex MAGPIX Hardware and Installation Manual User Manual
Page 51

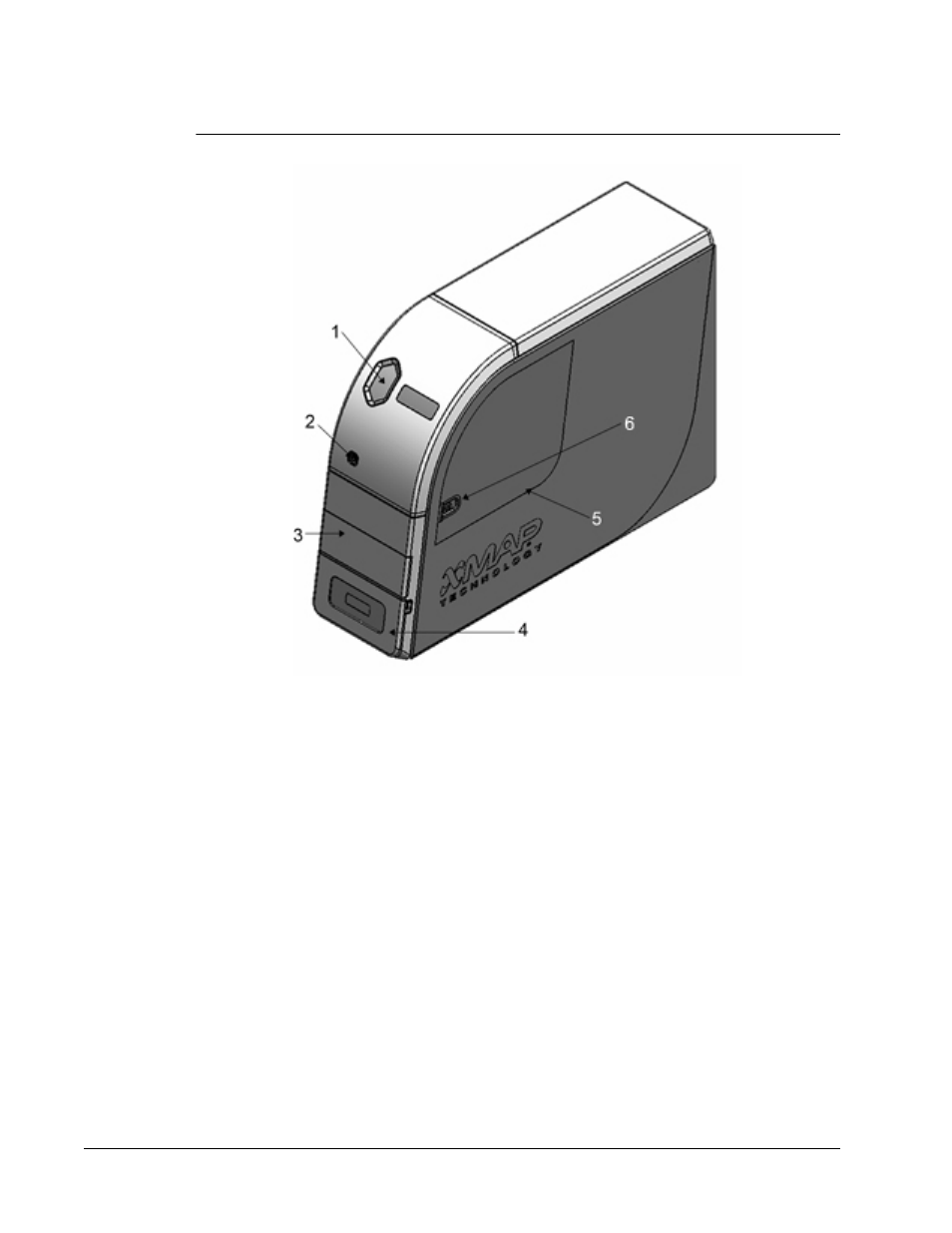

FIGURE 37.
MAGPIX Front & Right Side
1. Status indicator light
2. Soft on/off switch
3. Access door for plate carrier.
4. Access door for fluid compartment. For a more detailed illustration, see
5. Side access door
6. Side access door latch
MAGPIX
®
38
