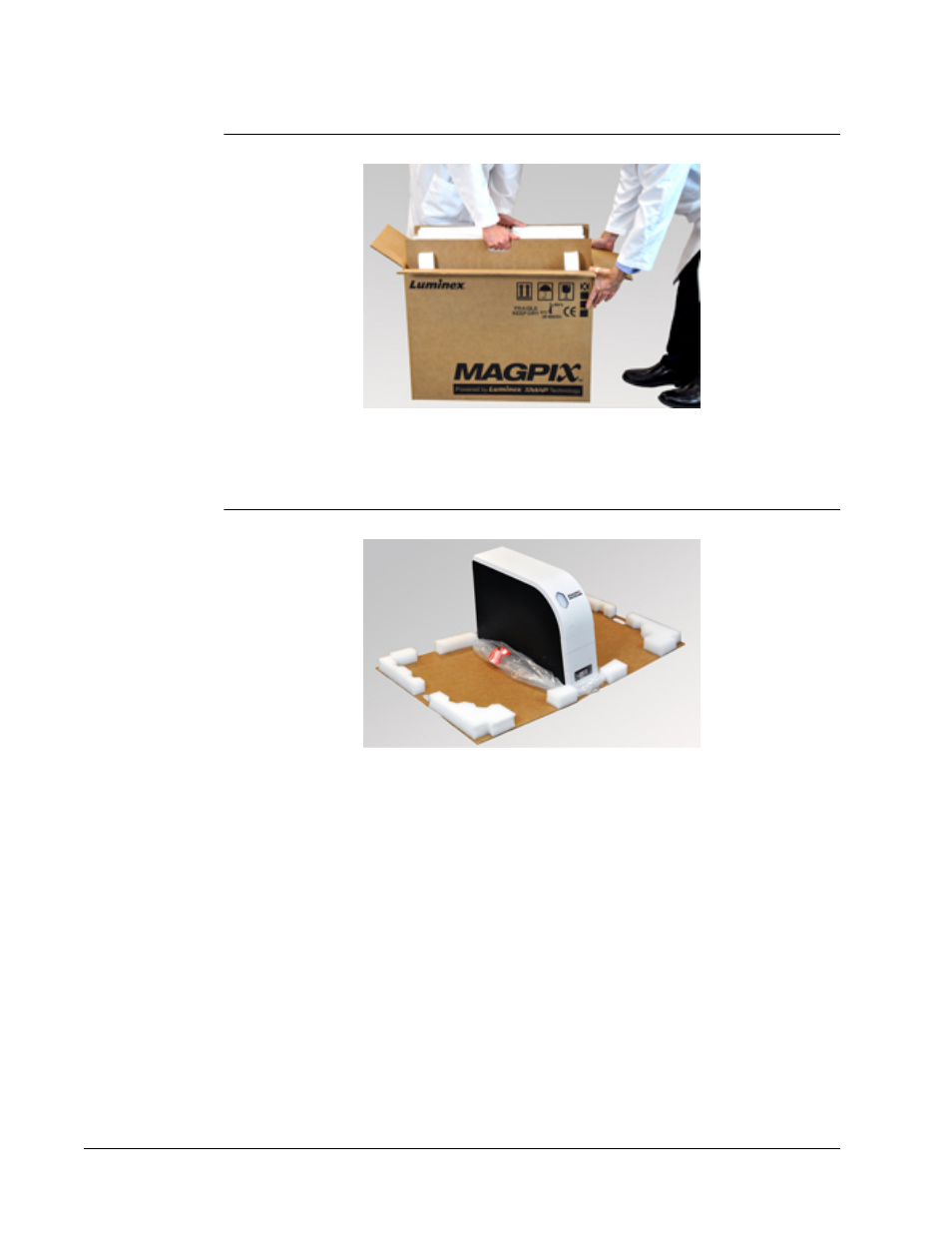

FIGURE 13.
Pulling MAGPIX from its Carton
3. Put the instrument on a stable, flat surface. This may require two people.
4. Fold down the cardboard panels from each side of the instrument.
FIGURE 14.
Removing the Packing Materials
5. Pull the plastic bag down from the top.
6. Place MAGPIX onto a lab bench or other flat, stable surface. This may require two
people.
Before proceeding with the installation, check the contents of the overpack with the checklist
on
on page 35 and make certain you can locate all listed items. Check
contents to make certain no damage has occurred during shipping. If anything is missing or
damaged, contact Luminex Technical Support (in the U.S. and Canada, 1-877-785-BEAD
(-2323); outside of the U.S. and Canada, +1 512-381-4397; in Europe, +31 162 408 333).
Connecting the Components
To connect the components:
MAGPIX
®
16
