CAUTION:
This overpack is too heavy to be lifted by one person
(approximately 119lbs (53.97kg), a three-person lift) and should
be moved mechanically. Be careful the overpack is not
punctured during any necessary moving.
Within the overpack are separate cartons for the PC, the monitor, the 2-pack of Drive Fluid,
and the MAGPIX instrument. In addition, a divided tray contains the cables, CDs, and printed
material. For the complete list of contents, see
FIGURE 9.

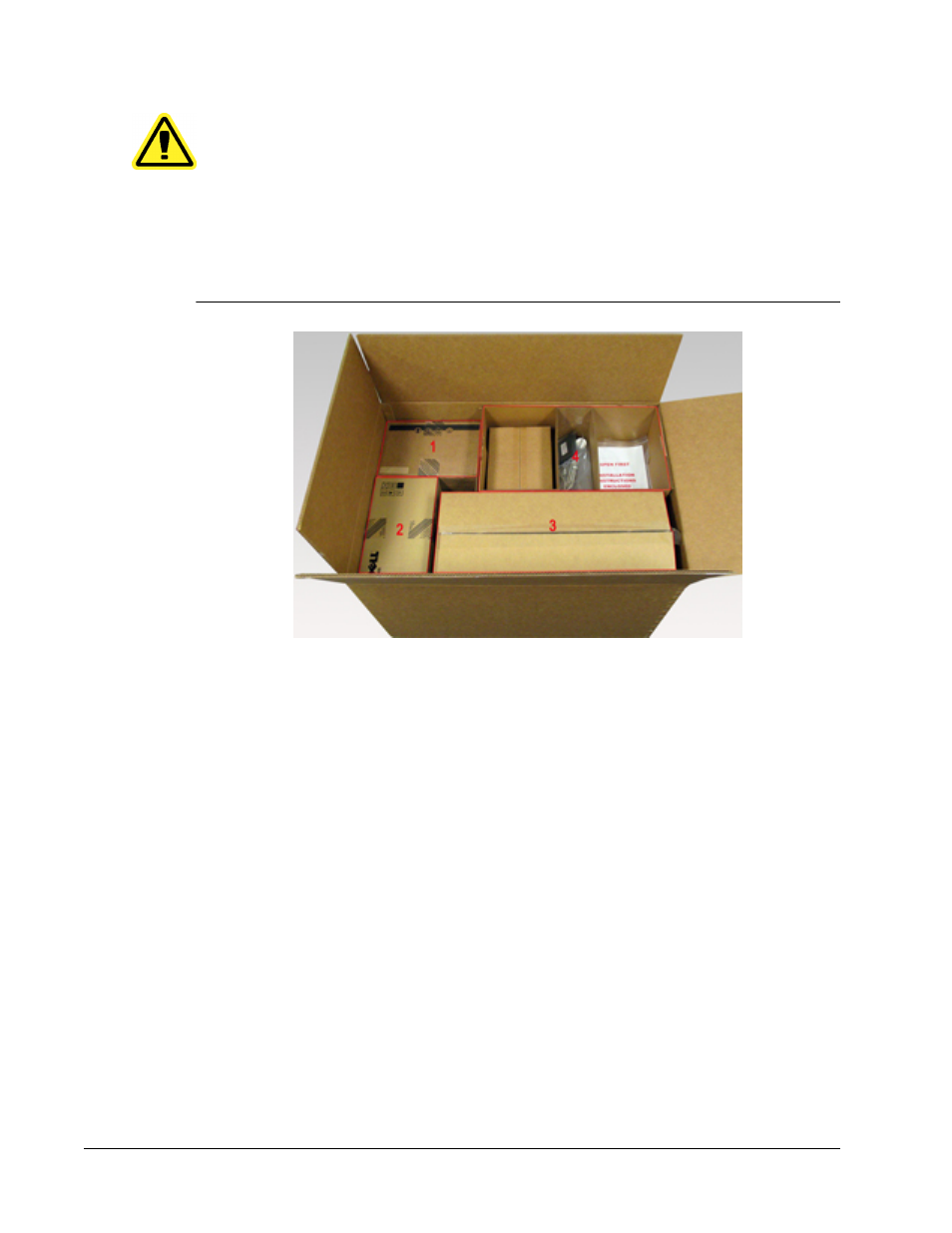

Inside the Overpack
1. PC carton
2. Monitor carton
3. MAGPIX carton
4. Accessory tray (monitor stand and Drive Fluid cartons are underneath)
Each individual carton can be handled by one person. The MAGPIX carton and the PC carton
each weigh less than 40 pounds (18.14 kg).
Installation Diagrams
MAGPIX
®
