8 2551 Magmeter

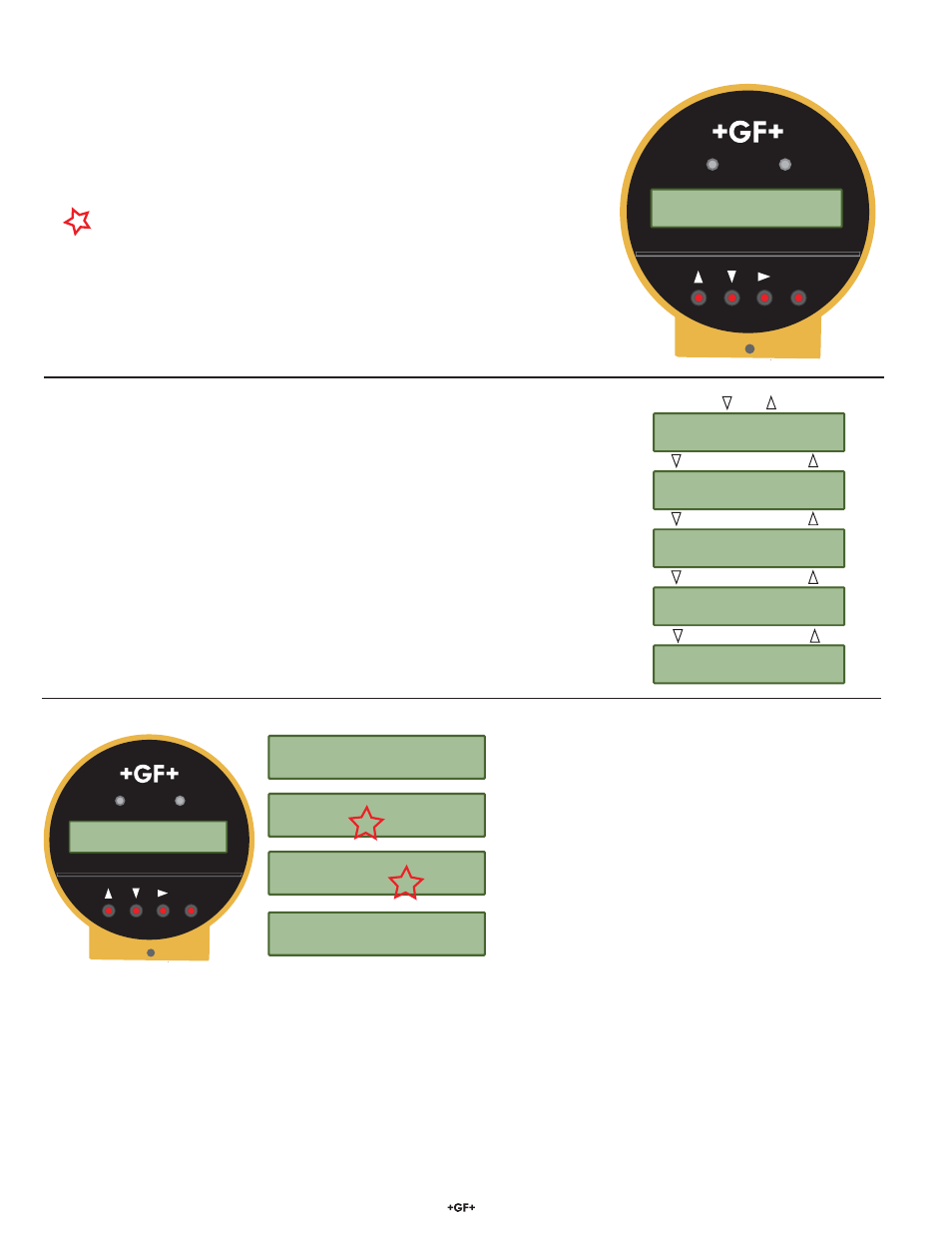

6. View Menu
The VIEW menu contains all of the basic information available from the Magmeter.
• The normal operating display shows the FLOW RATE on the top line of the display and
the Resettable Totalizer on the lower line of the display.
• The Right Prompt symbol (>) always indicates a sub-menu associated with the current
display. In this display it points the way to the TOTALIZER RESET function. See section
6.1 for detailed instructions.
• With AUXILIARY power connected to the magmeters with Relays, the display will be
backlit. There is no switch to turn the backlight off.
• A À ashing character or text on the display indicates that the item is being edited.
This manual uses a (red) star to illustrate a À ashing display.
• The following information is viewed by scrolling Ÿ or ź. These displays will remain in
the display for 10 minutes, then the normal operating display will return.
1. From the normal operating display, press the Ź key.
3. Press any arrow key to toggle the À ashing selection
from NO to YES.
4. Press the ENTER key. The totalizer will reset to all
zeroes and the display will immediately return to the
normal operating display.
2. The resettable totalizer can be con¿ gured to require
the security code before allowing the reset. If the
Total Reset is set to "RESET OFF" this display will not
appear. See section 11, Options Menu for instructions.
6.1 Resetting the Resettable Totalizer
Signet Magmeter
RELAY 1 RELAY 2
ENTER
1234.56 GPM
876543.21 >
Show the permanent total. This totalizer cannot be reset.
This display is a reminder to visit the Signet website for updates
and information about Signet products.
Enter menus from this display. See section 6.2.
Shows the current output. For 4 to 20 mA Output models only.
123456.78 GPM
000000.00 >
1234.56 GPM
876543.21 >
Enter Code
0000
Reset Total ?
Yes No
Signet Magmeter
RELAY 1 RELAY 2
ENTER
1234.56 GPM
876543.21 >
Gallons
Perm 876543.21
Current Output
14.89 mA
Relay 1 2 3
Off Off Off
Web Site
www.gfsignet.com
Enter Menu
>
Relay States shown for units with a relay board.
