18 2551 Magmeter

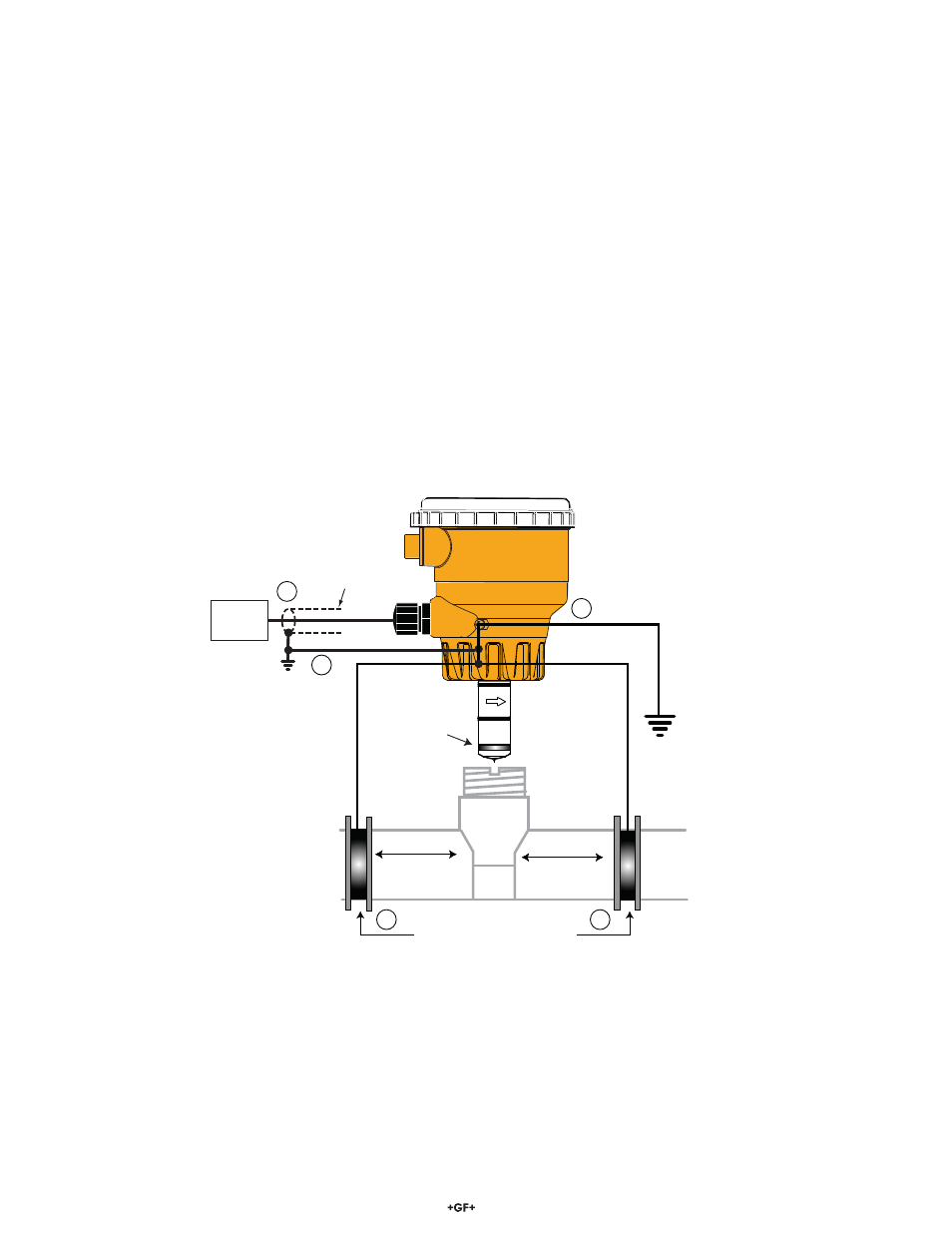

Grounding rings on plastic pipe
(Install between flanges)
or
metal straps on metal pipe
Sensor
Grounding ring
(10 cm to 1.3 m) (10 cm to 1.3 m)
4 in. to 50 in. 4 in. to 50 in.
Instrument
4.
2. 2.
Do not terminate
shield at Magmeter
3.
1.
12. Technical Information
12.1 Grounding
Precalibration conditioning: The magmeter may appear to be unstable immediately after installation. Allow the sensor to sit in a full pipe
for 24 hours before beginning calibration and operation.
• Use a cable gland or a liquid tight connector to seal the cable ports from water intrusion.
• Use PTFE tape or a suitable sealant on cable ports.
• The 2551 magmeter must be carefully grounded to eliminate electrical noise that may interfere with the measurement.
• Grounding requirements will vary with each installation.
• The following recommendations should be applied in sequence until the interference is eliminated.
c
The ground terminal on the outside of the yellow housing is connected internally to the grounding ring at the tip of the sensor.
Connect a conductor (14 AWG/1.5 mm 2 wire recommended) from this terminal directly to Earth ground to prevent electrical noise
from interfering with the magmeter signal.
If the interference persists, apply step #2:
d
Connect grounding rings, metal clamps or grounding electrodes to the pipe immediately upstream and downstream of the
magmeter sensor location. These devices must be in contact with the À uid.
If the interference persists, apply step #3:
e
The shield from the output cable must be terminated at the remote instrument ONLY.
This shield must not be connected at both ends!
If the interference persists, apply step #4:
f
Connect an additional wire (minimum AWG 14/1.5 mm 2 ) from the remote instrument ground to the magmeter ground terminal.
Environmental Recommendations:
• When used properly, this product presents no inherent danger to the environment.
• Please follow local ordinance when disposing of this or any product with electronic components.
12.2 Maintenance
The 2551 Magmeter requires very little maintenance. There are no user-serviceable components in the magmeter.
• If the À uid contains deposits and solids that may coat the electrodes, a regular cleaning regimen is recommended.
• Do not use abrasive materials on the metal electrodes. Clean with soft cloth and mild detergent only.
• Use a cotton swab and mild detergent to remove deposits on the metal electrodes.
