GF Signet 2551 Magmeter Flow Sensor - Display - Manual (Page 13)

13 2551 Magmeter

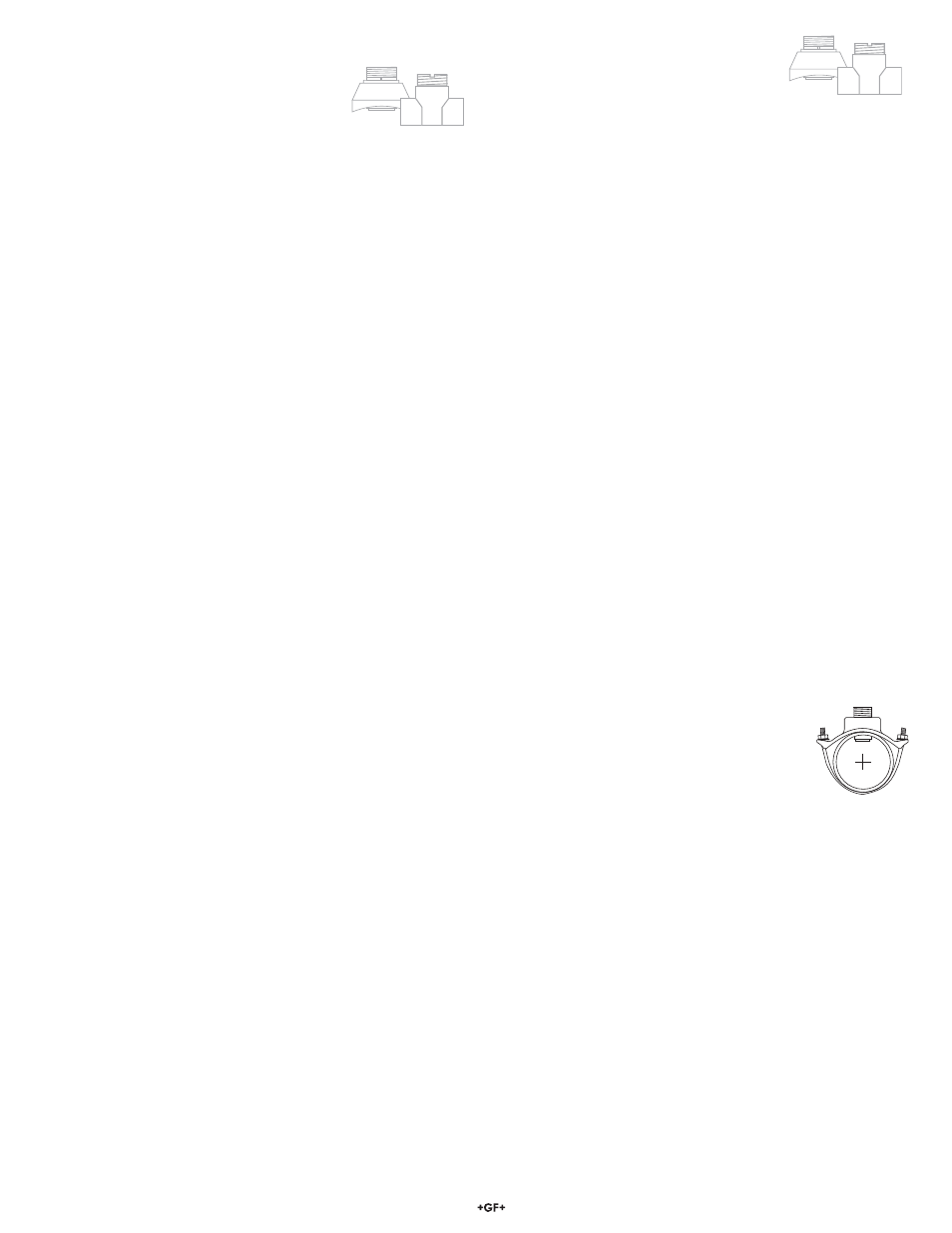

Iron Saddles
Bronze and Copper Tees and Brazolets
7.3 Calibration Data: K-Factors
Carbon Steel Tees and Weld-o-Lets
Stainless Steel Tees and Weld-o-Lets
Galvanized Iron Tees
Pipe Size
(In.)
Fitting
Type
K-Factor
Gallons K-Factor
Liters
CARBON STEEL TEES ON SCH 40 PIPE
½ CS4T005 1572.66 415.50
¾ CS4T007 1086.73 287.11
1 CS4T010 582.34 153.86
1¼ CS4T012 377.48 99.73
1½ CS4T015 267.79 70.75
2 CS4T020 167.85 44.35
STAINLESS STEEL TEES ON SCH 40 PIPE
½ CR4T005 1601.26 423.05
¾ CR4T007 937.78 247.76
1 CR4T010 606.18 160.15
1¼ CR4T012 279.68 73.89
1½ CR4T015 147.65 39.01
2 CR4T020 111.90 29.56
STAINLESS STEEL WELDOLETS ON SCH 40 PIPE
2½ CR4W025 106.31 28.09
3 CR4W030 72.27 19.09
4 CR4W040 36.84 9.73
5 CR4W050 29.28 7.73
6 CR4W060 20.29 5.36
8 CR4W080 11.73 3.10
10 CR4W100 7.45 1.97
12 CR4W120 5.24 1.39
CARBON STEEL WELDOLETS ON SCH 40 PIPE
2½ CS4W025 105.70 27.93
3 CS4W030 70.68 18.67
4 CS4W040 36.38 9.61
5 CS4W050 29.28 7.73
6 CS4W060 20.29 5.36
8 CS4W080 11.73 3.10
10 CS4W100 7.45 1.97
12 CS4W120 5.24 1.39
GALVANIZED IRON TEES ON SCH 40 PIPE
1 IR4T010 558.50 147.56
1¼ IR4T012 334.45 88.36
1½ IR4T015 248.97 65.78
2 IR4T020 146.00 38.57
Pipe Size
(In.)
Fitting
Type
K-Factor
Gallons K-Factor
Liters
BRONZE TEES ON SCH 40 PIPE
1 BR4T010 582.34 153.86
1¼ BR4T012 330.54 87.33
1½ BR4T015 254.76 67.31
2 BR4T020 157.36 41.58
COPPER TEES FITTING ON COPPER PIPE SCH K
½ CUKT005 2459.19 649.72
¾ CUKT007 1108.02 292.74
1 CUKT010 649.87 171.70
1¼ CUKT012 422.03 111.50
1½ CUKT015 281.43 74.35
2 CUKT020 136.02 35.94
COPPER TEES FITTING ON COPPER PIPE SCH L
½ CUKT005 2406.30 635.75
¾ CUKT007 1174.77 310.37
1 CUKT010 672.28 177.62
1¼ CUKT012 402.84 106.43
1½ CUKT015 294.99 77.94
2 CUKT020 149.63 39.53
COPPER/BRONZE BRAZOLET ON SCH 40 PIPE
2½ BR4B025 117.31 30.99
3 BR4B030 78.62 20.77
4 BR4B040 45.13 11.92
5 BR4B050 32.79 8.66
6 BR4B060 22.73 6.01
8 BR4B080 13.14 3.47
10 BR4B100 8.34 2.20
12 BR4B120 5.87 1.55
Pipe Size
(In.)
Fitting
Type
K-Factor
Gallons K-Factor
Liters
SCH 80 IRON SADDLE ON SCH 80 PIPE
2 IR8S020 194.85 51.48
2½ IR8S025 142.28 37.59
3 IR8S030 87.53 23.13
4 IR8S040 40.62 10.73
5 IR8S050 29.28 7.74
6 IR8S060 22.30 5.89
8 IR8S080 12.52 3.31
10 IR8S100 7.94 2.10
12 IR8S120 5.65 1.49
SCH 80 IRON SADDLE ON SCH 40 PIPE
2 IR8S020 185.35 48.97
2½ IR8S025 127.47 33.68
3 IR8S030 76.62 20.24
4 IR8S040 40.23 10.63
5 IR8S050 27.32 7.22
6 IR8S060 19.71 5.21
8 IR8S080 11.61 3.07
10 IR8S100 7.36 1.94
12 IR8S120 5.18 1.37
