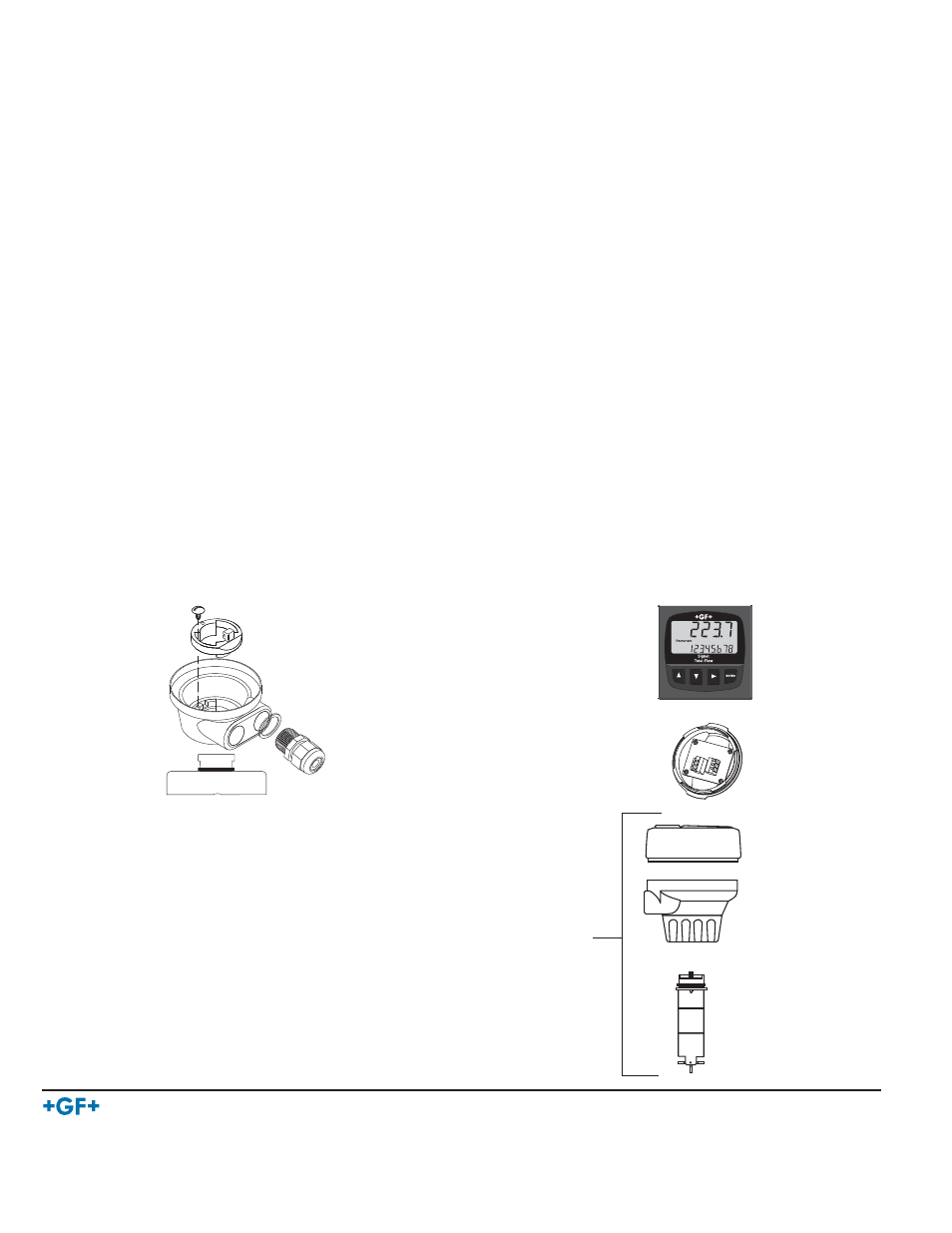

Signet Total Flow

3-8150-P0
3-8150-P1
3-8150-T0
3-8150-V0

Integral System

Terminal Cover
4-3111

Flow Totalizer
Panel Mount
3-8150-1P

Flow
Totalizer
(3-8150-1)

Integral
Mounting Kit
(3-8051-X)

Integral
Flow Sensor
(3-8510-XX)

19. Ordering Information

Mfr. Part No.

Code

Description

3-8150-1

159 000 929

Flow Totalizer

3-8150-1P

159 000 930

Flow Totalizer, Panel Mount

3-8150-P0

159 000 931

Flow Totalizer system, Integral, for 0.5 to 4 in. pipes, PP housing, Blk PVDF rotor, Titanium pin

3-8150-P1

159 000 932

Flow Totalizer system, Integral, for 0.5 to 8 in. pipes, PP housing, Blk PVDF rotor, Titanium pin

3-8150-T0

159 001 011

Flow Totalizer system, Integral, for 0.5 to 4 in. pipes, natural PVDF housing, rotor and pin

3-8150-V0

159 001 012

Flow Totalizer system, Integral, for 0.5 to 4 in. pipes, natural PVDF housing, rotor, Hastelloy-C pin

Parts and Accessories
Mounting

3-8050

159 000 184

Universal mounting kit

3-0000.596

159 000 641

Heavy duty wall mount bracket (for panel mount only)

3-5000.598

198 840 225

Surface mount bracket

3-8050.395

159 000 186

Splashproof rear cover for panel mount totalizer

3-9000.392

159 000 368

Liquid tight connector kit (includes 3 connectors)

3-9000.392-1

159 000 839

Liquid tight connector, NPT (1 connector)

3-9000.392-2

159 000 841

Liquid tight connector, PG 13.5 (1 connector)

3-8050.390-1

159 001 702

Retaining Nut Replacement Kit, NPT, Valox

3-8050.390-3

159 310 116

Retaining Nut Replacement Kit, NPT, PP

3-8050.390-4

159 310 117

Retaining Nut Replacement Kit, NPT, PVDF

3-8050.392

159 000 640

Model 200 retrofi t adaptor

7400-0011

159 000 935

Lithium battery, 3.6 V, AA size Note: Use Saft LS14500 Lithium Batteries or equivalent ONLY.

5523-0222

159 000 392

Cable, two conductor shielded, 22 AWG

Replacement parts for integral mount units

3-8051

159 000 187

Flow Sensor Integral Mounting Kit, NPT, Valox

3-8051-1

159 001 755

Flow Sensor Integral Mounting Kit, NPT, PP

3-8051-2

159 001 756

Flow Sensor Integral Mounting Kit, NPT, PVDF

3-8510-P0

198 864 504

Sensor for 0.5 to 4 in. pipes, Polypropylene housing, titanium pin, Blk PVDF rotor

3-8510-P1

198 864 505

Sensor for 5 to 8 in. pipes, Polypropylene body

3-8510-T0

159 000 622

Sensor for 0.5 to 4 in. pipes, natural PVDF housing, rotor and pin

3-8050

Universal mounting kit
