Brooks Instrument 5800S Series - Manual (Page 33)

Models 5800-S
Installation and Operation Manual
X-TMF-5800S-MFC-eng
PN 541-C-051-AAG
November, 2008
33

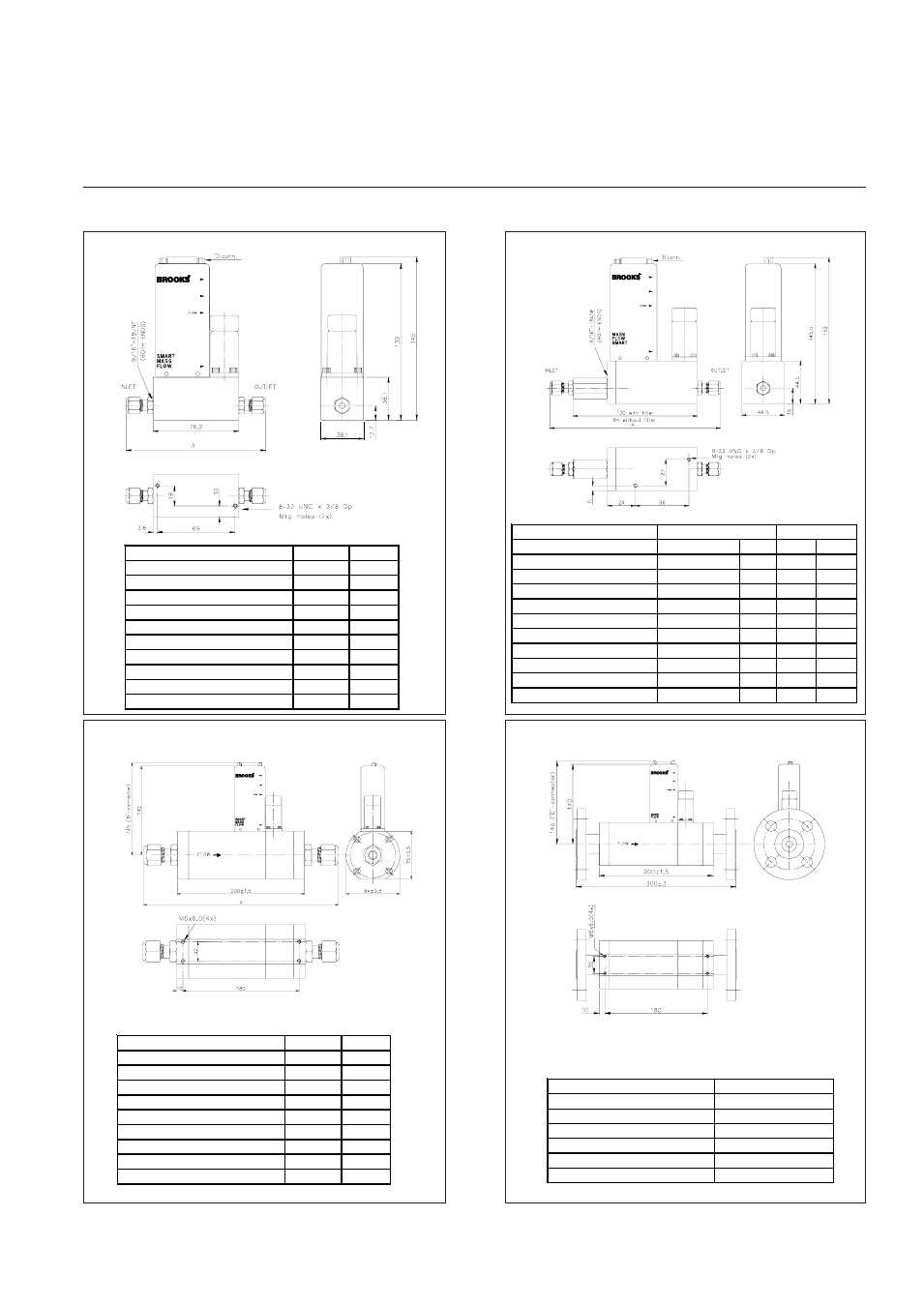

Model 5850S
Model 5853S
Model 5851S
Model 5853S
5850S CONNECTIONS A (mm) Inches
9/16-18 UNF (no adapters) 76 3
3/8" TUBE COMPR. 131 5,14
1/4" TUBE COMPR. 128 5,02
1/8" TUBE COMPR. 123 4,84
1/4" VCR 124 4,88
1/4" VCO 116 4,56
1/4" NPT 116 4,58
6mm TUBE COMPR. 128 5,02
10mm TUBE COMPR. 131 5,14
1/4" BSP 116 4,58
5853S CONNECTIONS A (mm) Inches
1/2" TUBE COMPR. 267 10,51
3/4" TUBE COMPR. 267 10,51
1" TUBE COMPR. 276 10,85
1/2" VCR 322 12,69
1/2" VCO 250 9,83
3/4" VCO 257 10,11
0.5", 1", 1.5" NPT
OR 1- 1/16"-12 (no adapters) 199
7,83
FLENS 299 11,76
CONNECTIONS
DIN DN15 PN40
DIN DN25 PN40
DIN DN40 PN40
DIN DN50 PN40
A NSI 0.5" 150 LBS
A NSI 0.5" 300 LBS
A NSI 2" 300 LBS
A NSI 1" 300 LBS
A NSI 1.5" 150 LBS
A NSI 1.5" 300 LBS
A NSI 2" 150 LBS
A NSI 1" 150 LBS
5851S CONNECTIONS
Filters >>
ex c l. inc l. ex c l. inc l.
9/16-18 UNF (no 94 130 3,68 5,1
1/4" TUBE COMPR. 145 181 5,7 7,12
3/8" TUBE COMPR. 148 184 5,82 7,24
1/4" V CR 141 177 5,56 6,98
1/2" V CO 144 180 5,68 7,1
1/4" V CO 133 169 5,24 6,66
1/4" NPT 134 170 5,26 6,68
6mm TUBE COMPR. 145 181 5,7 7,12
10mm TUBE COMPR. 148 184 5,82 7,24
1/4" BSP 134 170 5,26 6,68
Inc hes A (mm)
Appendix B
