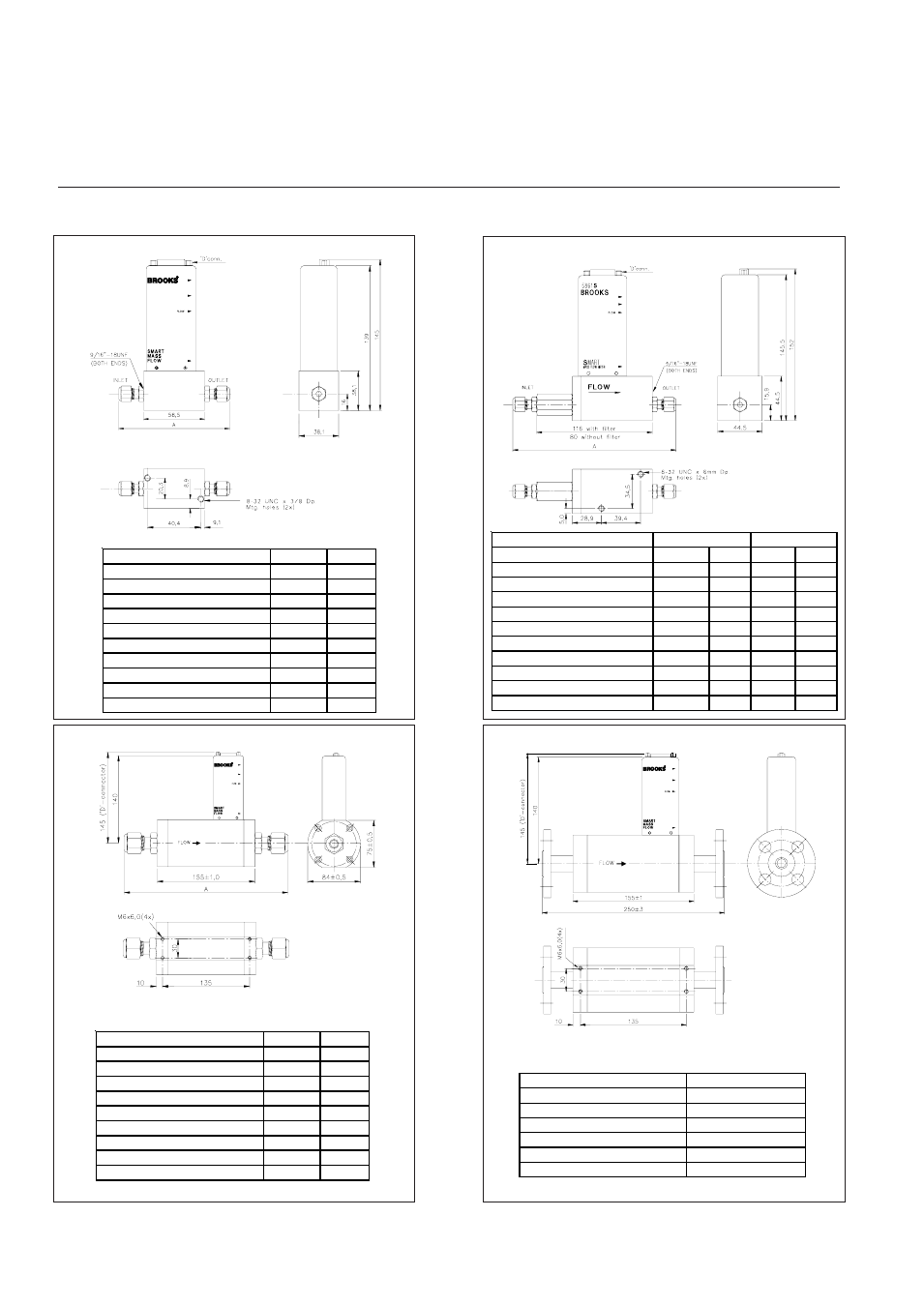

Appendix B: Dimensional drawings
Model 5860S
Model 5863S
Model 5861S
Model 5863S
5860S CONNECTIONS A (mm) Inches
9/16-18 UNF (no adapters) 59 2,31
3/8" TUBE COMPR. 113 4,45
1/4" TUBE COMPR. 110 4,33
1/8" TUBE COMPR. 105 4,15
1/4" VCR 106 4,19
1/4" VCO 98 3,87
1/4" NPT 99 3,89
6mm TUBE COMPR. 110 4,33
10mm TUBE COMPR. 113 4,45
1/4" BSP 99 3,89
5 8 6 1 S CO NNECTIO NS
Filte r s > >
e x c l. in c l. e x c l. in c l.
9 /1 6 - 1 8 UNF ( n o 8 0 1 1 6 3 ,1 5 4 ,5 7
1 /4 " TUB E CO MPR. 1 3 1 1 6 7 5 ,1 7 6 ,5 9
3 /8 " TUB E CO MPR. 1 3 4 1 7 0 5 ,2 9 6 ,7 1
1 /4 " V CR 1 2 8 1 6 4 5 ,0 3 6 ,4 5
1 /2 " V CO 1 3 1 1 6 7 5 ,1 5 6 ,5 7
1 /4 " V CO 1 2 0 1 5 6 4 ,7 1 6 ,1 3
1 /4 " NPT 1 2 0 1 5 6 4 ,7 3 6 ,1 5
6 mm TUB E CO MPR. 1 3 1 1 6 7 5 ,1 7 6 ,5 9
1 0 mm TUB E CO MPR. 1 3 4 1 7 0 5 ,2 9 6 ,7 1
1 /4 " B S P 1 2 0 1 5 6 4 ,7 3 6 ,1 5
A ( mm) In c h e s
5863S CONNECTIONS A (mm) Inches
1/2" TUBE COMPR. 223 8,78
3/4" TUBE COMPR. 223 8,78
1" TUBE COMPR. 232 9,12
1/2" VCR 210 8,28
1/2" VCO 206 8,1
3/4" VCO 213 8,38
0.5", 1", 1.5" NPT OR
1- 1/16"-12 (no adapters)
155 6,1
FLENS 255 10,04
CONNECTIONS
DIN DN15 PN40
DIN DN25 PN40
DIN DN40 PN40
DIN DN50 PN40
A NSI 0.5" 150 LBS
A NSI 0.5" 300 LBS
A NSI 1.5" 300 LBS
A NSI 2" 150 LBS
A NSI 2" 300 LBS
A NSI 1" 300 LBS
A NSI 1" 150 LBS
A NSI 1.5" 150 LBS
