Models 5800-S

Installation and Operation Manual

X-TMF-5800S-MFC-eng
PN 541-C-051-AAG
November, 2008

Length: 3 m;

part number 124-Z-236-AAA

Length: 6 m;

part number 124-Z-237-AAA

Length: 12 m;

part number 124-Z-610-AAA

THERMAL SIDE

Sub-D 15-pin female

READ-OUT SIDE

Sub-D 15-pin male

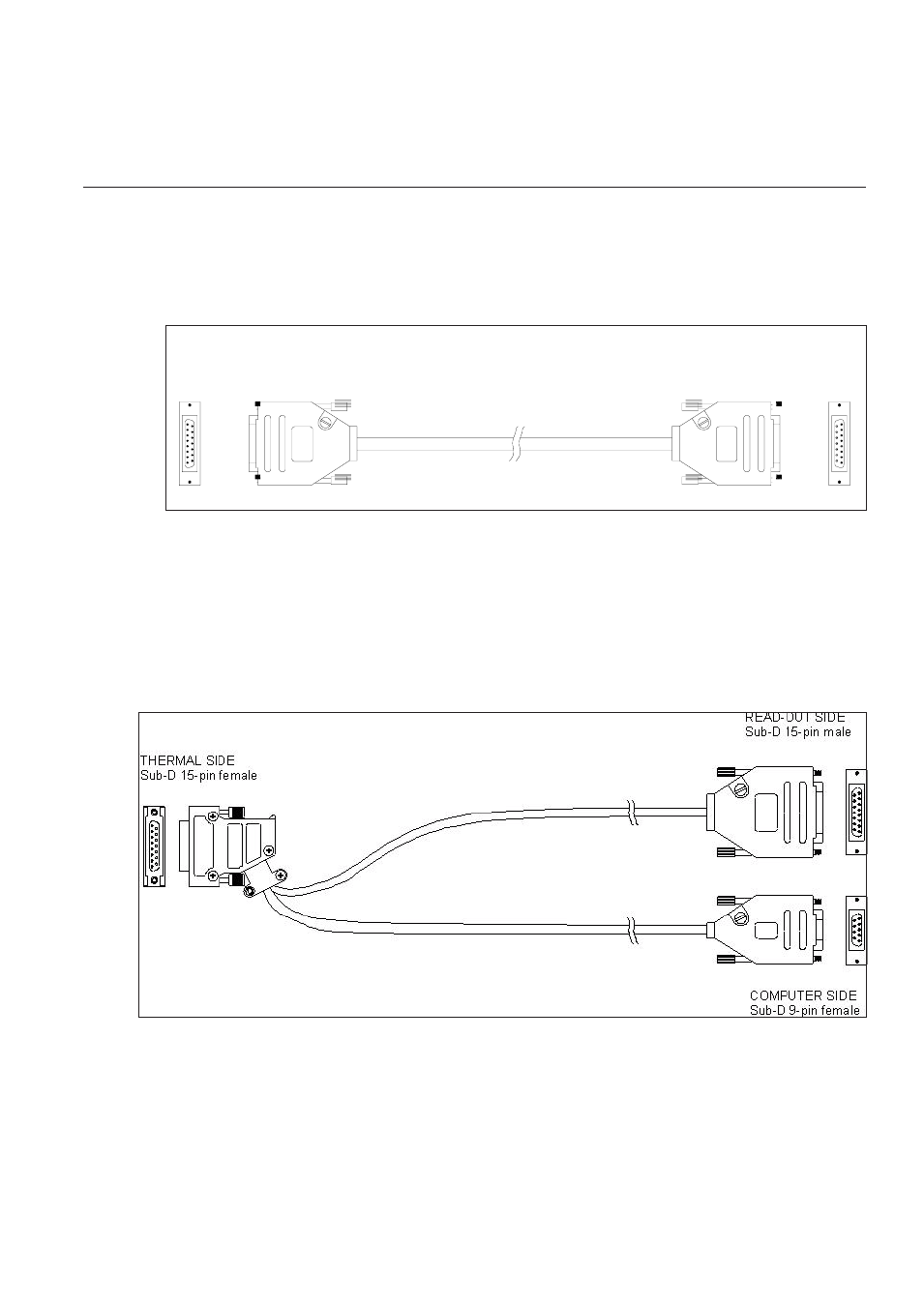

Figure 2-5: TMF/C to Read-out cable

If no digital communication is required, a split cable can be supplied to
interconnect the Brooks Microprocessor Control & Read-out Unit, the
Smart Mass Flow Meter/Controller and computer (see figure 2-5):

Length: 3 m;

part number 124-Z-893-AAA

Length: 6 m;

part number 124-Z-894-AAA

Length: 12 m;

part number 124-Z-895-AAA

Figure 2-6: TMF/C Read-out and pc

NOTE: Special cables can be supplied multidrop (RS-485) installations
are required.

For detailed information about the cable connections, see table 2-3.

Section 2: Installation
