27

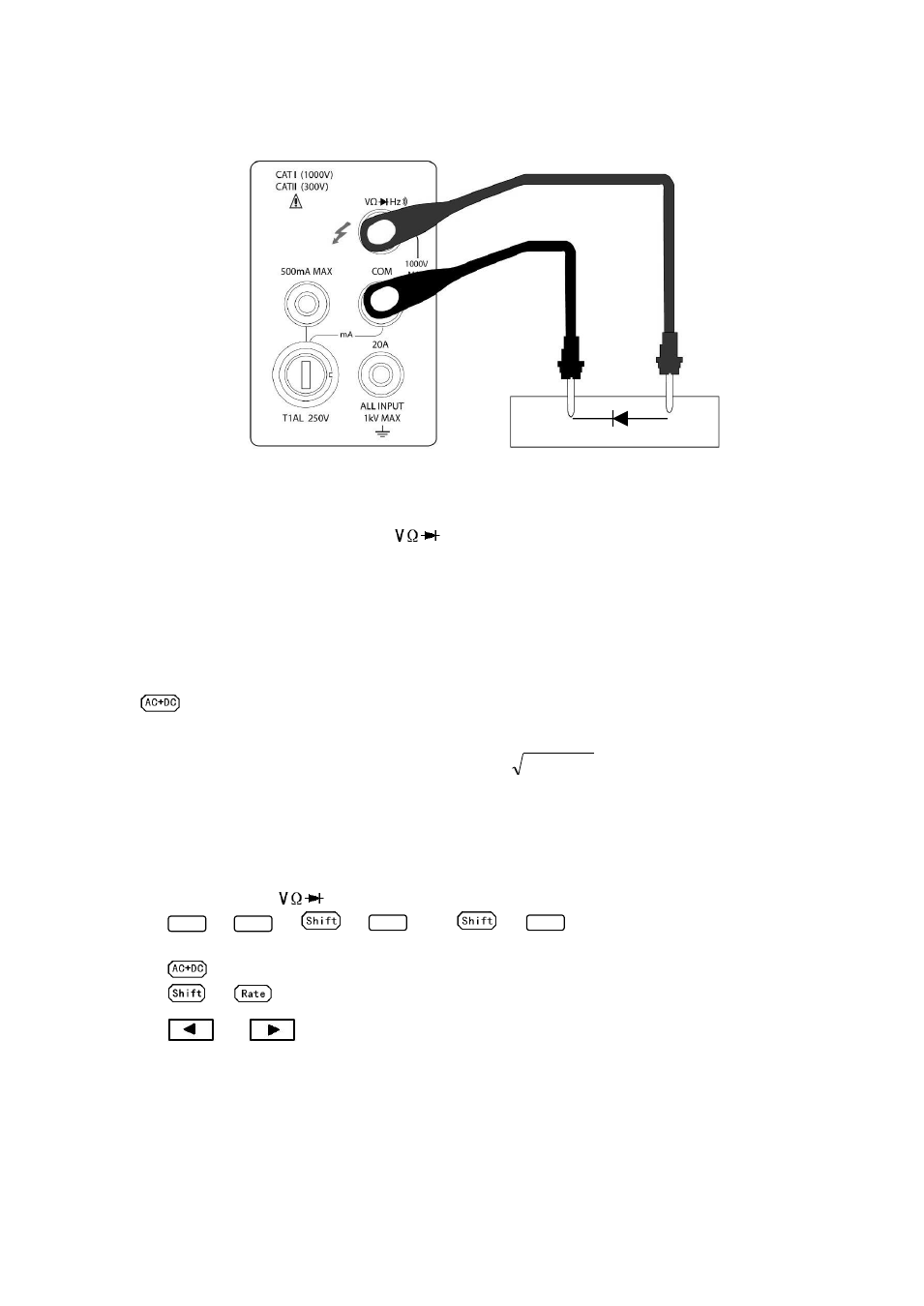

Figure 3-6

Diode Measurement

Note:

Source current flows from the

to COM terminals

3.8 Measuring True RMS AC+DC

The multimeter can measure the True RMS value of AC+DC voltages or currents (available in manual

range mode only).

When

is pressed, the multimeter will measure the dc and ac signals respectively and then

calculate and display the AC+DC RMS value by using the following formula:

2

2

)

(

ac

dc

RMS

DC

AC

3.8.1 Connections

Assuming the multimeter is under factory default conditions, the basic procedure to measure true RMA

AC+DC is as follows:

1. Connect test leads to

and COM terminals, as shown in Figure 3-7.

2. Press

,

,

→ or

→ to select a voltage or current

measurement

3. Press

for true RMS measurement function.

4. Press

+

to turn on a 2nd display

5. Press

or

to select a 2

nd

parameter available.

6. Take a reading from the display.

Diode

DCV

ACV

DCV

ACV
