7
TS-DIM Power Requirements
The TS-DIM must be powered from a dedicated 115 VAC single circuit breaker, with no
other devices connected to the power receptacle or breaker. Do not use a switched-
neutral breaker. The neutral must come directly from the neutral bus in the electric
supply panel. No other neutral circuits may be connected to this wire.
The electric supply system earth bond must connect to a driven ground rod or other
earth bonding system that complies with Article 250 of the National Electrical Code.
Failure to comply with these requirements will void the warranty.
1
2
3
Layout for H2 & H3
Wayne
H2 & H3 jumpered 1-2
Gilbarco
H2 & H3 jumpered 2-3
Settings
0 = on
1 = off
H2
J 2
H 3
H 1
J 3
SW 1
SW 2
SW 3
Pump T
ype
A B C D
Interface A B C D
Option
A B C D
LEDs

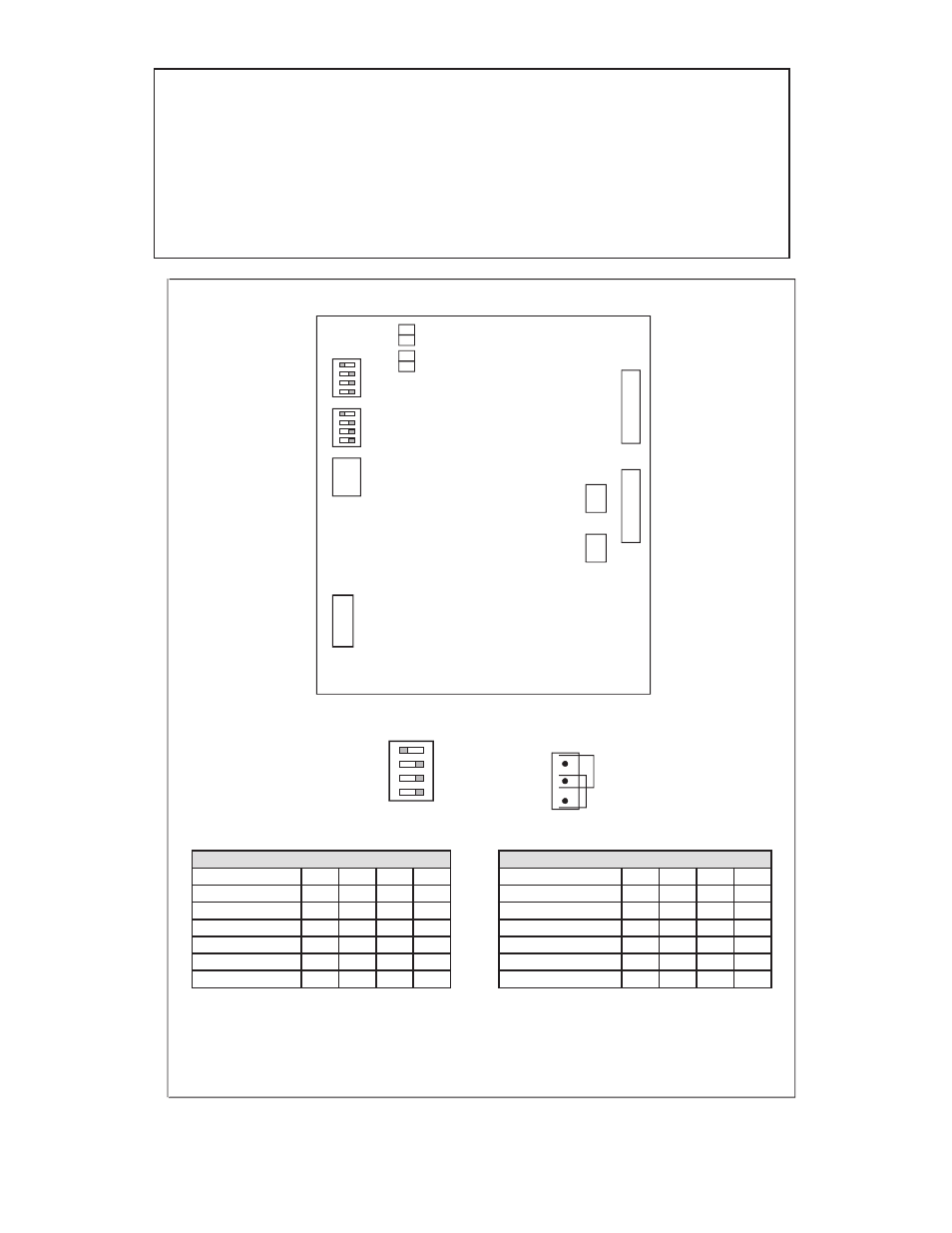

Top View of TS-DIM Adapter Board
Pump Type (SW 1)
A B C D
Non-Selected 0 0 0 0
Gilbarco 1 0 0 0
Wayne 0 1 0 0
Tokheim 1 1 0 0
Gilbarco G-site 0 0 1 0
XPIC 0 1 1 0
Options Type (J9)
Refer to Pump Specific Installation Instructions
Interface Type (SW 2)
A B C D
Non-Selected 0 0 0 0
Current Loop 1 0 0 0
RS422/RS485 0 1 0 0
TOK Standard 1 1 0 0
RS232 Full Duplex 0 0 1 0
RS232 Read Only 1 0 1 0
Rx1
Tx1
Rx2
Tx2
A B C D
off - on
Figure 3: TS-DIM Adapter Board Jumper Selections
