14
Wayne/Dresser
DBox
TS-DIM/W
TS-DIM Wayne/Dresser Adapter Cable
(P/N 600-0203)
Note: See the Wayne/Dresser DBox TS-DIM/W Connection Example Diagram below
for cable connections.

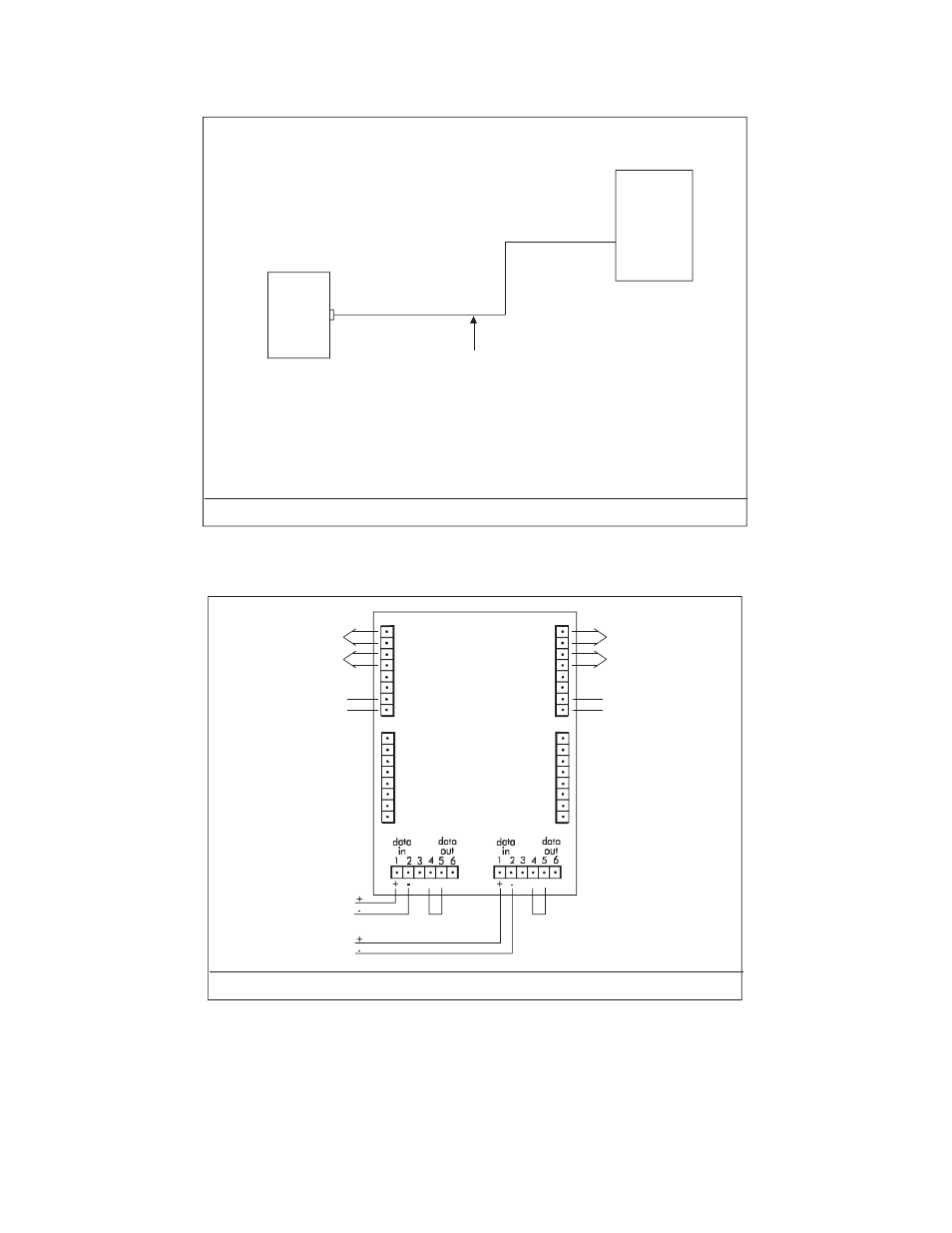

TS-DIM/W to Wayne/Dresser - Typical Installation
Wayne/Dresser DBox TS-DIM/W Connection Example
Data Lines to Dispensers
TS-DIM/W Adapter Cable
Wires Loop 1
Data Lines to Dispensers
Communication Lines
to Console/POS
Data Lines to Dispensers
TS-DIM/W Adapter Cable
Wires Loop 2
Figure 11
Figure 12
