Smart Fuel Controller Connection
Follow directions below to connect the INCON console to VeriFone’s Smart Fuel Controller (SFC). Using this interface
allows obtaining sales information for Inventory Reconciliation or Vapor Recovery Monitoring.
At this time, VeriFone only supports Gilbarco dispensers. Therefore a Gilbarco Dispenser Interface Module (DIM) cable
part number TSP-GDCBL will be required.
Note: Sites with 9 or more dispensers will require a second DIM and a second cable.

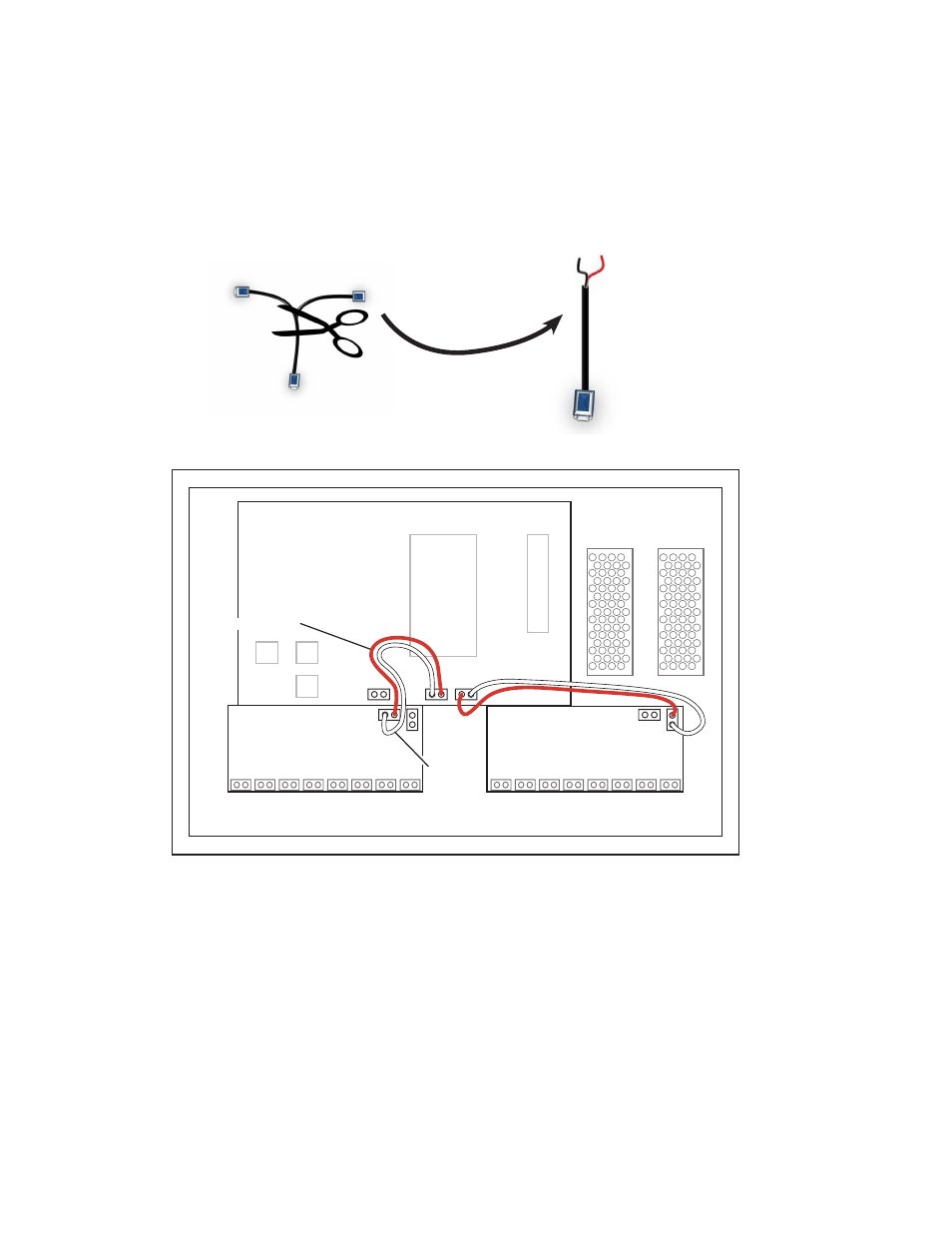

1. To begin, you will need to modify the 600-0201 cable from the TSP-GDCBL. Cut the “Y” end off and discard.
This will remove two of the DB9 connectors leaving you with an 8’ section of cable containing a Red and a
Black wire.
2. Power down the SFC and locate the current loop wire from the AUX board to the distribution board.
Dispensers 1-8 Dispensers 9-16
SFC Aux Board
SFC Distribution
Board
Current Loop Wire
(Orange Wire)
Do NOT cut
White Wire
Figure 14: Smart Fuel Controller Connection
3. Locate the middle point in the Current Loop wire and cut the negative polarity (orange) wire.
4. Connect the positive (red) wire on the 600-0201 to the negative side of the orange wire closest to the SFC
distribution board.
5. Connect the negative (black) wire on the 600-0201 to the positive side of the orange wire closest to the SFC
AUX board.
Note: Do NOT cut the white wire going from the AUX board to the distribution board.
6. Power down the TS-DIM and connect the 600-0201 cable to the RLM2 Monitor Cable Input port.
