Section 5: Serial Transport & Control Methods VN-MATRIX User Guide
Page 90 I458GB issue 6
Setting-up a Serial Data Stream
Login to the Web Interface (see page 41).
From the Device List page click on the required encoder device.

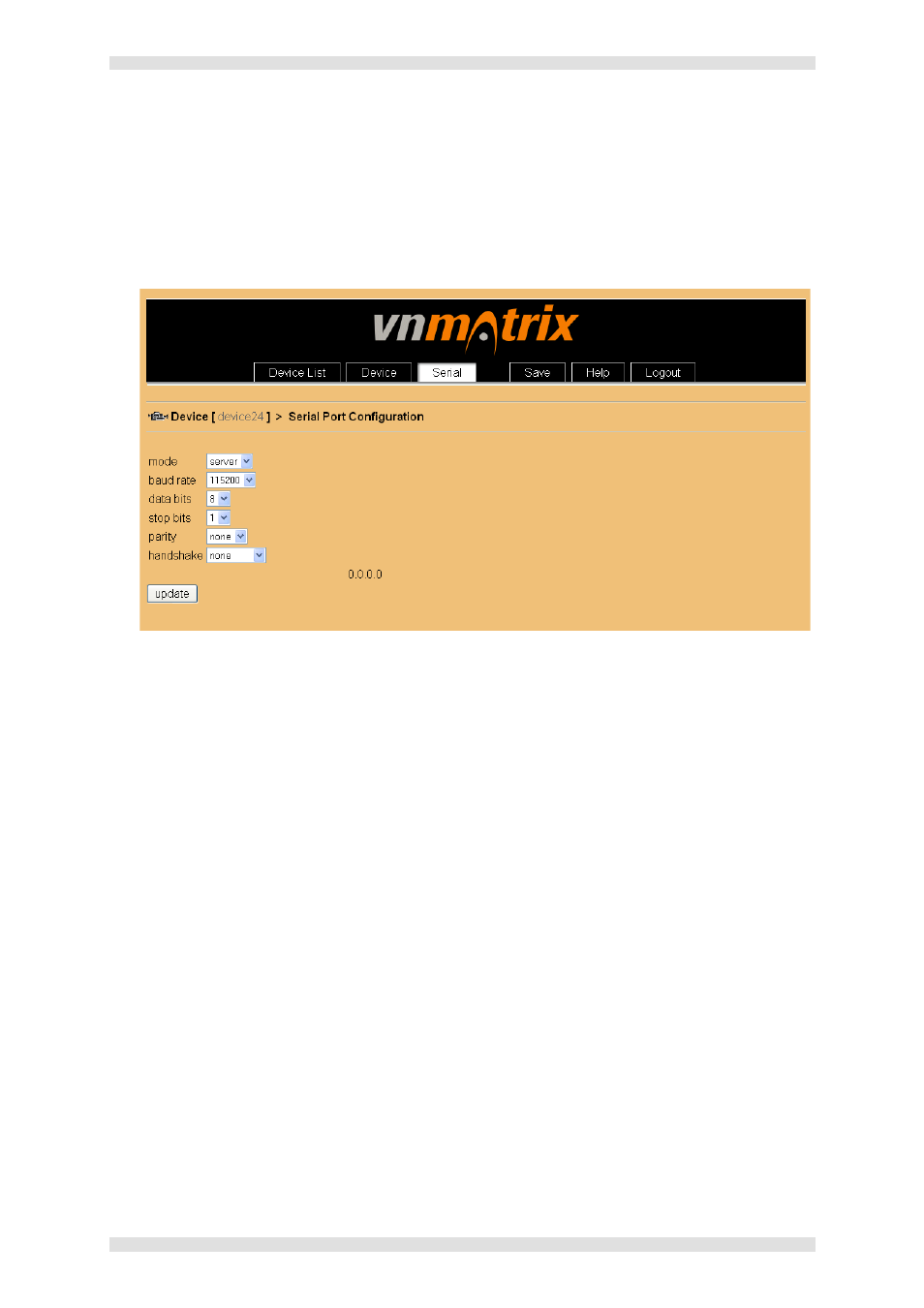

From the Device page click the Serial tab to display the following:
Using the mode listbox select the server option.
Change the other settings (e.g. baud rate) as required, then click the Save tab.
Return to the Device List and do the same for the decoder device.
IMPORTANT: No data will be transported until the decoder ‘connects’ to the encoder stream.
