Extron Electronics VN-MATRIX User Guide User Manual
Page 52

Section 3: System Configuration
VN-MATRIX User Guide
Page 52
I458GB issue 6
p

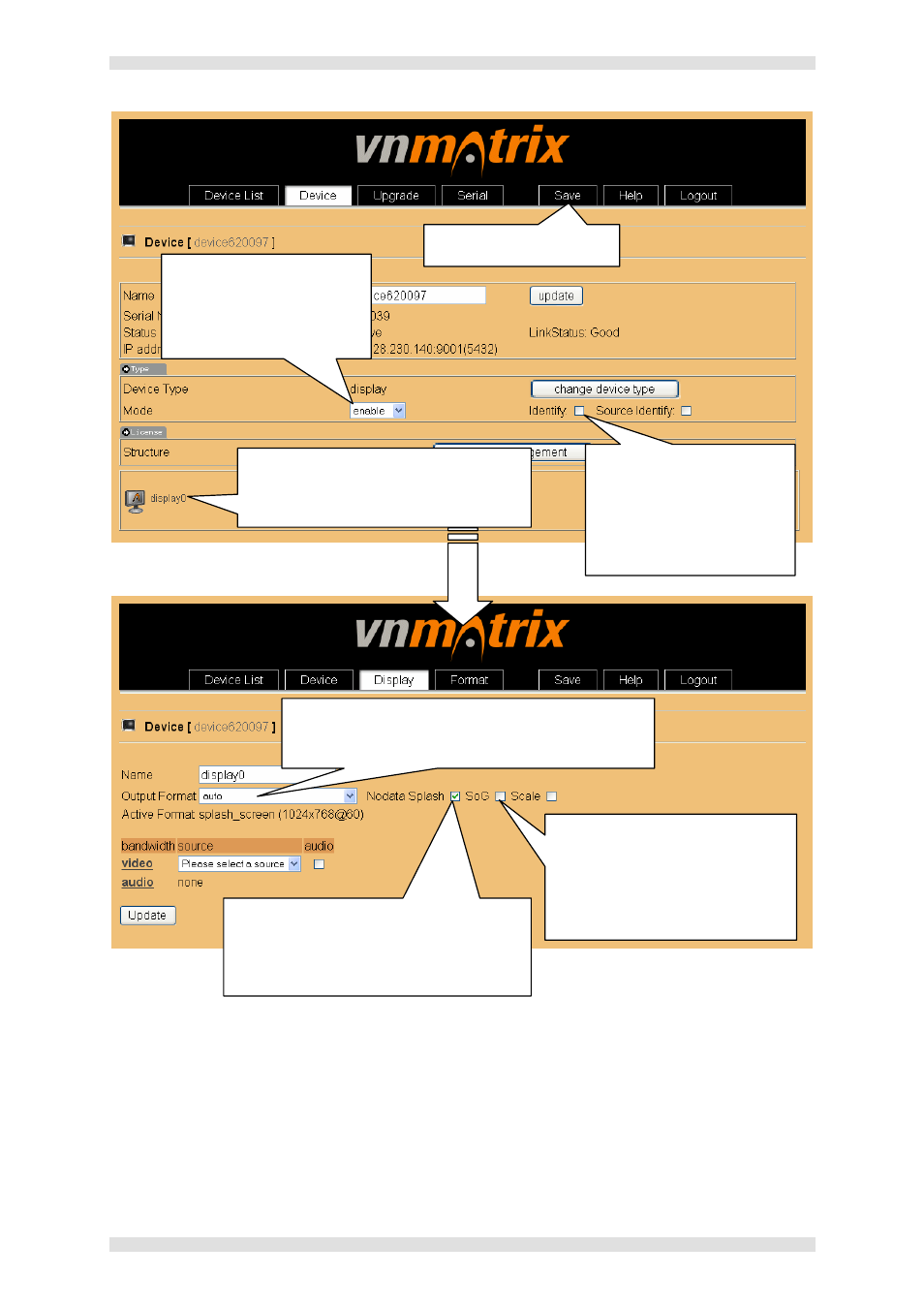

Check that the Mode
field is set to enable.
For more information, see
‘Device Mode’ on page 54.
q
Click the Save tab.
HINT: To help identify this device
during set-up or troubleshooting,
tick the Identify box to display the
device name on the local monitor
(where connected).
For more information, see
‘Identify Mode’ on page 54.
r
Click the display0 icon.
The Display page will appear…
s
Check that the Output Format is set to auto.
This forces the output format to be the same as the
chosen source.
s
If the source type is RGsB
(sync on green), ensure that
SoG is ticked. Otherwise it
should be left unticked.
This forces the output format to be
the same as the chosen source.
HINT: The Nodata Splash option determines how
the display output behaves if no source is selected
or if the source stops streaming for some reason.
For more information, see ‘Nodata Splash Mode’
on page 49.
