Section 3: System Configuration

VN-MATRIX User Guide

Page 44

I458GB issue 6

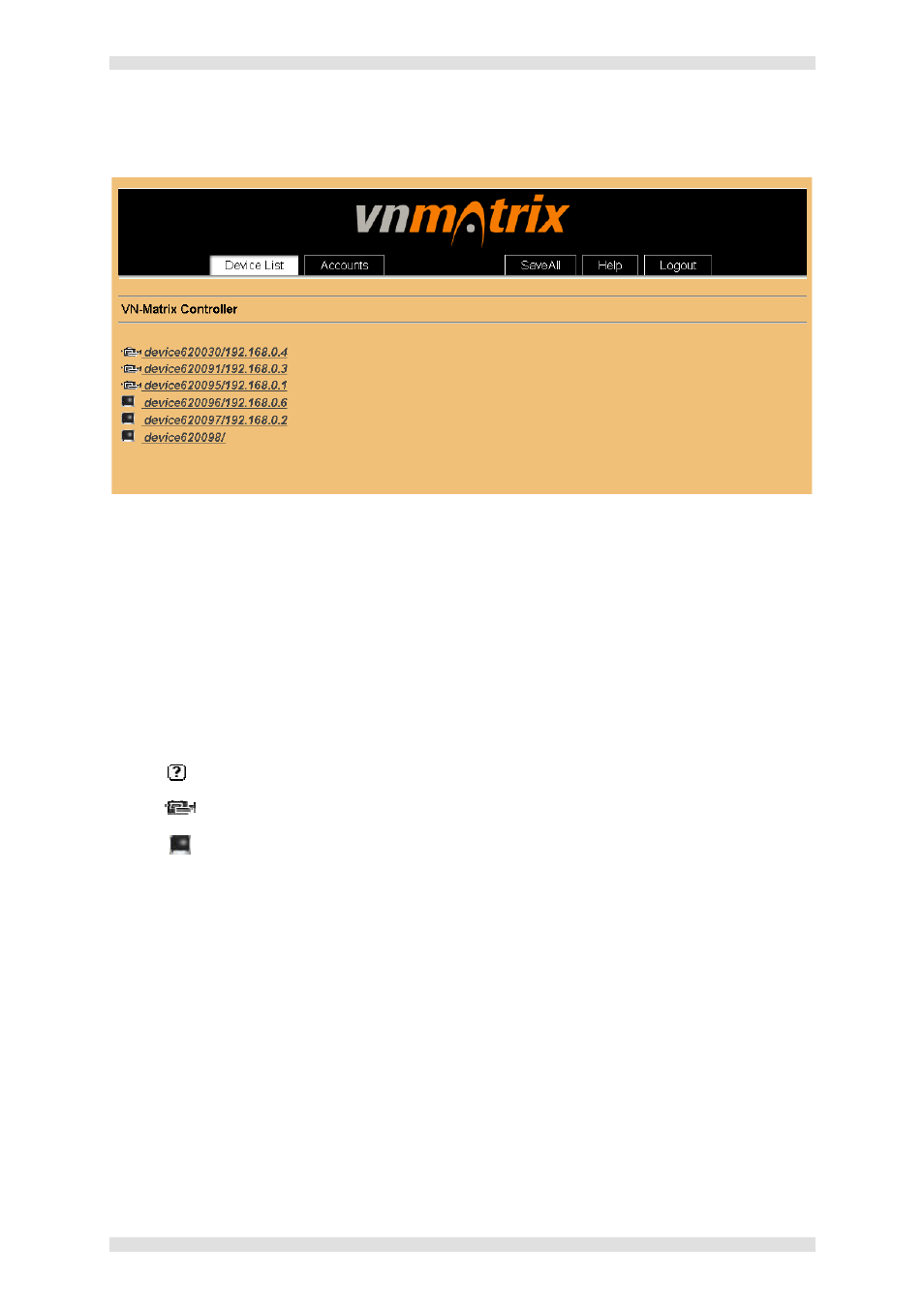

The Device List Page


This page lists all VN-MATRIX devices detected on the network.

NOTE: If devices are added after this page is displayed they will not automatically appear on this list.
You will need to refresh the list by clicking the Device List tab, or by clicking the browser
Refresh/Reload button.


Once a VN-MATRIX device has been detected and been listed on the Device List page, an entry will
be displayed even if the device is subsequently disconnected. All valid devices are listed by device
name and followed by their current IP address. ‘Missing’ devices are easily identified by the lack of an
IP Address. In the above example, the last device in the list (device 620098) is not currently available
(e.g. may be disconnected from the network or powered-down).

The current configuration status of each device is also identified by an icon:

unconfigured

configured as an encoder (source)


configured as a decoder (display)

In a new system, all VN-MATRIX devices will typically be in an unconfigured state. The remainder of
this section will guide you through the process of configuring each VN-MATRIX as either an encoder
(source) or decoder (display).
