Section 2: Installation & Basic Setup Procedures

VN-MATRIX User Guide

Page 36

I458GB issue 6

Network Connection


CAUTION: Do not proceed with connecting VN-MATRIX to an existing network until it is correctly
configured using the procedure in Stage 1 (See pages 32 to 34). Incorrect connection or configuration
may cause disruption to other network users.

Typically, the VN-MATRIX will connect to convenient network point on an existing in-house network.
Use a standard CAT 5E or CAT 6 (or better) patch cable for this purpose. A patch cable is not
supplied with the VN-MATRIX but is readily available in a variety of lengths from all good computer
suppliers.

If a convenient network point is not available it will be necessary to have one installed – please
consult the IT/Network Administrator or Building Facilities Manager for advice. Alternatively, the VN-
MATRIX and source computer can ‘share’ a connection by using a switcher. Hubs are not suitable for
use with VN-MATRIX as they restrict bandwidth.

For normal VN-MATRIX operation use Network Port I only.

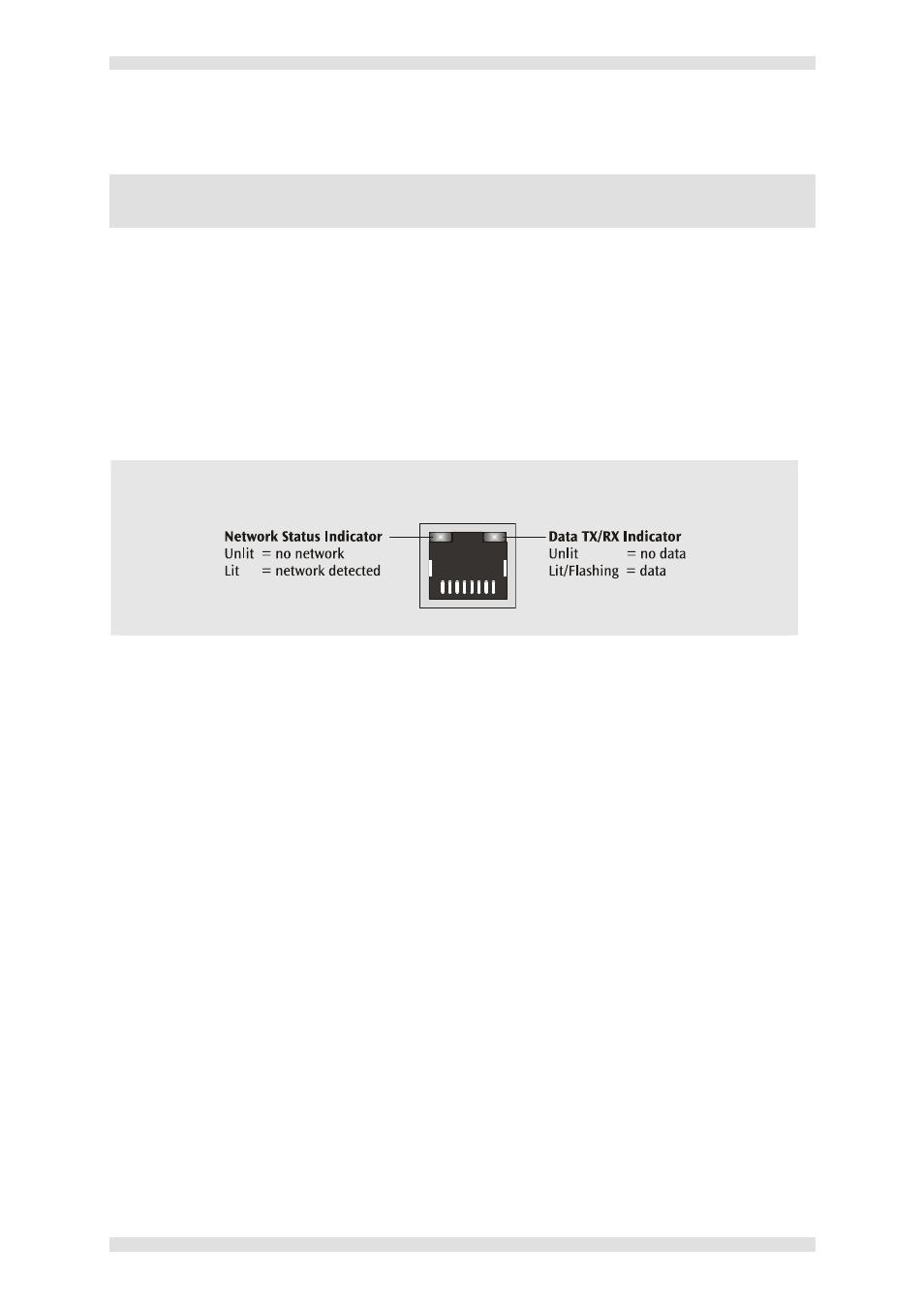

HINT: With the VN-MATRIX powered and connected to a network the Network Status Indicator
(next to the network connector) should be lit:
