VN-MATRIX User Guide

Section 5: Serial Transport & Control Methods

I458GB issue 6

Page 87

Overview


Routing of external serial (RS-232) communications can be achieved between any VN-MATRIX units
on the same network.

Serial traffic can be unidirectional as part of a source stream (encoder to decoder) – Data Stream
Mode - or bi-directional and independent of any source stream – Passthrough Mode.

In addition, serial commands can be sent via any VN-MATRIX device to the VN-MATRIX controller,
allowing dynamic control of system parameters – Remote Control Mode.

Data Stream Mode


In this mode, data received by an encoder is transported to the decoder, along with video and audio,
as part of the source stream. Data transport in this mode is unidirectional and is capable of being
recorded (and played back) by VN-RECORDER.

VN-MATRIX

VN-MATRIX

(encoder)

(decoder)

NETWORK

TCP

RS-232

RS-232

TCP

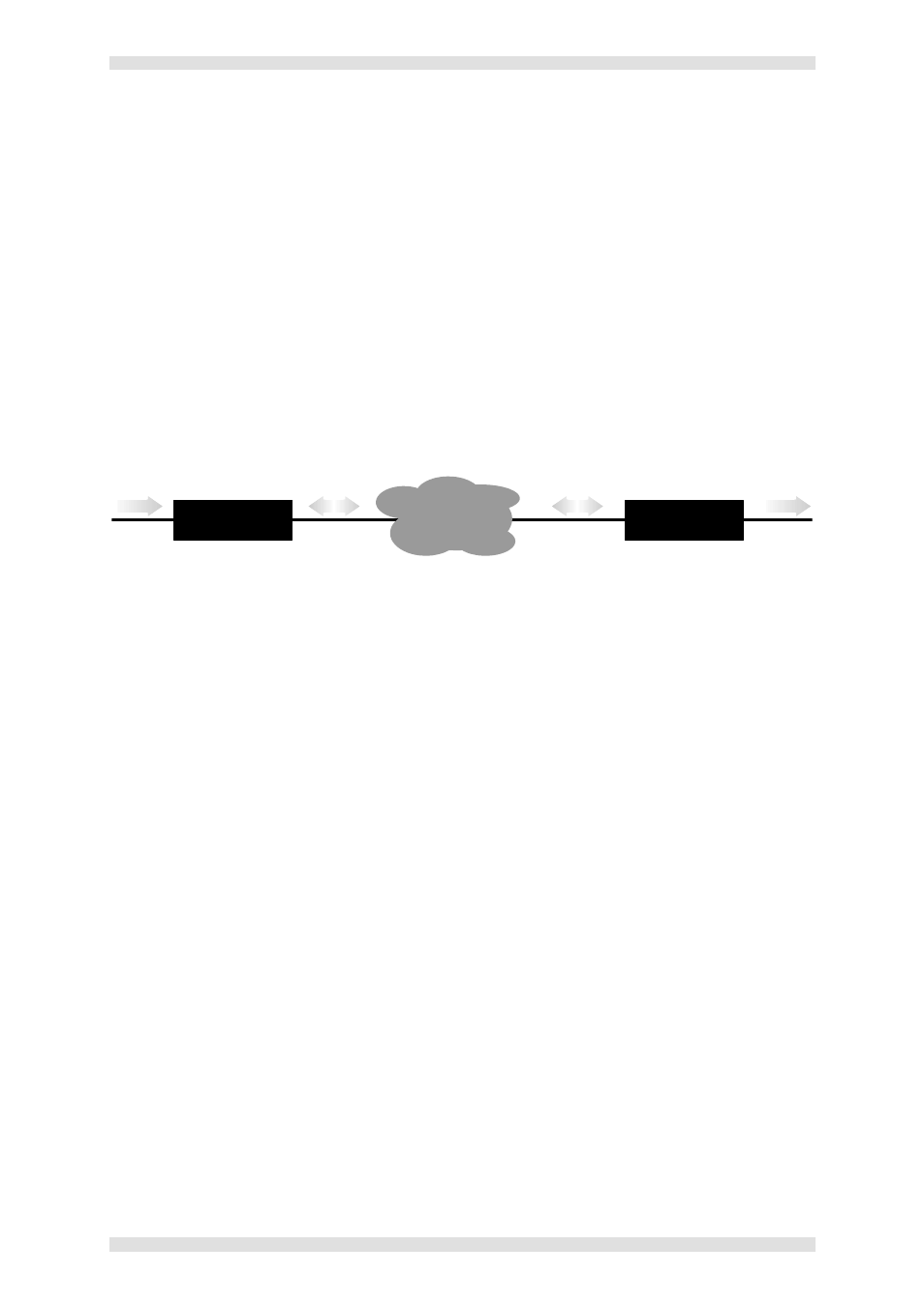

Data input to the encoder is sent to the
decoder as part of the source stream

along with video and audio

Both units are set to serial Server mode



Serial ports on each VN-MATRIX need not share a common baud rate. However, where a large
amount of data is sent from a high speed to a low speed data link, some form of handshaking/flow
control may be required to prevent buffer overflow on the output device. Standard flow control
methods are fully supported.

IMPORTANT: No data will be transported until the decoder ‘connects’ to the encoder stream.

To set up a serial data stream, see page 90.
