Page 40: Es3401 vn-matrix (decoder)
Section 2: Installation & Basic Setup Procedures
VN-MATRIX User Guide
Page 40
I458GB issue 6

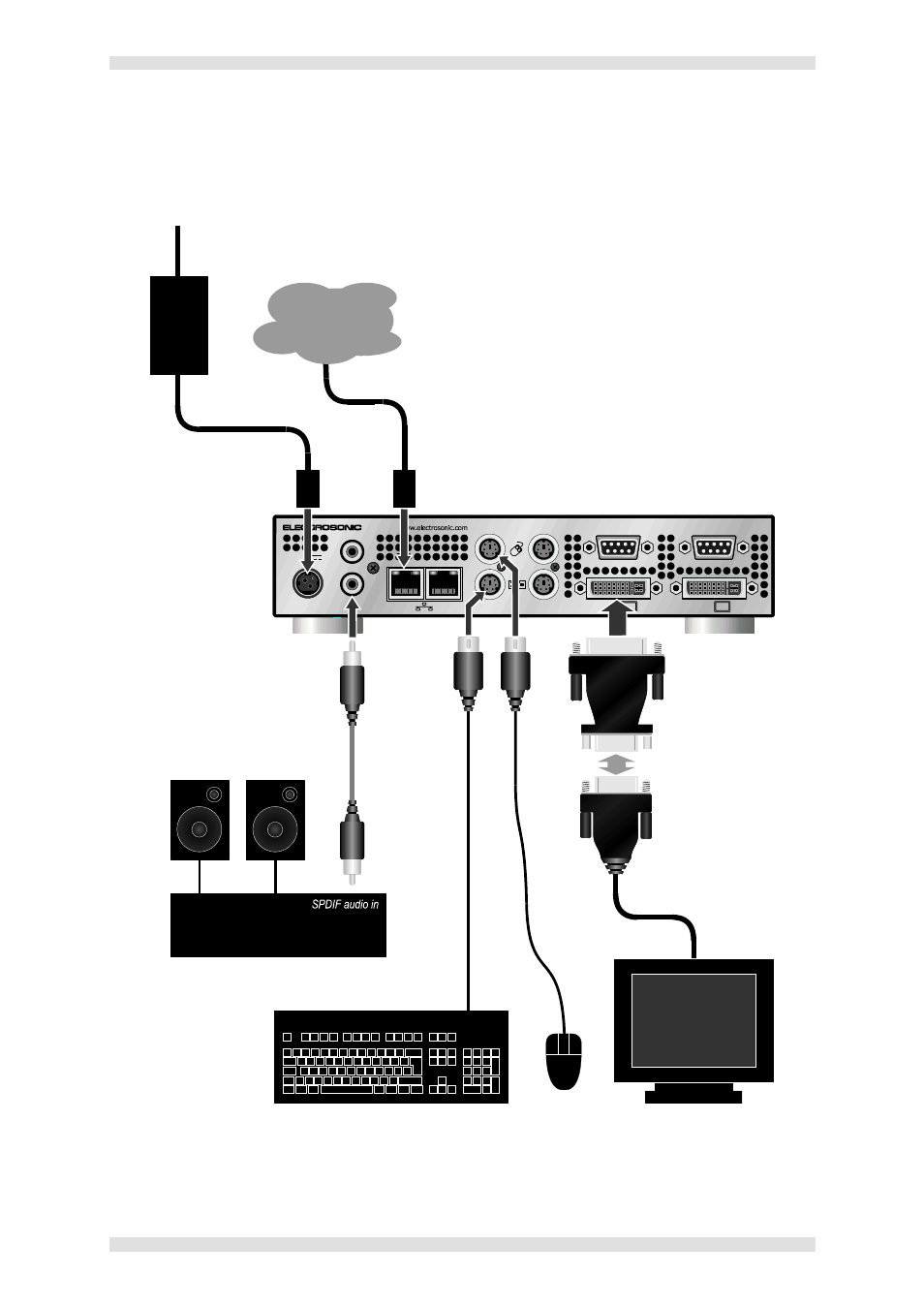

Connecting an Analog Display
12V DC
REG
COM 1
COM 2
IN
OUT
PERIPH
PC
OUT
DVI-I
IN
DVI-I
I
II
6A MAX
ES3401
DIGITAL
AUDIO
ES3401
VN-MATRIX
(Decoder)
DVI-A to
15pin HD-type
Adapter
ANALOG
DISPLAY
NETWORK
MAINS
SUPPLY
PSU
AMPLIFIER
Phono
to
Phono
NOTE: VN-MATRIX provides both an analog and digital output signal regardless of
the original source format.
