Section 2: Installation & Basic Setup Procedures

VN-MATRIX User Guide

Page 32

I458GB issue 6

Network Communications Setup


To establish a serial communications link…

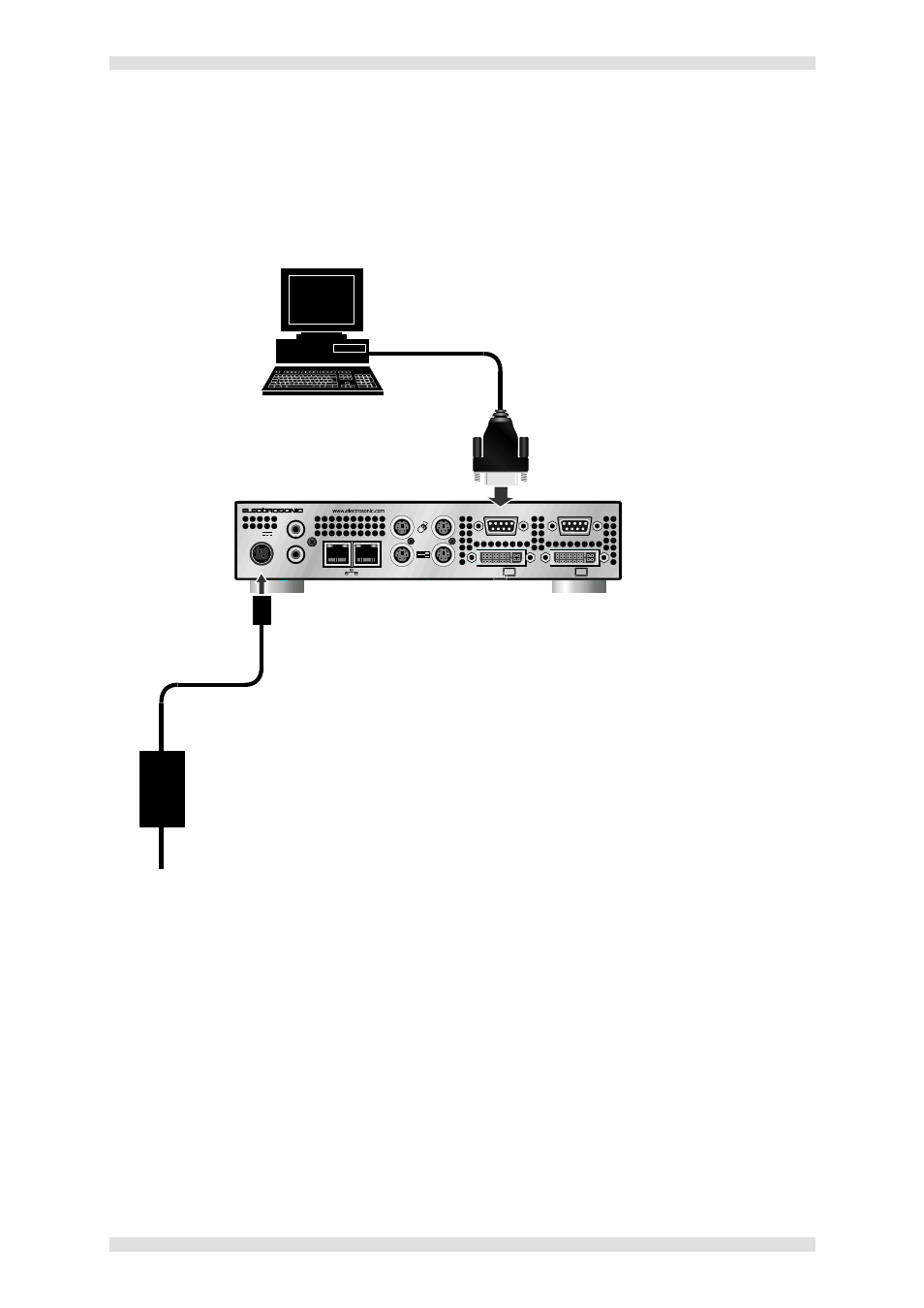

Using a null modem type serial cable, connect the serial port of a PC/laptop to the COM1 serial

port on the VN-MATRIX to be configured:

12V DC

REG

COM 1

COM 2

IN

OUT

PERIPH

PC

OUT

DVI-I

IN

DVI-I

I

II

6A MAX

ES3401

DIGITAL

AUDIO

ES3401

VN-MATRIX

MAINS

SUPPLY

PSU

CONFIG

PC


On the PC/laptop run a terminal emulation program such as HyperTerminal, with the following

comms settings:

Baud

rate: 115200

Data

bits:

8

Parity:

None

Stop

bits:

1

Flow

control: None


NOTE: HyperTerminal is supplied with all Windows operating systems.
