Extron Electronics TLP 350MV User Guide User Manual
Page 41
5.

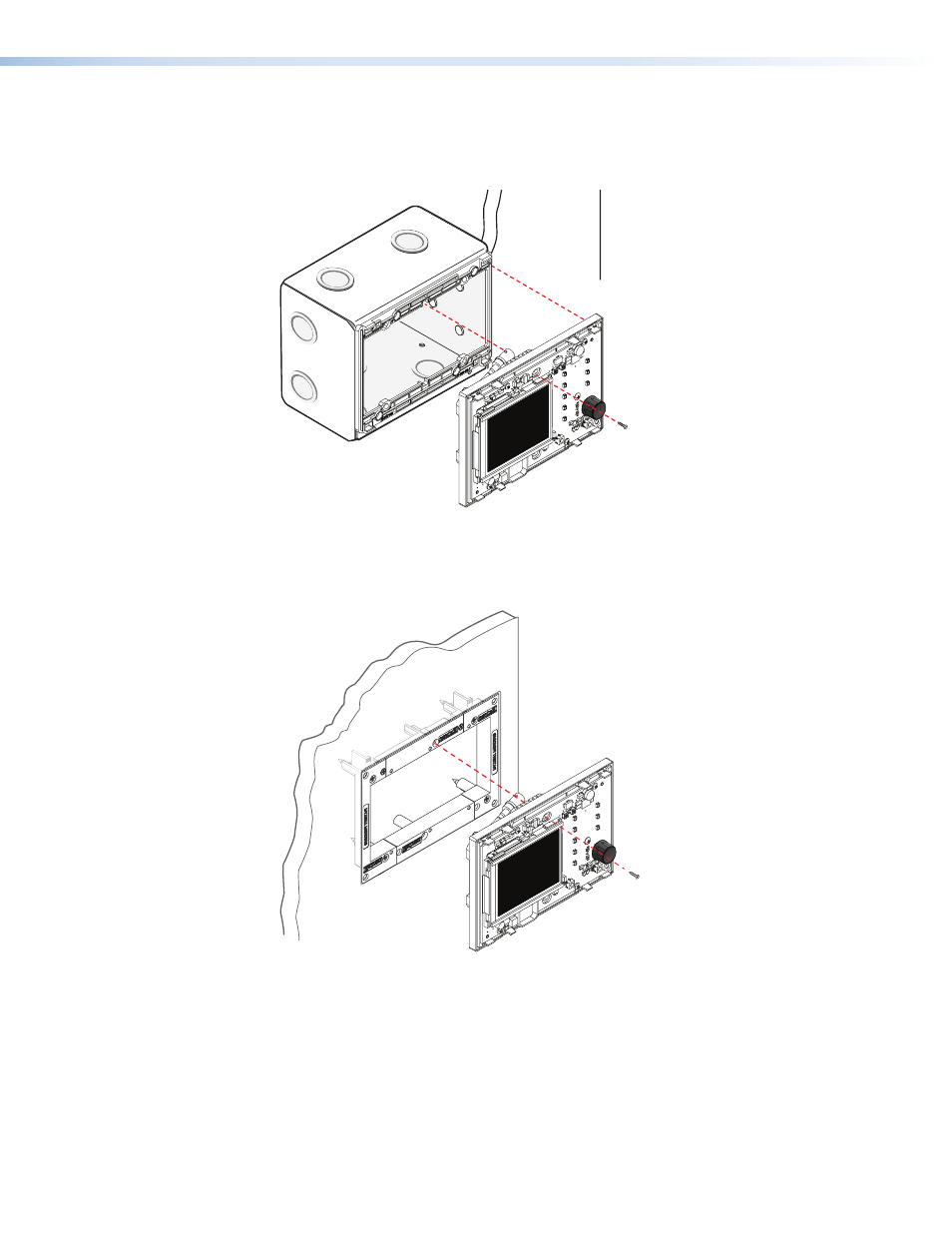

If mounting to a wall box, insert the TLP 350MV into the wall adapter plate. Two clips
at the top and two clips at the bottom audibly click as the panel moves into place. You
should also secure the unit using the two screws provided (one top center, the other
bottom center).
Screws (2)
Clips (4)
Figure 38.
Inserting the TLP 350MV into a Wall Box with a Wall Adapter Plate
If you are mounting the unit to a mud ring, insert the TLP 350MV directly into the mud
ring. Secure the unit using the two screws provided (one top center, the other bottom
center).
Mud Ring
Screws (2)
Figure 39.
Inserting the TLP 350MV into a Mud Ring
6.
Do not replace the bezel at this time as you will need access to the
).
TLP 350MV • Mounting
35
