Extron Electronics TLP 350MV User Guide User Manual
Page 27
3.
Depending on which option was selected in step 2, GUI Configurator opens to a new
or existing project. The initial screen is divided into a series of panes offering a range
of tools that can be used to design or modify the project. For full details on how to use
these tools, consult the help file (in the Help menu click on Contents or press the

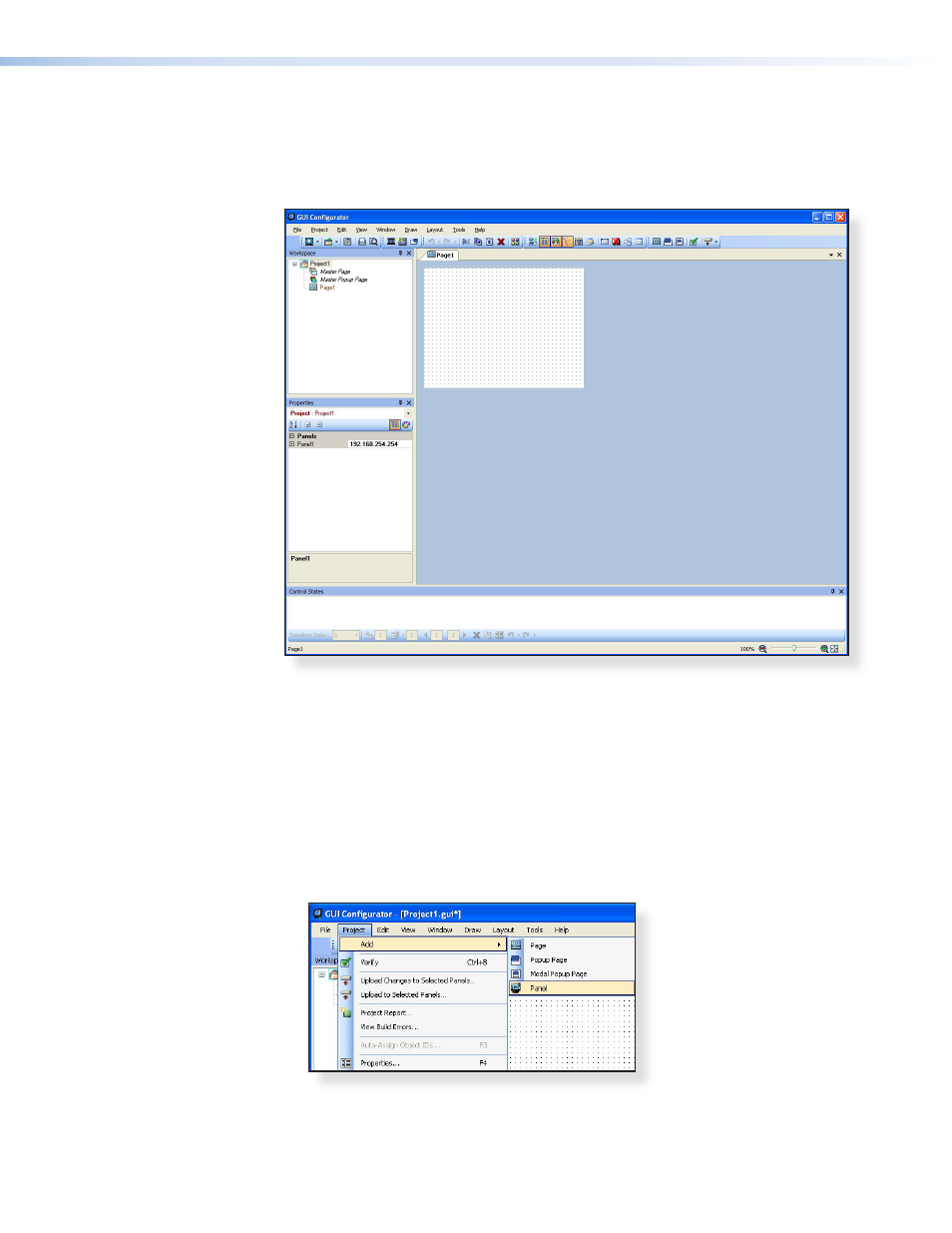

Figure 26.
GUI Configurator Main Screen
4.
To save the project, select Save Project from the File menu. The project file is saved.
If this is the first time saving the project file, the Save As dialog box appears. If the
Save As dialog box appears:
a.
Browse for the location where the project file is to be saved.
b.
Enter a file name for the project.
c.
Click Save.
5.
The project can be uploaded to one or more TouchLink Panels. To add a panel:
a.
From the Project menu, select Add > Panel:
Figure 27.
Add a TouchLink Panel (a)
TLP 350MV • Configuration Software
