Mounting
This section describes the procedures for mounting the TLP 350MV, including:
z z
Desktop Mounting
z z Wall Mounting
Desktop Mounting
The TLP 350MV can be mounted in a desktop or table, using the optional SMB-303
surface mount box (part number ) or the SMB-303 with the SMA-1 swivel mount adapter
(part number ). Follow the instructions provided with the mounting box and the adapter.
Wall Mounting
Decide where to mount the TLP 350MV and whether to use a 3-gang mud ring or a 3-gang
UL-certified junction box. Follow these instructions:
Using a Mud Ring
1. Use the template provided with
the mud ring to mark the wall. If
you use the mud ring provided, the
hole is 5.67 inches (14.4 cm) wide x
2.95 inches (7.5 cm) high.
2. Cut a hole in the wall. To avoid
making the hole too big, cut inside
the lines you marked in step 1.
3. Test the fit by inserting the mud
ring into the hole in the wall. The
locking arms on the mud rings
should fit easily into the hole and
the flat portion should rest flush
against the wall. There should not
be any noticeable play or movement
of the mud ring in the opening. If
necessary, use a rasp or file to enlarge the hole so that the mud ring fits.
4. Insert the mud ring into the hole in the wall.
5. Use a screw driver to turn and tighten the locking arms until they clamp the mud ring to
the mounting surface. Do not overtighten.

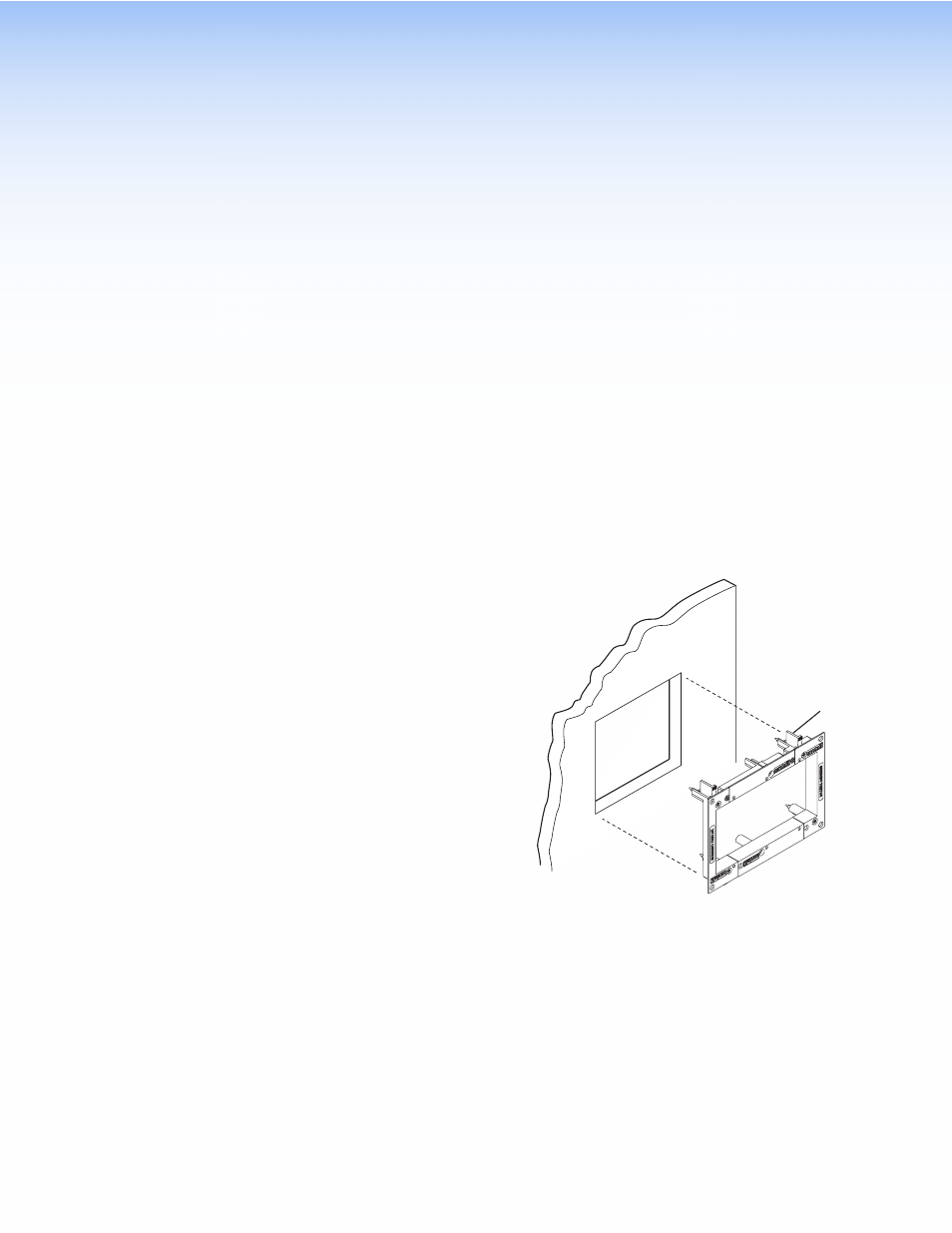

Locking Arms (4)
TLP 350MV • Mounting 32
