Using Global Configurator
NOTE: To configure the TLP 350MV, use Global Configurator version 3.0.4 or later.
This section provides an overview of the Global Configurator program. For complete
information about the program, consult the Global Configurator help file (click on
Contents in the Help menu or press the
This section describes how to set up Global Configurator project with an IPL 250. Setting
up a project with another IP Link product is similar but you should consult the Global
configurator help file for exact information about the product you are using.
1.
Double click on the GC3 desktop icon. The Global Configurator 3 Start Options box
opens.

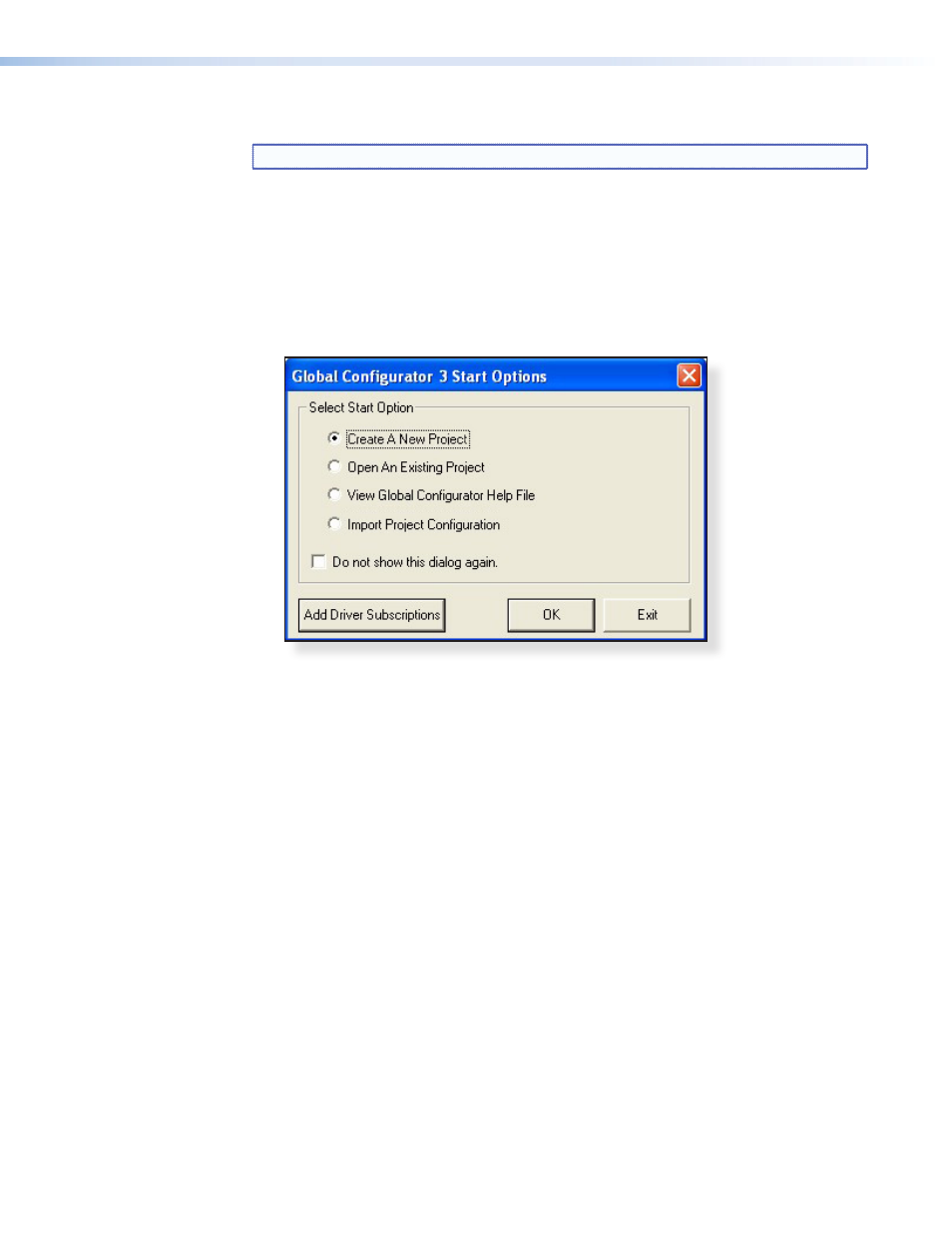

Figure 29.
Global Configurator 3 Start Options
TLP 350MV • Configuration Software
23
