Page 25
2.
You can chose to:
z
z
Start a New Project — Clicking OK opens a dialog box that offers a choice of
project options.

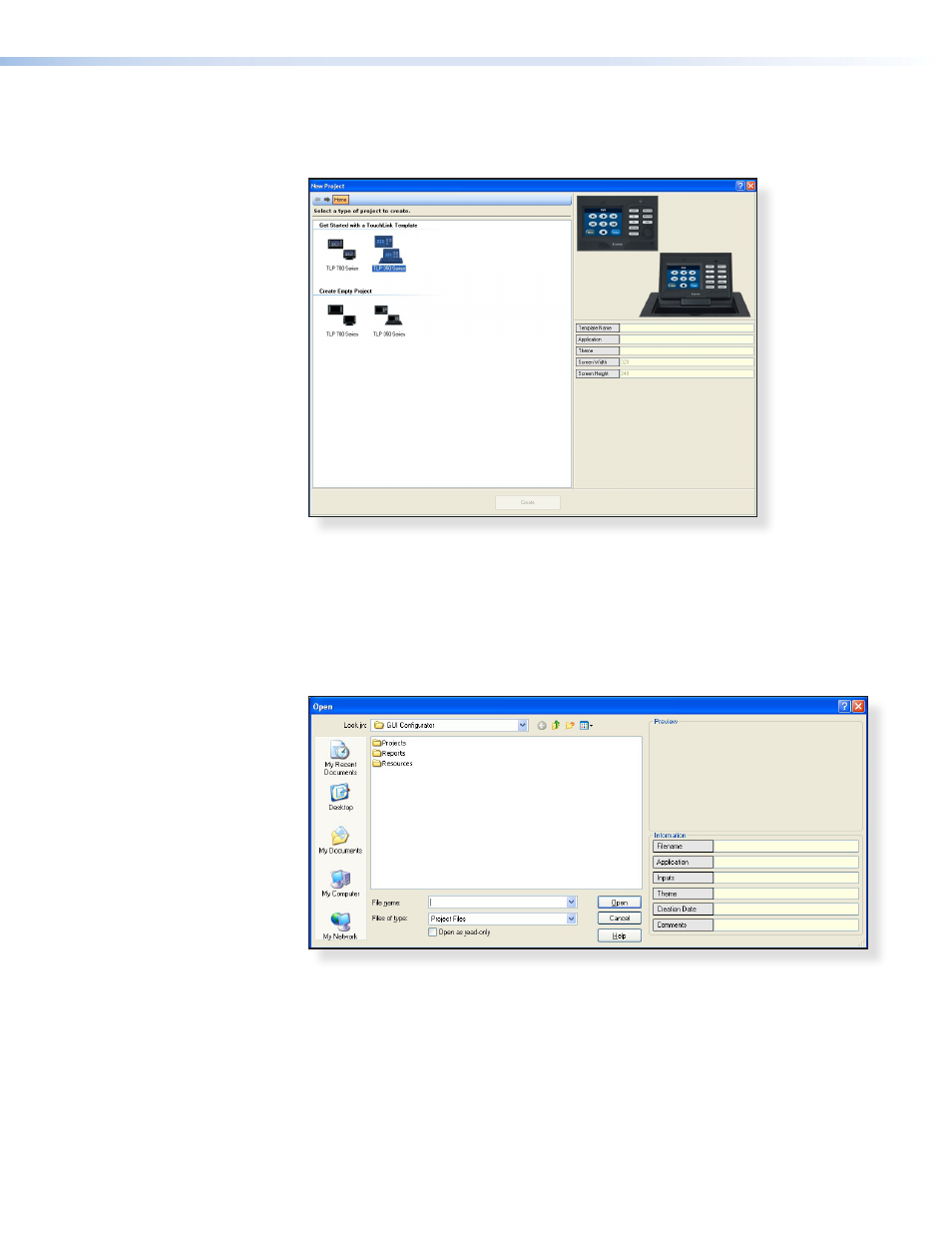

Figure 23.
GUI Configurator New Project Dialog Box
A series of icons offer you the choice of creating a project with a template or
without a template and allow you to select the size and type of Touchlink Panel. If
you are creating a project from an existing template, you can use the factory-loaded
templates or you can select a template that you have previously created.
z
z
Open an Existing Project — Clicking OK opens a dialog box that allows you to
navigate to an existing project for modification.
Figure 24.
GUI Configurator Dialog Box to Open an Existing Project
Navigate to the existing file and select it. A preview with information about the file
appears in the pane on the right.
If you are working on the project, leave the Open as read-only box
unchecked.
Click Open to open the file. The project opens in GUI Configurator.
TLP 350MV • Configuration Software
19
