7.
The Add TouchPanel dialog box opens.

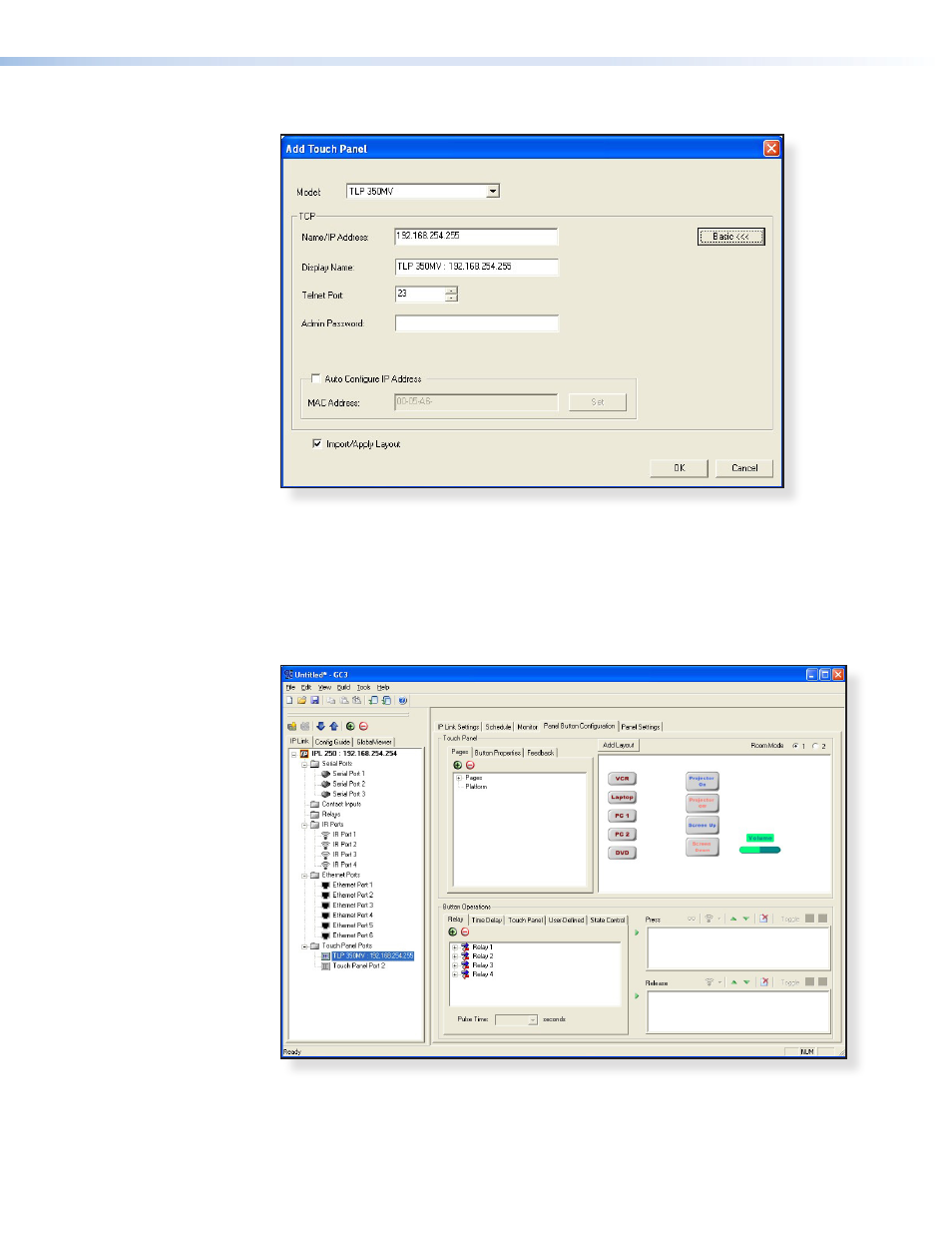

Figure 34.
Add TouchPanel Dialog Box
a.
Ensure the TouchLink Panel model is selected from the drop-down menu and enter
the IP address.
b.
Set the Telnet Port (usually 23) and, if necessary, enter the password.
c.
Check the Import/Apply Layout box and click OK.
8.
The window now shows the GUI from the TouchLink Panel.
Figure 35.
Touchpanel GUI Loaded Onto Global Configurator 3
9.
Use Global Configurator to associate functions with the screen elements designed in
GUI Configurator (see the Global Configurator help file).
TLP 350MV • Configuration Software
27
