TLP 350MV Rear Panel Features and Connections
12
11
10

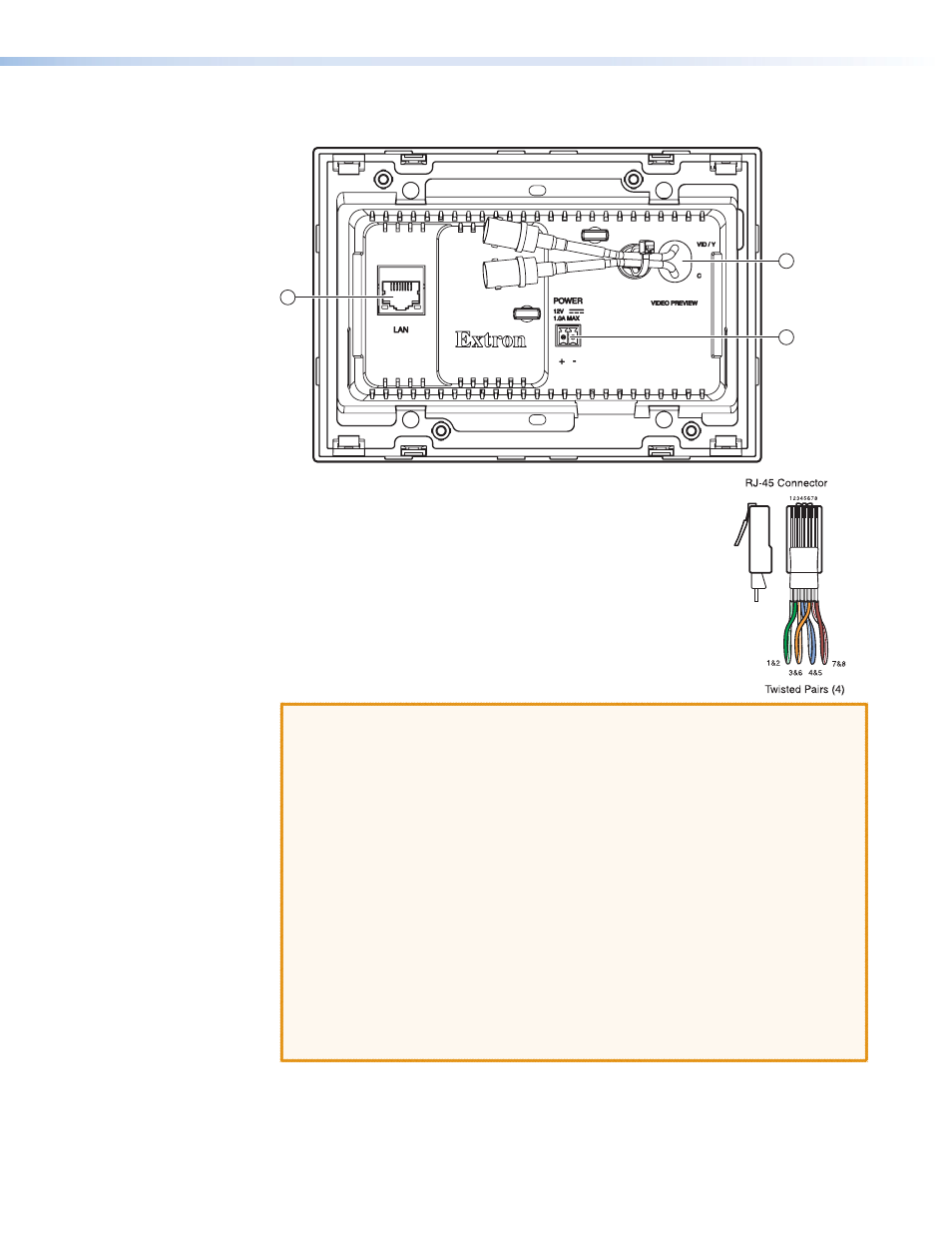

Figure 5. Rear Panel Features
j
Network connector — the TLP 350MV connects to an Ethernet
LAN using a twisted pair cable, terminated with an RJ-45 connector
(see the figure at right).
Extron recommends using a Power over Ethernet (PoE) power
supply. Use a straight-through Ethernet cable to connect the
power supply to a switch or router. This cable carries network
information from the switch or router to the power supply input. A
second straight-through cable carries the network information and
48 VDC from the power supply to the TLP 350MV.
CAUTION: Always use a power supply supplied or specified by Extron. Use of an
unauthorized power supply voids all regulatory compliance certification
and may cause damage to the supply and the end product.
Extron power supplies are certified to UL/CSA 60950-1 and are classified
as LPS (Limited Power Source). Use of a non-LPS or unlisted power
supply will void all regulatory compliance certification.
Unless otherwise stated, the AC/DC adapters are not suitable for use in
air handling spaces or in wall cavities. The power supply is to be located
within the same vicinity as the Extron A/V processing equipment in an
ordinary location, Pollution Degree 2, secured to the equipment rack
within the dedicated closet, podium or desk. Power over Ethernet (PoE)
is intended for indoors use only. No part of the network that uses PoE
can be routed outdoors.
The installation must always be in accordance with the applicable
provisions of National Electrical Code ANSI/NFPA 70, article 75 and the
Canadian Electrical Code part 1, section 16. The power supply shall not
be permanently fixed to building structure or similar structure.
TLP 350MV • Panels and Cabling 6
