Page 10
Panels and
Cabling
This section of the user guide describes:
z
z
TLP 350MV Front Panel Features
z
z
TLP 350MV Rear Panel Features and Connections
TLP 350MV Front Panel Features
1
4
5
6
2
3

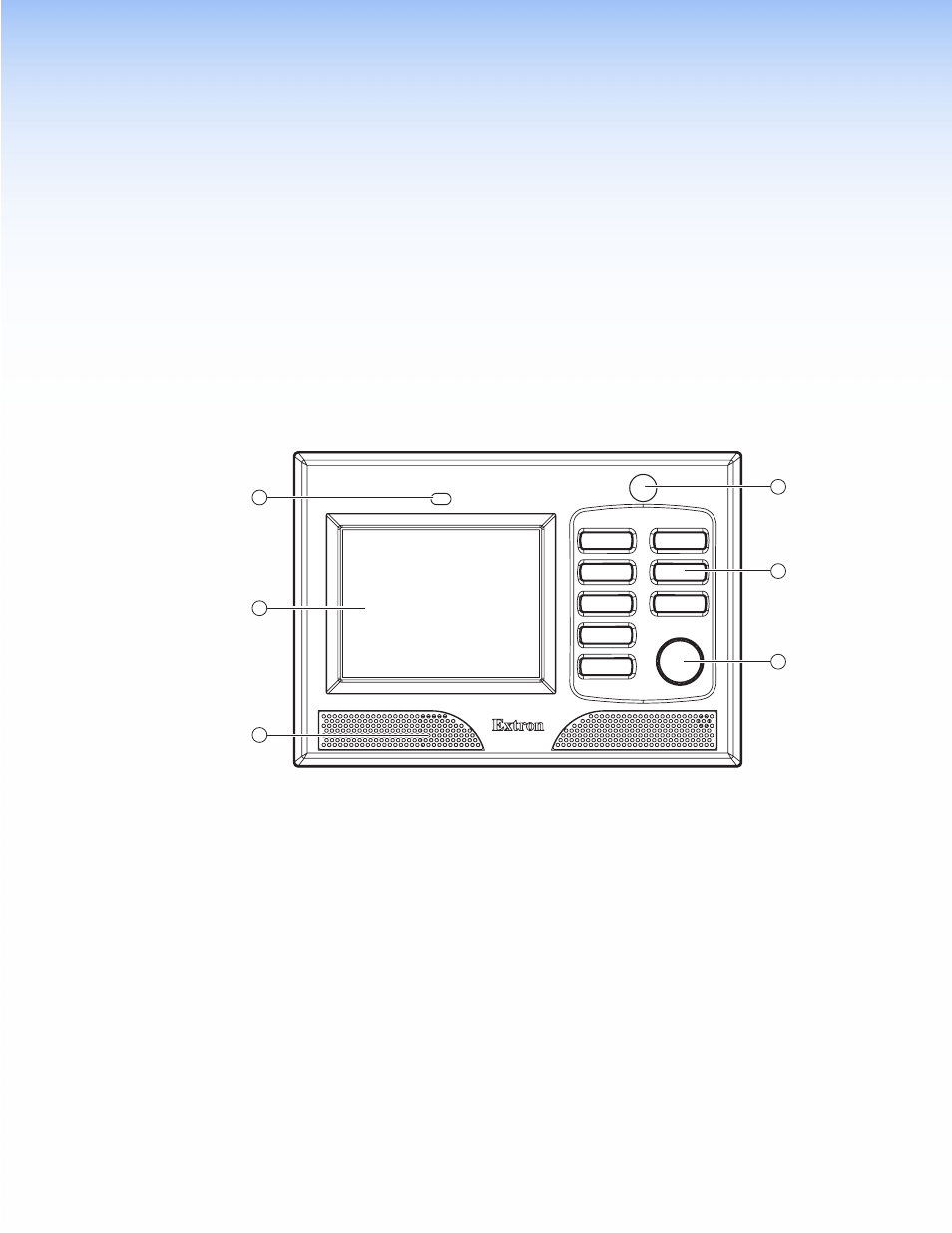

Figure 2.
Front Panels Features
a
Light sensor — monitors the level of ambient light and adjusts the screen brightness
and button backlighting.
b
3.5 inch LCD screen — provides a graphical user interface with a pressable touch
screen display.
c
Speaker — provides audible feedback.
d
Motion detector — detects movement in front of the panel. When no motion has
been detected for a user-defined period of time, the unit goes into sleep mode, which
shuts down the screen display and inactivates all the buttons. When motion is detected,
these functions are restored.
e
Eight backlit push-buttons — can be configured to perform user-defined functions
using the Extron Global Configurator software.
f
Encoder knob — intended for volume control but it can be configured for other
functions.
TLP 350MV • Panels and Cabling
4
