Extron Electronics TLP 350MV User Guide User Manual
Page 11
There are two recessed buttons and an LED behind the bezel. Use the Extron removal tool to
remove the bezel.
Extr
on
Extr
on
Remove bezel
at tabs.
Extron Removal Tool

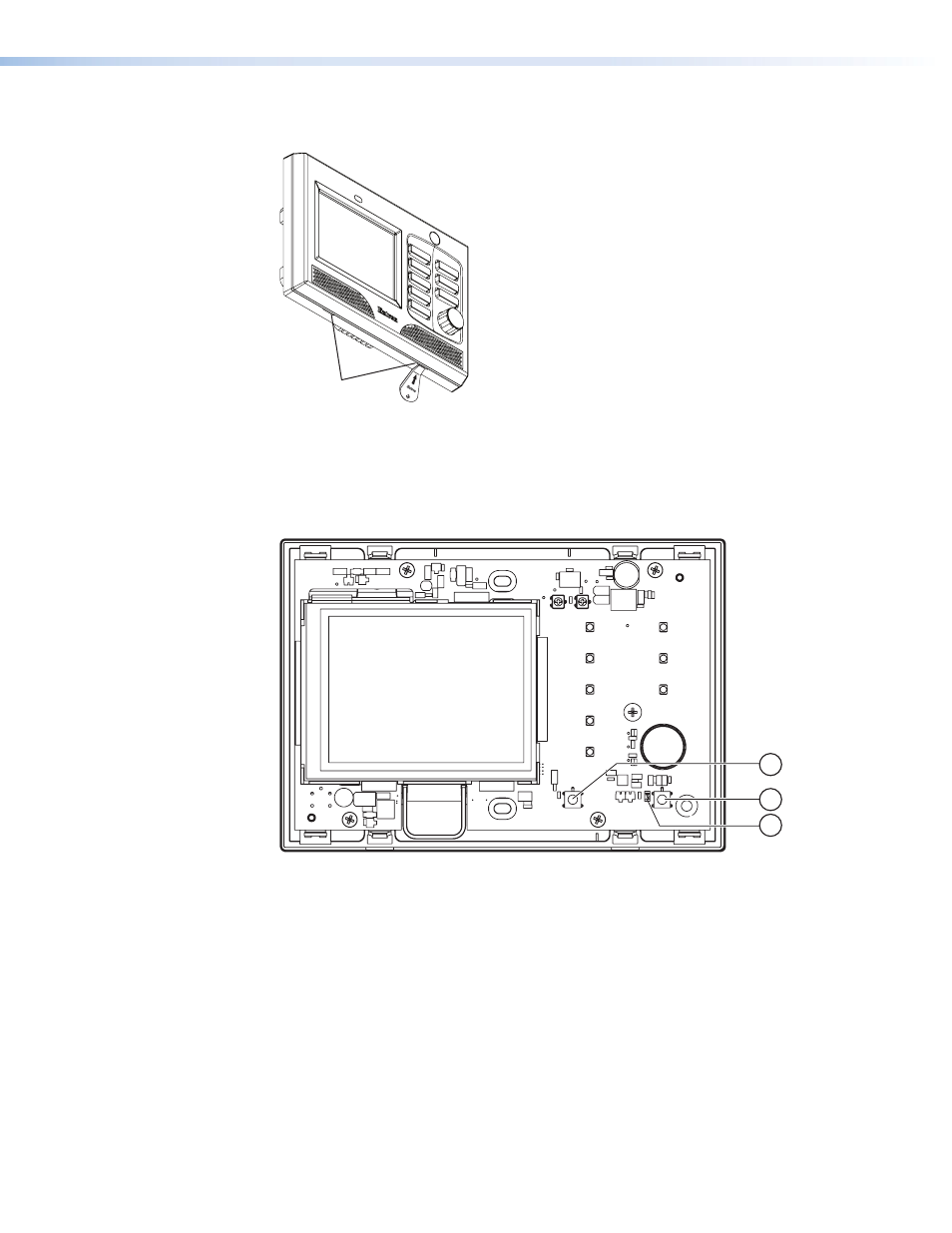

Figure 3.
Use the Extron Removal Tool to Remove the Bezel
These buttons are used for configuration of the unit and resetting parameters to factory
defaults:
7
8
9
Figure 4.
Front Panel Recessed Features
g
Menu button — recessed behind the bezel. It activates the on-screen menus for
calibrating the unit.
h
Reset button — recessed behind the bezel. This button allows the unit to be reset in
any of four different modes. For further information see
on page 37.
i
Reset LED — recessed behind the bezel. It is visible only when the bezel has been
removed. It lights as an indicator for the Reset modes. For further information see
TLP 350MV • Panels and Cabling
5
