Video Screen
Main
Dn Up
Dn Up
Dn Up
Dn Up
Contrast: 063
Bright: 127
Color: 064
Tint: 129

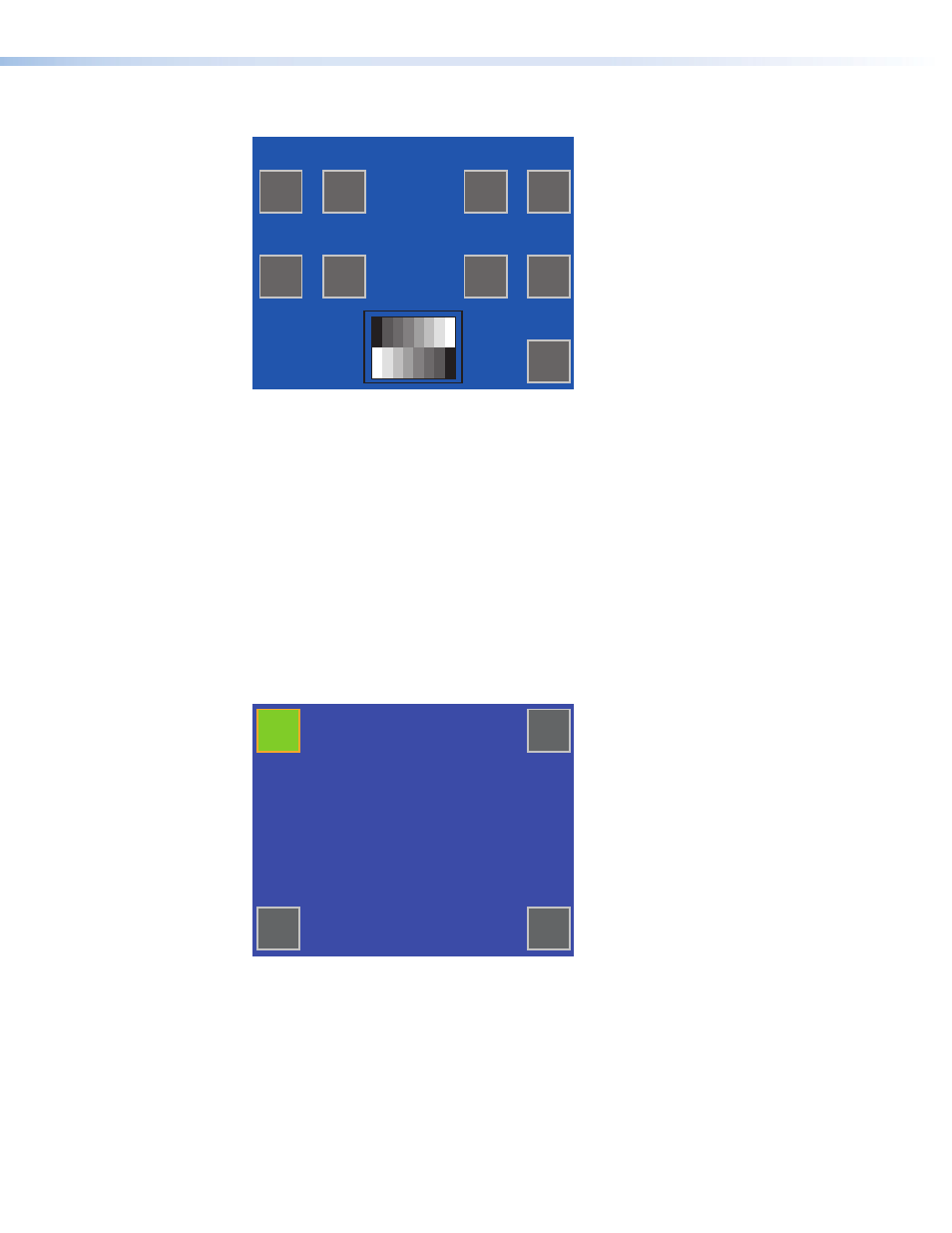

Figure 12. Video Screen
Use the Dn (down) and Up buttons or the volume control knob to adjust:
z z Contrast between 0 and 127 (default, 64)
z z Color between 0 and 127 (default, 64)
z z Brightness between 0 and 255 (default, 128)
z z Tint between 0 and 255 (default, 128)
The small rectangle provides a preview of incoming video and allows the user to adjust the
video properties.
After adjusting the Video screen, return to the
Main screen .
Screen Touch Calibration Screen
This screen adjusts the sensitivity of the screen to a finger touch. Press the Menu button a
second time to calibrate the touch area of the touchpanel.
+
Press and Hold
Highlighted Box
Until Color Changes
+
+ +
Figure 13. Screen Touch Calibration Screen
Press on the green box until the color reverts to gray with a white border and the next box
is highlighted in green. Repeat until all four boxes have been pressed. At that point the
program automatically returns to the
Main screen (see page 8).
To exit from the on-screen menus, press the Exit button in the bottom right corner of the
Main screen.
TLP 350MV • Initial Configuration 11
