Page 32
5.
Click OK and the Add Device screen closes. The start-up screen, which was behind it, is
now visible, showing the IPL 250 and the available ports:

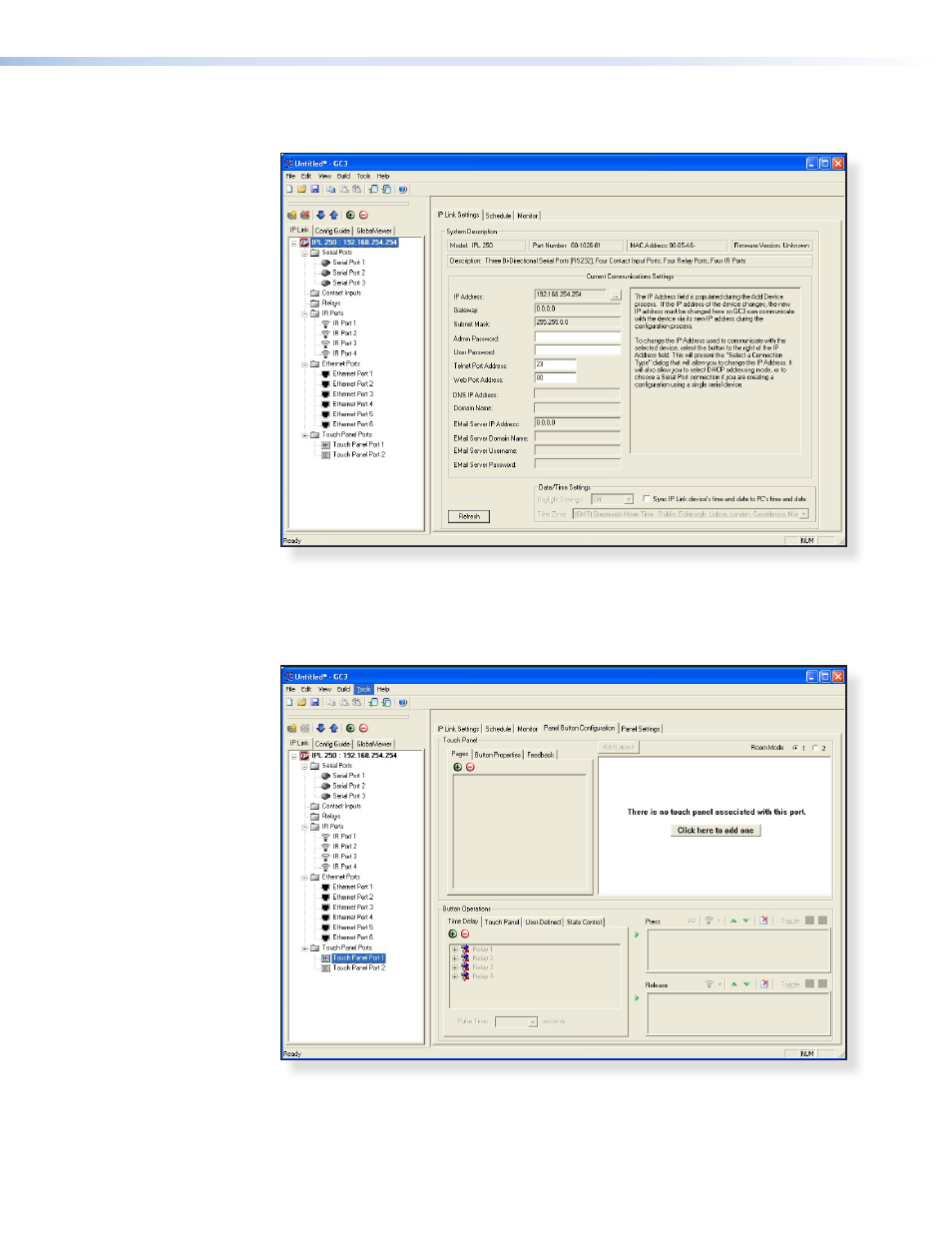

Figure 32.
Configuring an IP Link Device
6.
Select TouchPanel Port 1. The screen shows the available options for the
TouchLink Panel. To add the GUI Configurator project that was uploaded to the
TouchLink Panel, click Click here to add one.
Figure 33.
Adding a TouchLink Panel
TLP 350MV • Configuration Software
26
