Updating Firmware From a Web Browser
1. Power on a computer that is connected to the same network as the TLP 350MV.
2. From the Extron web site ( www.extron.com ), download the firmware for the
TLP 350MV. Click on the Download tab on the Extron home page and select the
Firmware option (see figure 18).
3. Navigate to the TLP 350MV firmware and click Download.
4. This downloads the firmware to your computer. Make a note of the folder where the
firmware file is saved.
5. Open your browser and type the IP address of the TLP 350MV unit into the address box.
The browser opens the
TouchLink Panel web pages (see page 13).

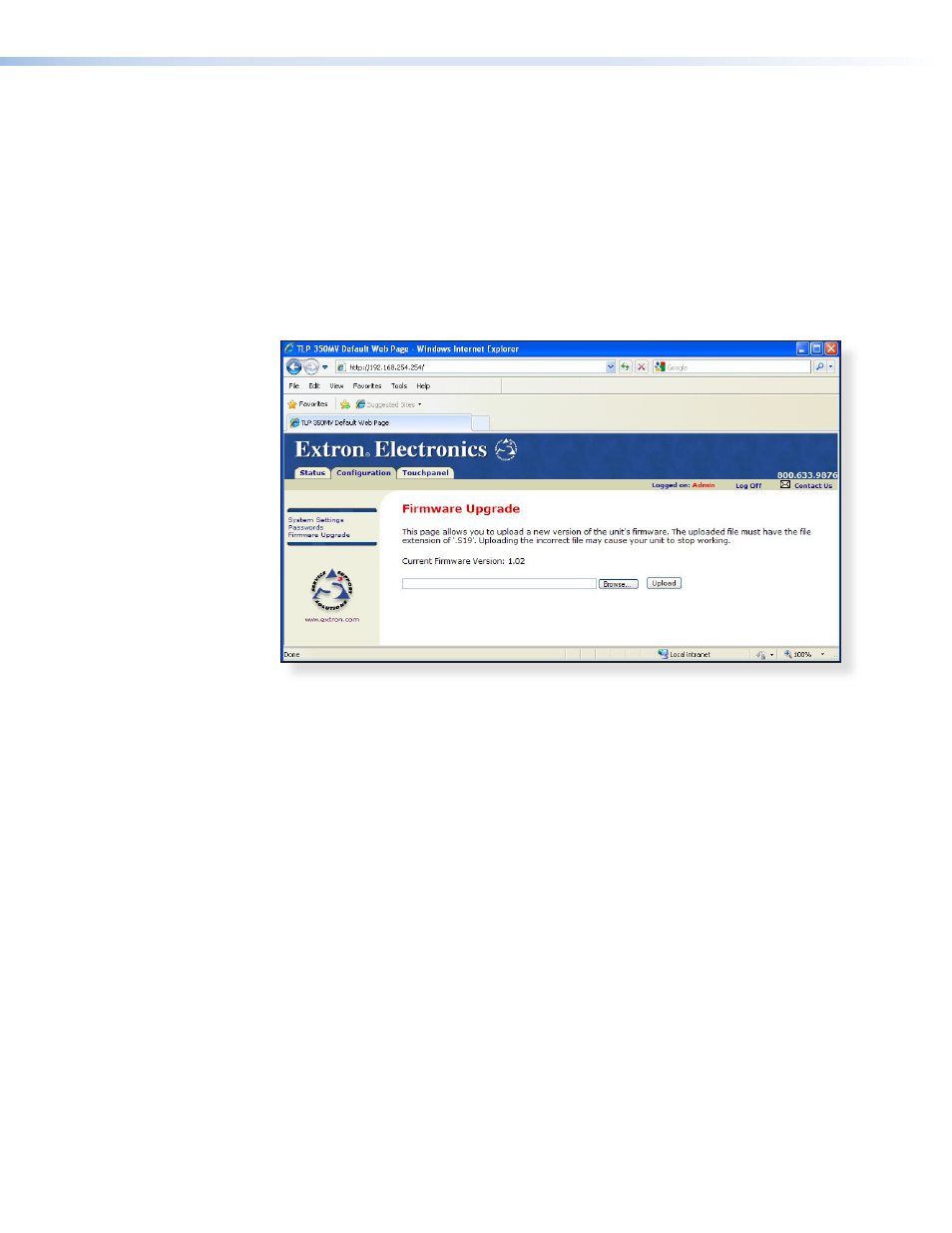

Figure 20. Firmware Upgrade Web Page
6. Click on the Configuration tab at the top of the page and then select
Firmware Upgrade from the bar on the left.
7. Use the Browse button to navigate to the firmware file that was saved in step 4.
8. Click Upload. The Touchpanel screen shows the message “Firmware Uploading...
Please Wait...”. When the firmware is uploaded, the screen shows the message
“ReStarting...”. Once the firmware is installed, the panel can be calibrated using the
on-screen menus (see page 8) or the TouchLink Panel web pages (see page 13).
