60
Chapter 4 - Configuration Management
ASUS GigaX2124
Authentication Control: If force-authorized is selected, the selected
port is forced authorized. Thus, traffic from all hosts is allowed to
pass. Otherwise, if force-unauthorized is selected, the selected port is
blocked and no traffic can go through. If auto is selected, the behavior
of the selected port is controlled by 802.1x protocol. All ports should
be set to Auto under normal conditions.
Reauthentication: Once enabled, the switch will try to authenticate
the port user again when the re-authentication time is up.
ReAuthentication Time: If Reauthentication is enabled, this is the
time period the switch uses to re-send authentication request to the
port user (see above).
Quiet Period: If authentication failed, the switch waits upon this time
period before sending another authentication request to the port user.
Guest Vlan: Specify a guest VLAN to clients that are not 802.1x-
capable.
Click OK to make the settings effective. Click Modify to refresh the
settings to current value.

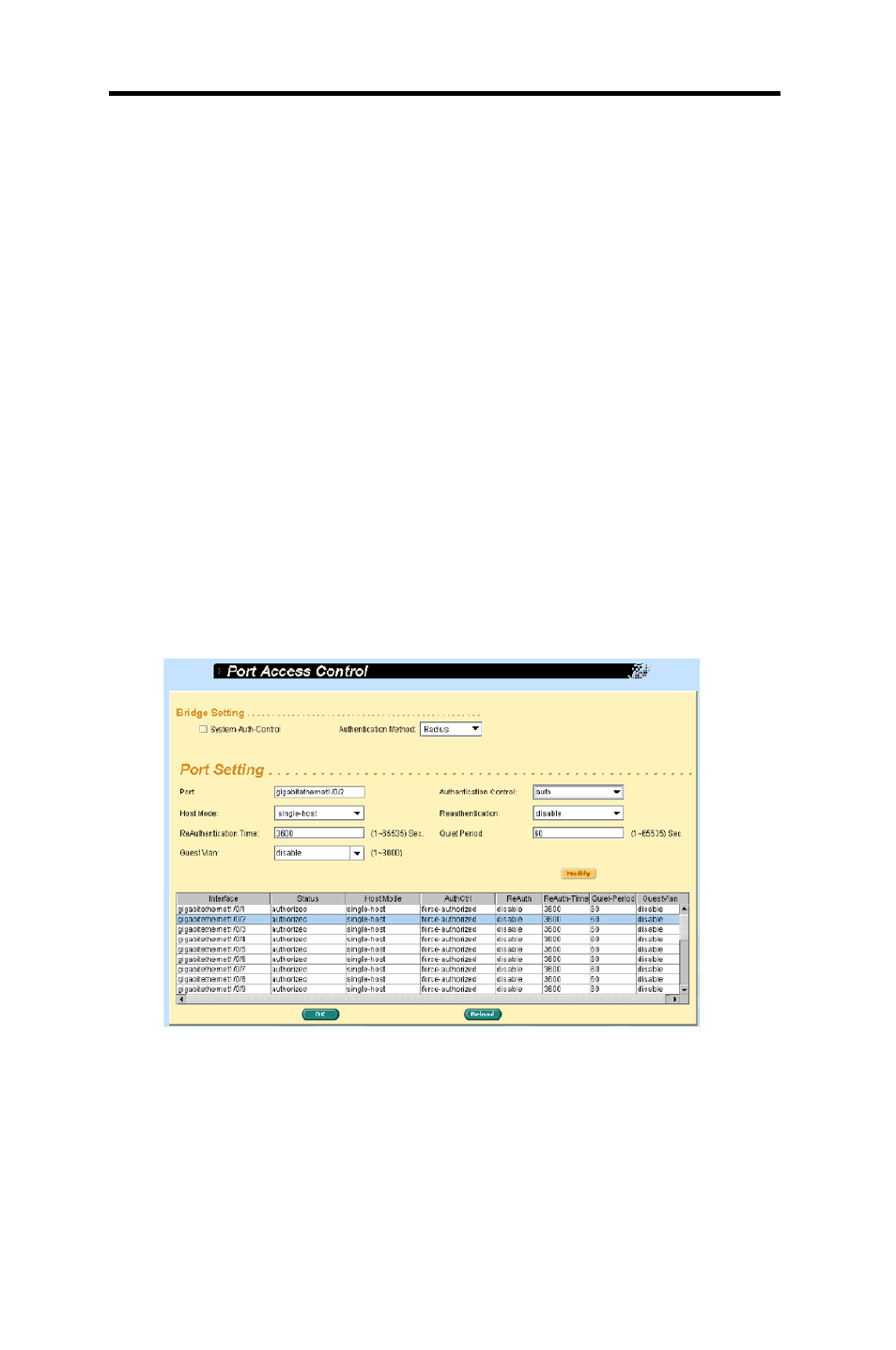

Figure 64. Port Access Control
