Chapter 4 - Configuration Management
ASUS GigaX2124
4.8.1.5 Runtime Status
It shows the current status for each port.

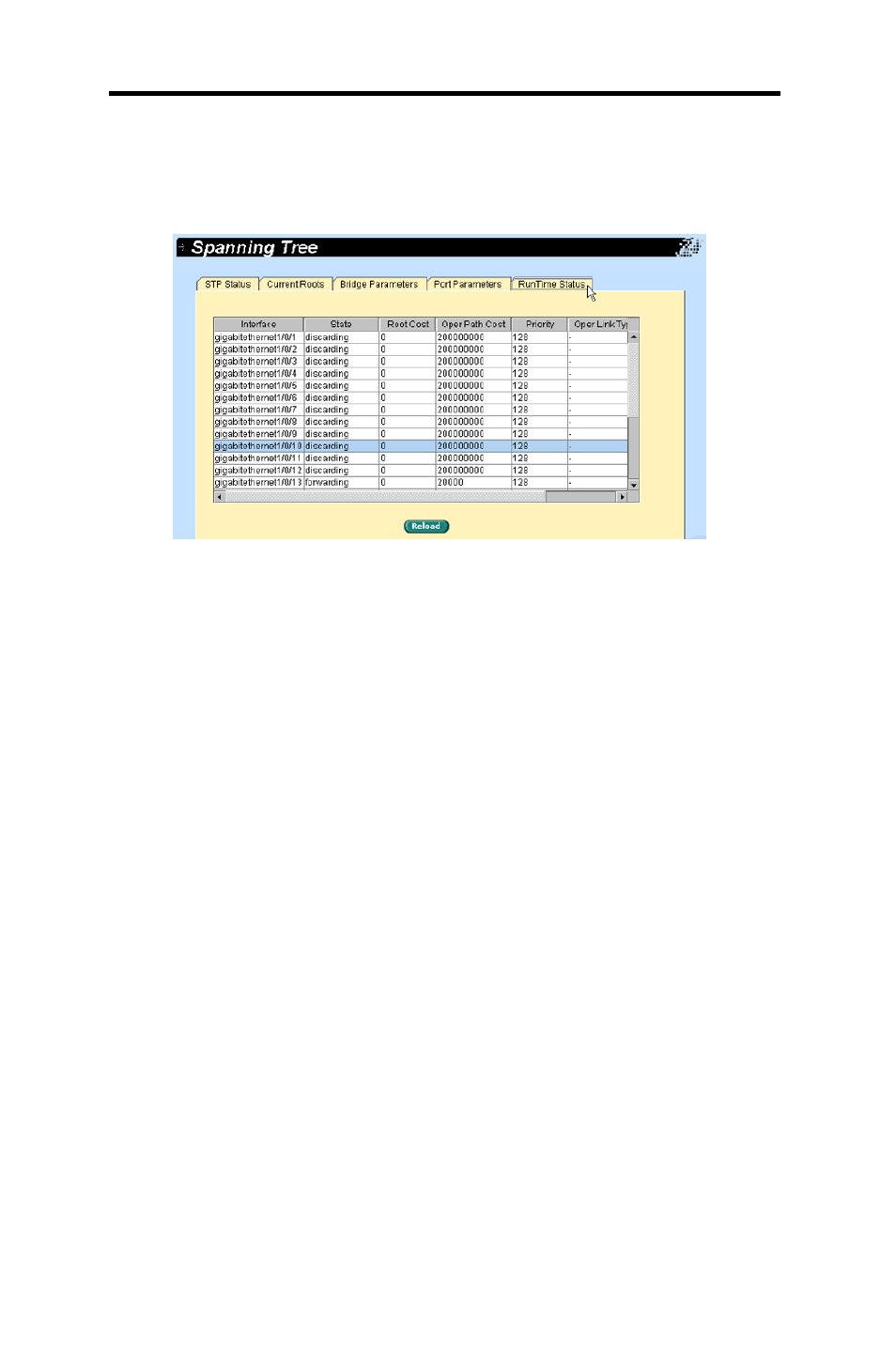

Figure 31. Spanning tree – RunTime Status
4.8.2 Link aggregation static
The page configures the link aggregation static group (port trunking). The
maximum group is 8 and up to 8 ports per group.
Trunk ID: A number to identify the trunk group
Protocol: Show the state of the link aggregation group. For the page
is static.
Port Selection Criterion: The algorithm to distribute packets among
the ports of the link aggregation group according to source MAC
address, destination MAC address, source and destination MAC
address, source IP address, destination IP address, or source and
destination IP address.
Port: These port icons are listed the same way as on the front panel.
You have to click the icon to select the group members. The port can
be removed from the group by clicking the selected port again.
Click OK to make the settings effective. Click Reload to refresh the
settings to current value.
You have to check the runtime link speed and duplex mode to make sure
the trunk is physically active. Go to Physical Interface and check the link
mode in the Runtime Status window for the trunk ports. If all the trunk
