Chapter 4 - Configuration Management
ASUS GigaX2124
Ethernet Link: The link is connected or not connected.
STP Status: The STP status
Duplex: The duplex mode
Speed: Link speed
Flow Control: The setting value to enable or disable 802.3x flow
control mechanism
Oper Port VLAN: The PVID of the port

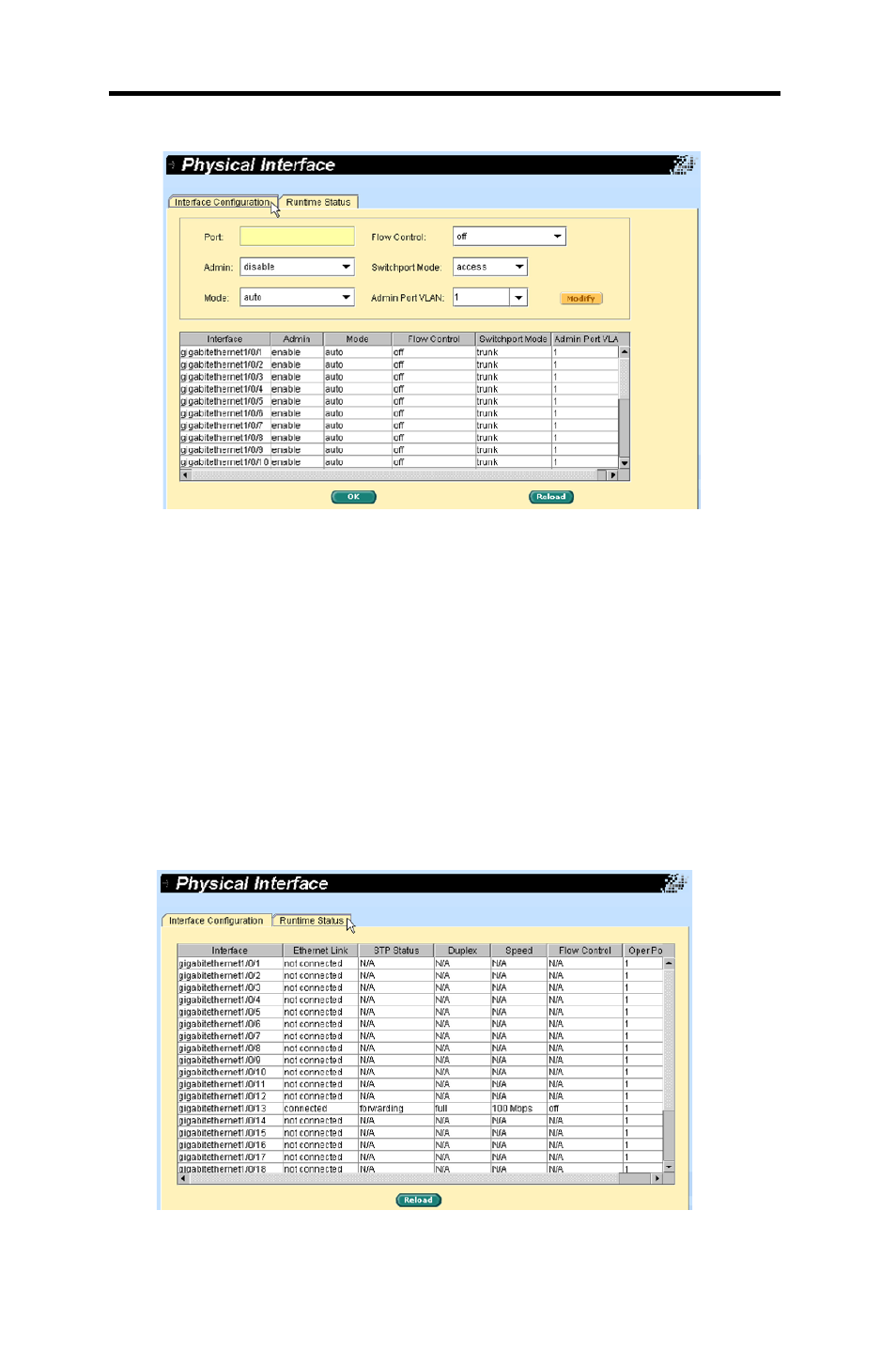

Figure 18. Physical Interface -1
Figure 19. Physical Interface -2
