Chapter 2 - Getting to know the GigaX2124
ASUS GigaX2124
2.3 Rear panel features
The switch rear panel contains the ports and power connections.

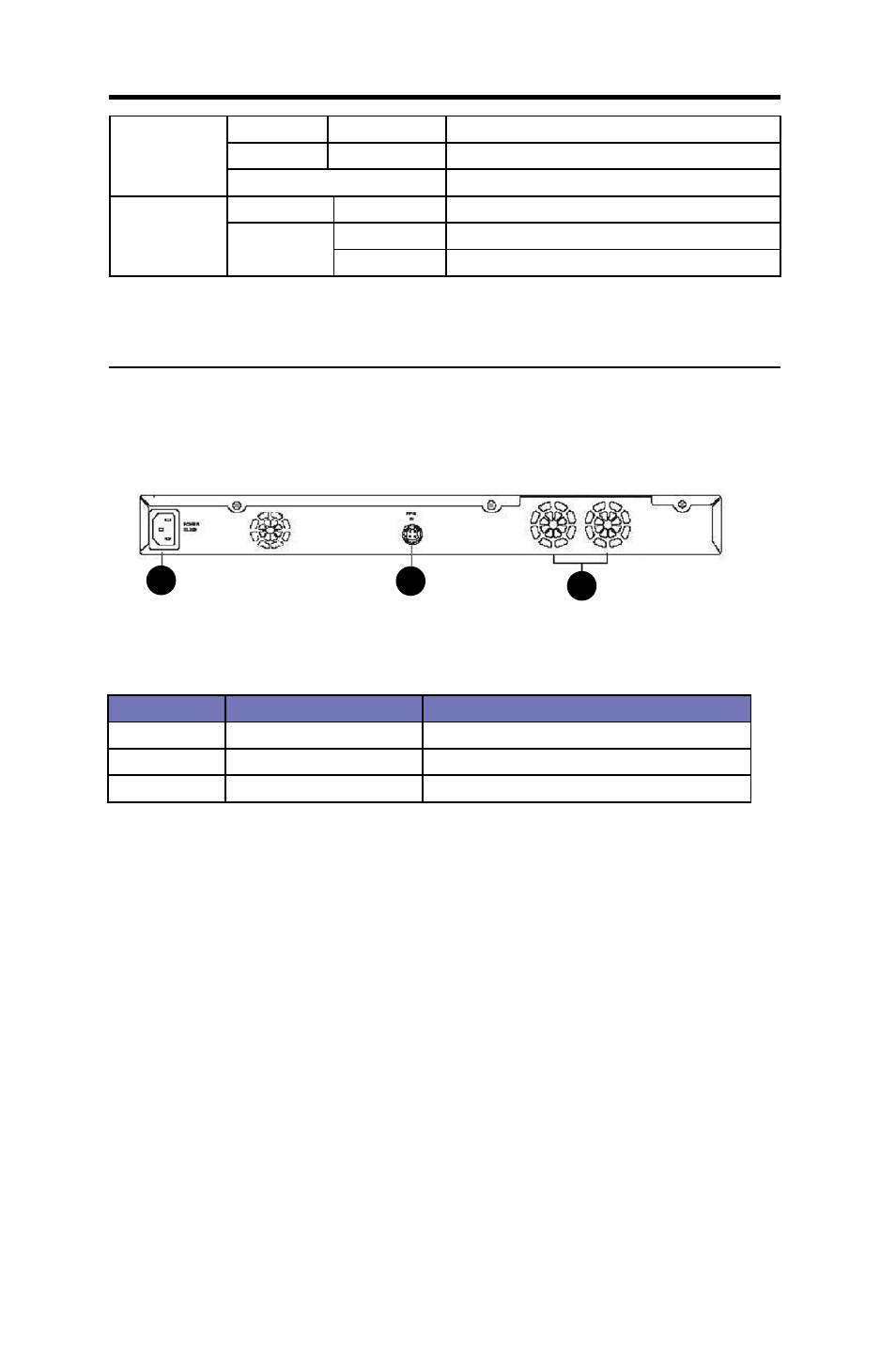

Figure 3. Rear panel
Table 2: Rear panel labels
No Label Description
1 Power Connects to the supplied power cord
2 RPS Redundant power supply connector
3 FAN1 - FAN2 Replaceable system fans
1 2
3
10/100/1000
port speed
Green On 1000Mbps
Amber On 1000Mbps
Off 10Mbps
10/100/1000
port duplex
Green On Full-duplex mode
Amber On Half-duplex mode
Flashing Collision
