26
Chapter 4 - Configuration Management
ASUS GigaX2124

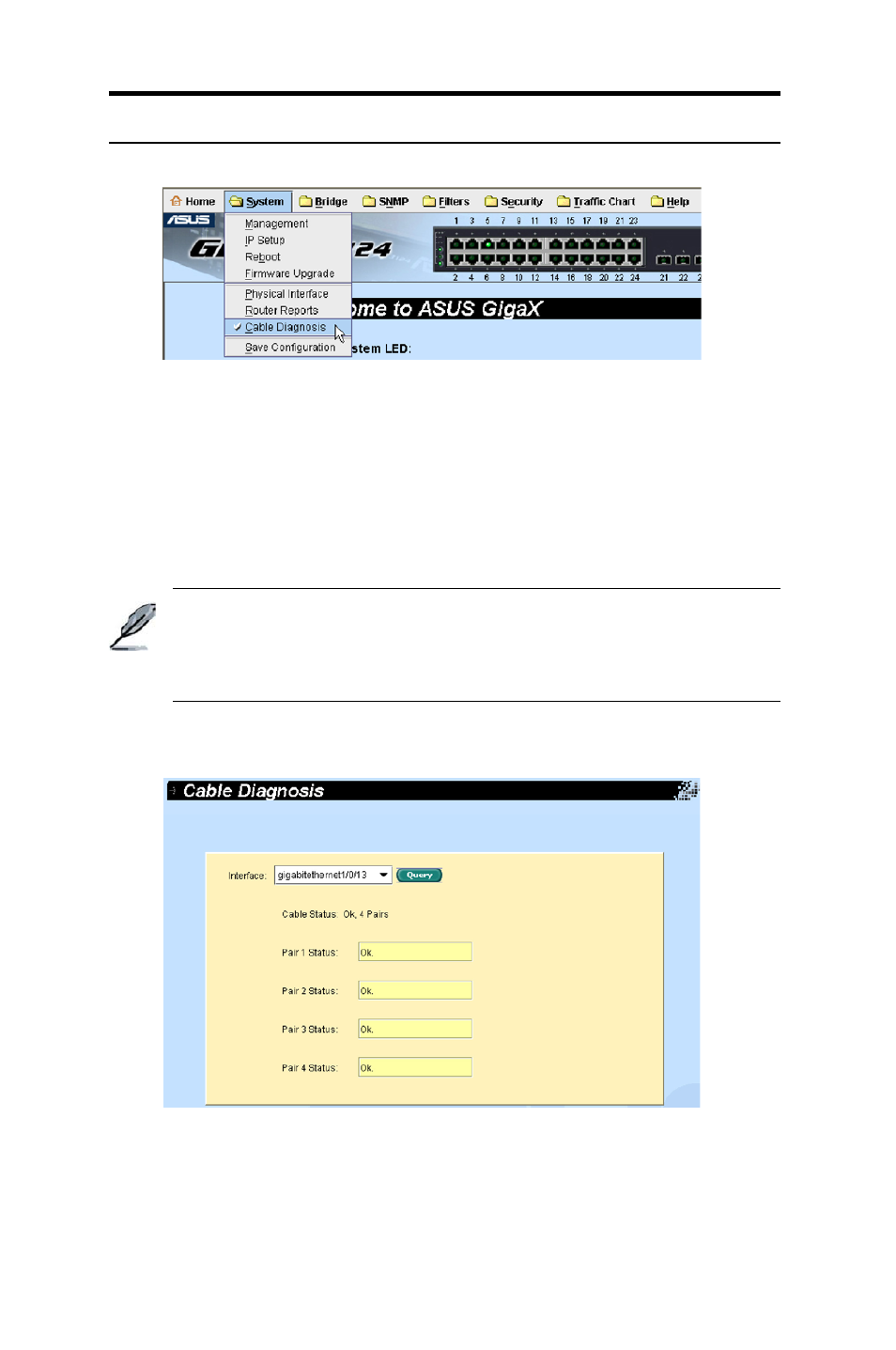

4.6 Cable Diagnosis
Figure 22. Cable Diagnosis item
To analysis the cabling plant for the common cable problems, such as
open circuits, short circuits and impedance mismatches.
Interface: Select the interface want to detect.
Click Query to start diagnose.
Cable diagnosis is capable of detecting cable open or short length.
If the cable length is too shorter, the detecting result may have more
error rate.
Note
Figure 23. Cable Diagnosis
