Install procedure for sg series, Connectivity box, Q1 of f on q2 on of f – GE Industrial Solutions ADVANCED SNMP WEB INTERFACE CARD User Manual
Page 8: P4 adv. snmp card protection plate
Modifications reserved
Page 8/33
OPM_CNT_ADV_SNM_CRD_XGB_V050.doc
Operating Manual ADVANCED SNMP WEB INTERFACE CARD
Install procedure for SG Series
SG
T
5
00
0
_
0
5
0-
080_U
PS_G
E
_03
Q1
OF
F
ON
Q2
ON
OF
F

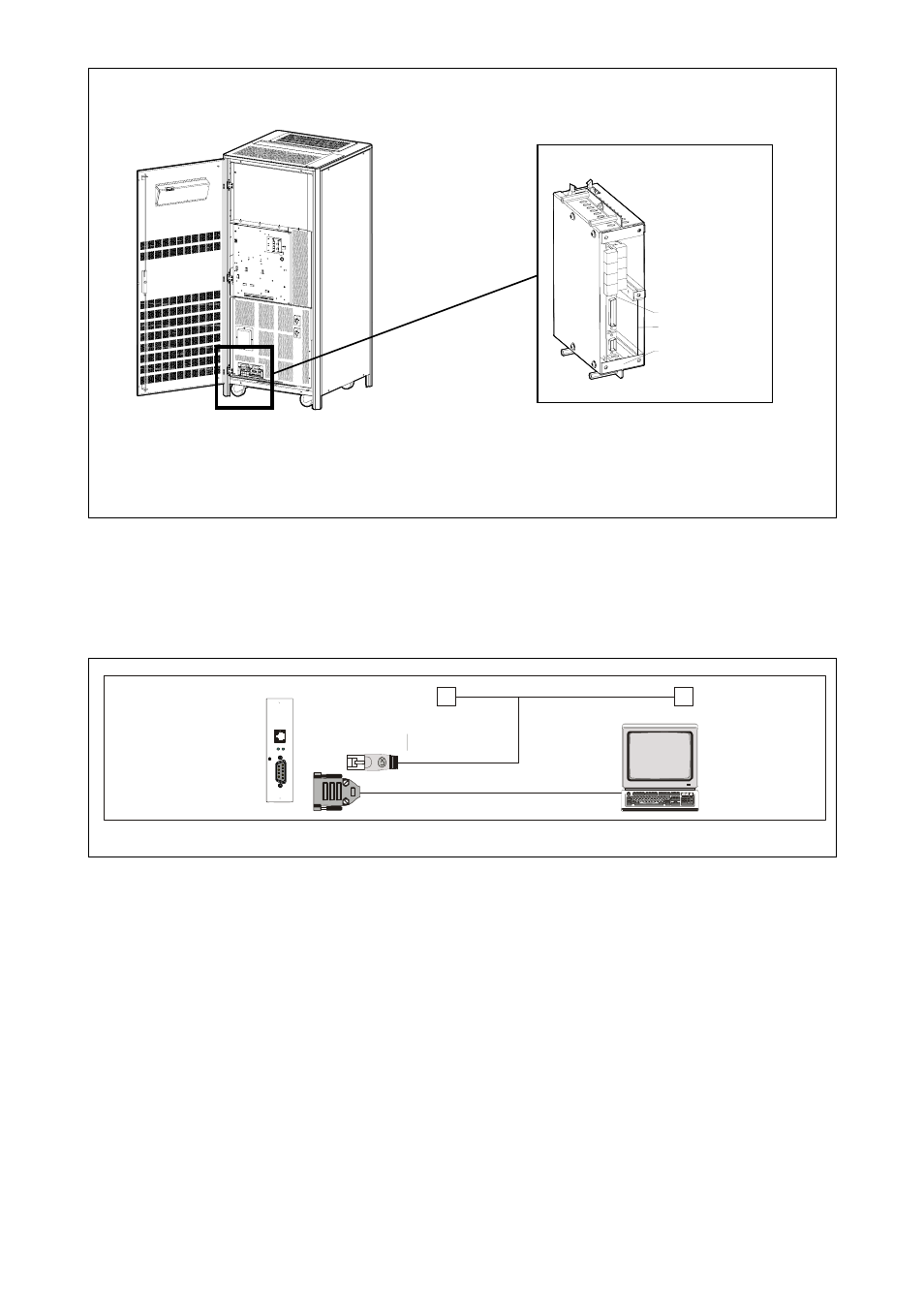

1. Change the frontal plate with the smaller one delivered with the Kit.
2. Insert the SNMP Card in the options slot.
3. Fix the frontal plate of the SNMP Card to the connectivity box, using the screw included in the
SNMP Interface Card kit.
3 Make all necessary connections (see architecture diagram in chapter 2)
4
Check that after a while (max. 30 sec.) the green led starts to blink.
This means that the communication with the UPS is established.
5
Switch on the UPS or go back to normal mode from bypass.
Connectivity box
C
N
T
_C
us
to
m
er
I
nt
er
fa
c
e_
01
P4
Adv. SNMP Card
Protection
Plate
