GE Industrial Solutions ADVANCED SNMP WEB INTERFACE CARD User Manual
Page 21
Modifications reserved
Page 21/33
OPM_CNT_ADV_SNM_CRD_XGB_V050.doc
Operating Manual ADVANCED SNMP WEB INTERFACE CARD
8.2.3 Alarms web page

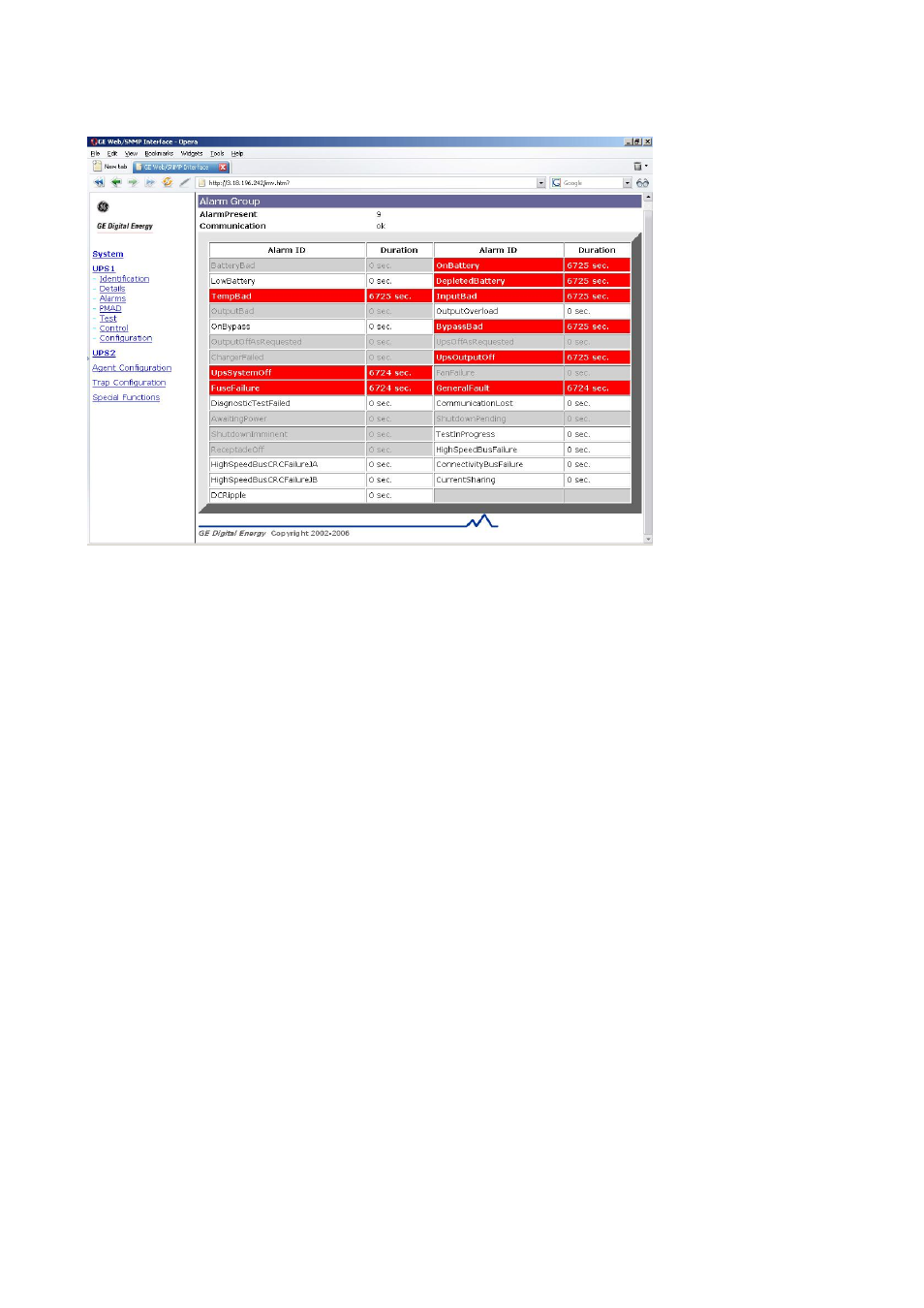

Clicking on the “Alarms” page link a similar screen will appear:
Meaning of the different fields shown on the UPS Alarms page:
Alarm Group
Alarm present:
The present number of active alarm conditions.
Communication:
The state of the communication with the UPS and the SNMP Interface Card.
If this field is “ok” the card is communicating with the UPS, contrary with “failed”
there is no communication between SNMP Interface Card and UPS.
Alarm ID:
The name of the present alarm. When the box is red the alarm is activated,
contrary when its white the alarm is inactive.
The grey colours of the box means that this alarm is not supported by the UPS
Duration:
The time passed since the alarm has been activated.
