2 INTRODUCTION
WARNING !
The work to be done is reserved to Service engineers which have been previously
trained on these UPS's, and therefore have thorough knowledge about the
function and handling of this equipment.
Introduction
The SNMP/Web Interface is designed to present information about the UPS on the network.
The interface provides the UPS information in two ways:
•
SNMP Agent
The SNMP information complies to the standard UPS-MIB which is defined in RFC1628.
Additional information are available with the GESingle and GEParallel MIB.
This format allows one or more NMSs (Network Management System) to monitor, manage and
control the UPS.
In addition, GE supports protection software and remote monitoring software using this information
to determine the status of the UPS and guarantee safe and orderly shutdown when necessary.
•
Web Server
The UPS information is also available in HTML format. HTML is the basic language for internet
communication. Every standard internet browser can be used to monitor and control the UPS using
HTML from anywhere on the network or even from anywhere in the world when using the internet.

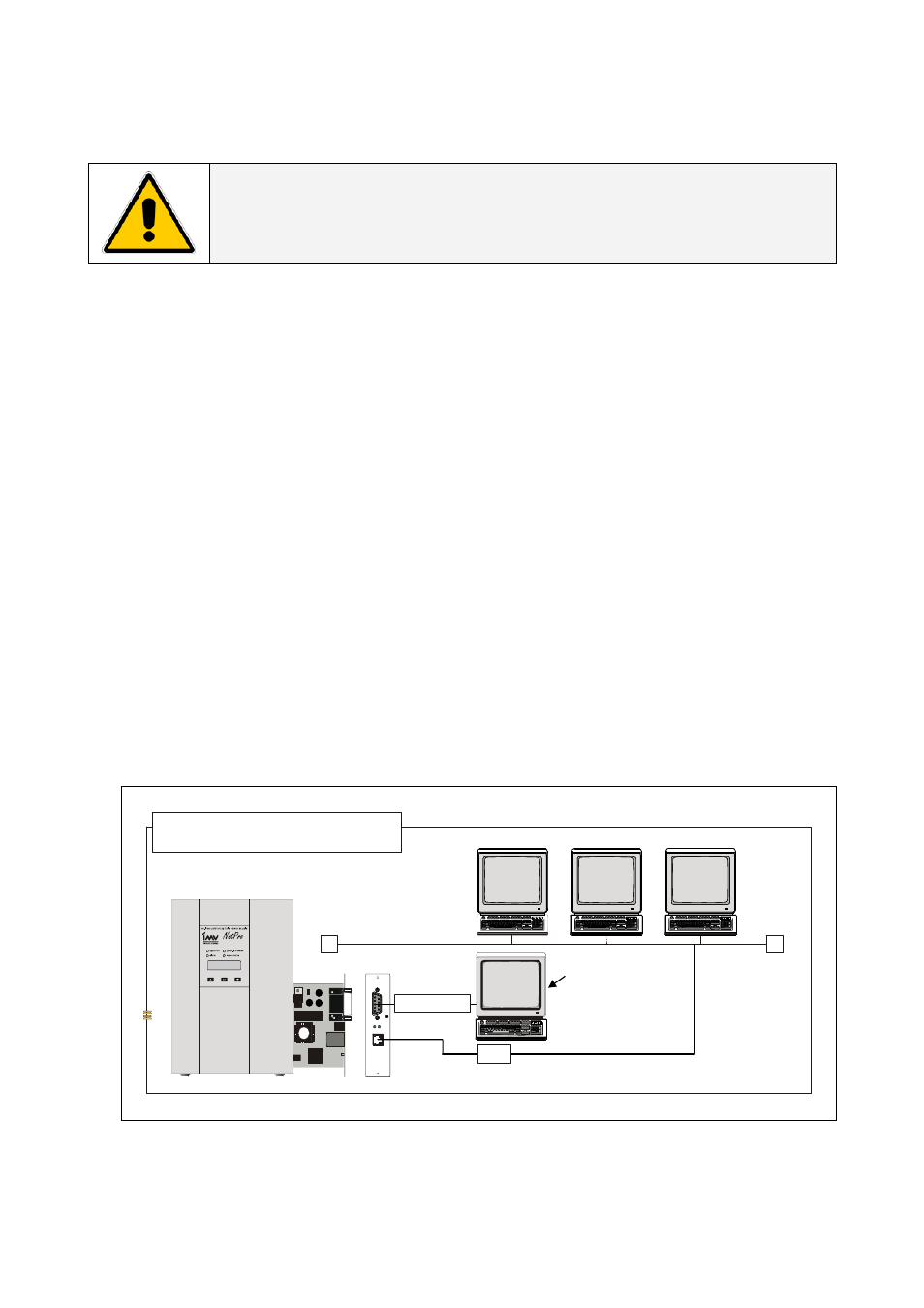

ARCHITECTURE DIAGRAM
WIN
95
WIN
NT
UNIX
Ethernet Comport PC
(console)
NOTE:
only required for
configuration
UTP
1:1 RS232
10/100 Mbits
