2 Install the SNMP Card in option slot.
IMPORTANT: Switch off the UPS, and wait approx. 2 minutes or switch the UPS to the manual bypass.
Please ensure that the mains input is reliable during this period.
All cables must be disconnected from the card during the installation.

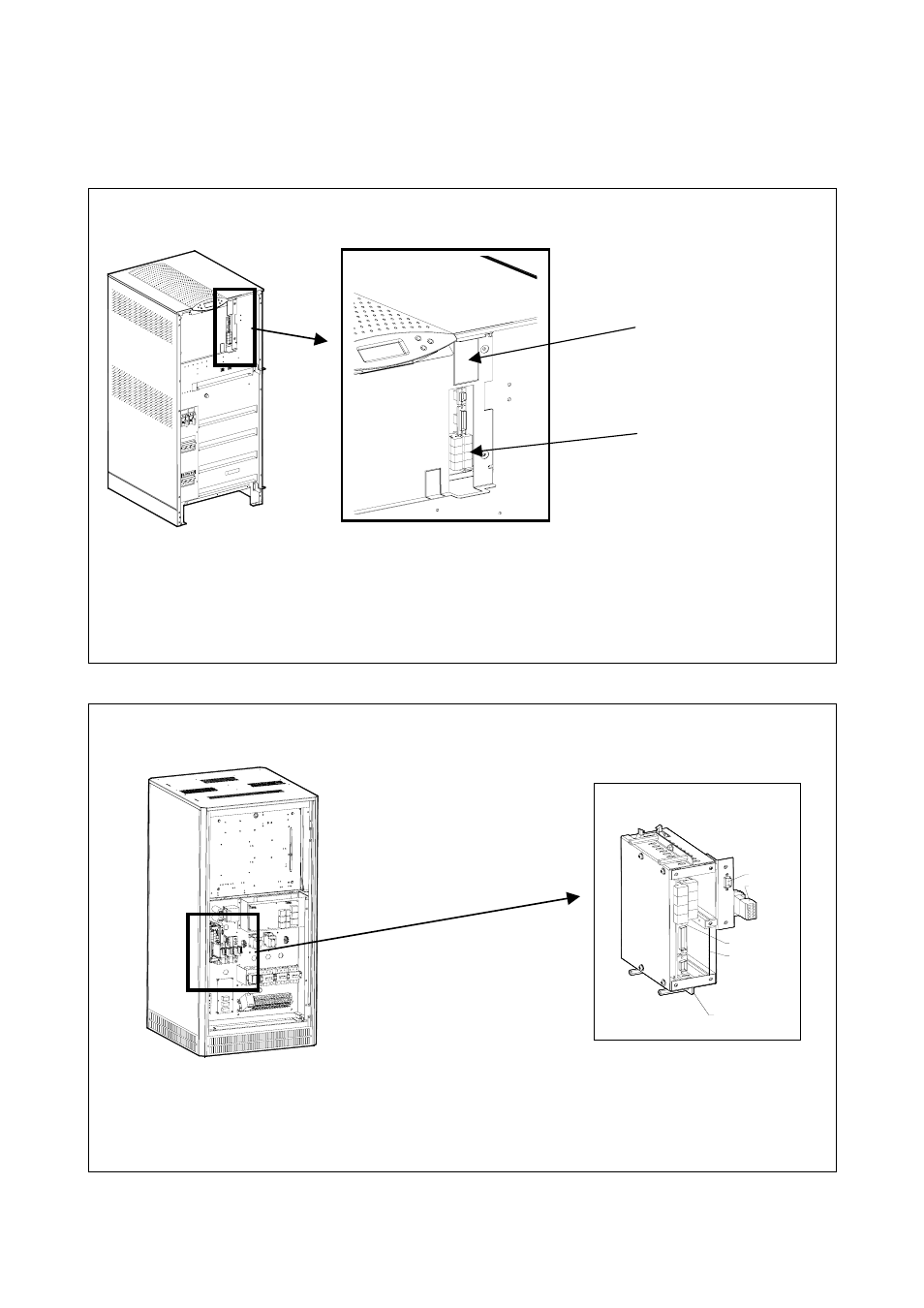

Install procedure for LANPRO 33 / LP 33 Series
Q1
LP33 _30_ UPS witho ut pro tectio ns_01
Q2
F1 F3 F2
1. Remove the plate that covers the Option slot by cutting the edges which are holding the plate.
Take care the plate does not fall inside the UPS!
2. Slide carefully the SNMP Card into the Options slot.
3. Fix the frontal plate of the SNMP Card to the UPS, using the screw included in the SNMP Interface
Card kit.
Install procedure for SitePro S6
Q2 Q1 Q4
1. Change the frontal plate with the smaller one delivered with the Kit.
2. Insert the SNMP Card in the options slot.
3. Fix the frontal plate of the SNMP Card to the connectivity box, using the screw included in the
SNMP Interface Card kit.
SNMP
CARD
Connectivity box
S P _ 15 0- 2 00 _S 6_ c us to m er int
e rf ac e_ 01
X A
J 1 1
P 4
S N M P
PROTECTION
PLATE
Option slot (see
description below
for procedure)
Customer interface
