DEH-41304C EntelliGuard® G Circuit Breaker
13 March 14 Section 6 – Accessories Description
©2012 General Electric All Rights Reserved 29
Table 6.5. UVR Operating Characteristics
Power
Consumption
Nominal Control
Voltage
Catalog
Number
DC: 350 W,
20 W (sealed)
AC: 350 W
(inrush),
20 W (sealed)
24/30 Vdc GUVT030DR
40 Vdc; 48 Vac/dc GUVT048R
60 Vdc GUVTO60DR
110/130/120 Vac GUVT130R
208 Vac GUVT208AR
220 Vdc/240 Vac GUVT240R
250 Vdc/277 Vac GUVT277R
 Duty cycle = 2/min.
 Inrush = 350 VA (ac), 350 W (dc).
 Holding = 60 VA (ac), 50 W (dc).
Time Delay Module (TDM) for UVR (Externally Mounted)
The de-energized operation of the Under Voltage release can
be delayed. This optional, externally mounted module has an
adjustable time delay of 0 s to 3 s. The device can be
implemented to prevent undesired breaker tripping due to
momentary voltage interruptions and is connected in series
with the Under Voltage release. The time delay is in addition
to the time delay from the breaker mounted UVR accessory.
The time delay module starts counting at 50% of rated
voltage (Fig. 6.2 and Table 6.6).

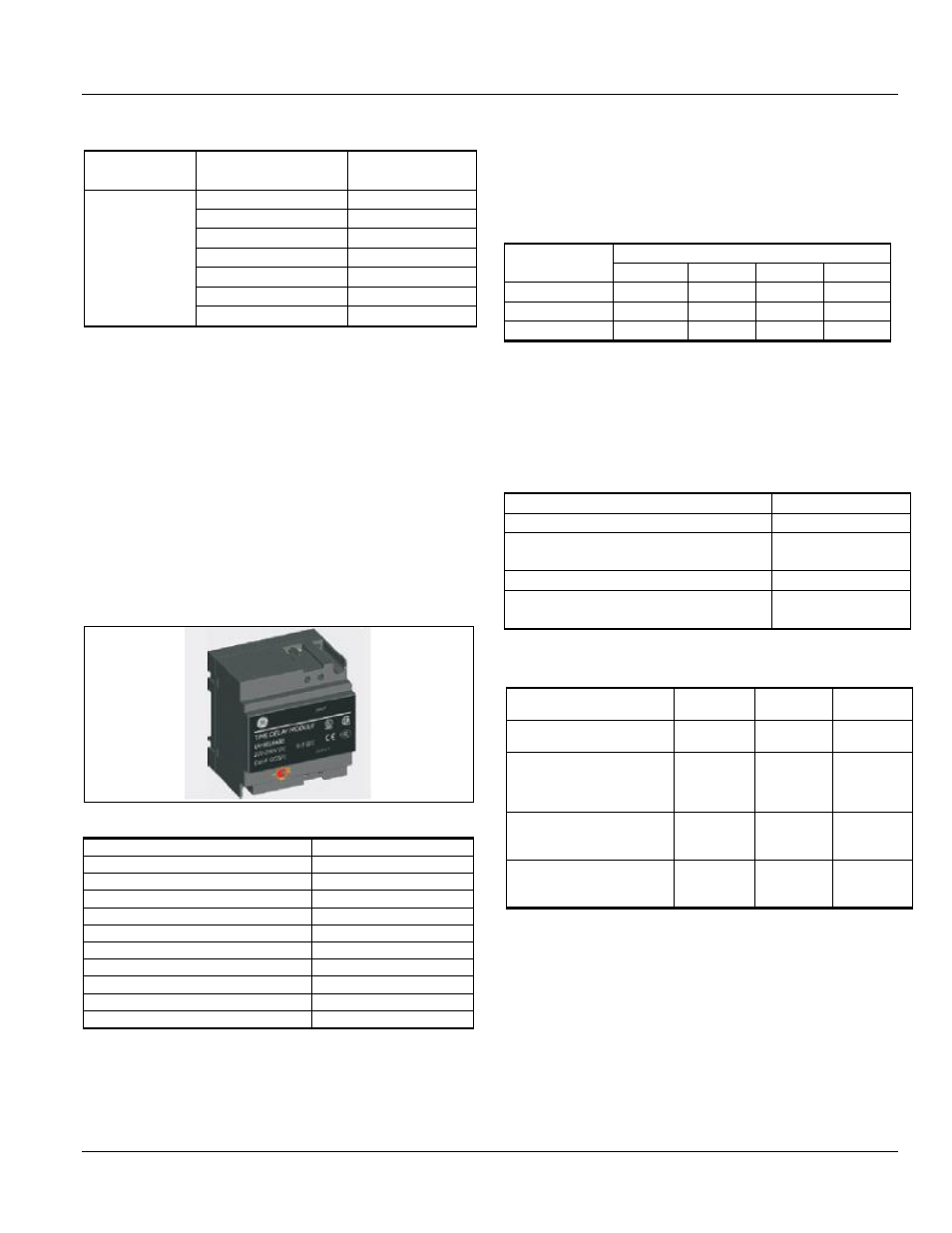

Figure 6.2. Time Delay Module
Table 6.6 TDM Characteristics
Nominal Control Voltage Catalog No.
48VDC GTDM048D
48VAC GTDM048A
60VDC GTDM060D
120VDC GTDM120D
120VAC GTDM120A
208VAC GTDM208A
240VDC GTDM240D
240VAC GTDM240A
250VDC GTDM250D
277VAC GTDM277A
Remote Operation Coil Combination
Each breaker accepts a maximum of four coils in the
combinations shown in Table 6.7. All coils are mounted from
the front and snap onto the mechanism after the fascia is
removed.
Table 6.7. Remote Operation Coil Combination
Combination Coil Position on Fascia (from left)
1 2 3 4
1 - shunt CC UV
2 shunt shunt CC UV
3 shunt UV CC UV
Auxiliary Switches
Auxiliary switches indicate breaker main contact position.
They change their state in the same time sequence as the
breaker main contacts. See Tables 6.8 and 6.9 for available
combinations and ratings.
Table 6.8. Auxiliary Switches
Contact Configuration Cat. No.
Power rated (3NO+3NC) GAUX3R
Power rated (3NO+3NC) + low signal (Hi-Fi)
(2NO+2NC) GAUX5R
Power rated (8NO+8NC) GAUX6R
Power rated (4NO+4NC) + low signal (Hi-Fi)
(4NO+4NC) GAUX8R
Table 6.9. Auxiliary Switch Ratings and Secondary
Disconnect Points
Contact Configuration
Power
Rated
Hi-Fi Cat. No.
Power rated
(3NO+3NC)
A14 - A25 N/A GAUX3R
Power rated (3NO+3NC) +
low signal (Hi-Fi)
(2NO+2NC)
A14 - A25
B10 - B13,
B23 - B26
GAUX5R
Power rated
(8NO+8NC)*
A14 - A25,
B4 - B13,
B17 - B26
N/A GAUX6R
Power rated (4NO+4NC) +
low signal (Hi-Fi)
(4NO+4NC)*
A14 - A25,
B12 - B13,
B25 - B26
B4 - B11,
B17 - B24
GAUX8R
*Options are not available for side mounted sec disc blocks.
 High Fidelity refers to gold-plated contacts. Use for signal level outputs
(10 mA min to 100 mA max., 8 Vdc to 30 Vdc, 125 Vac.
