DEH-41304C EntelliGuard® G Circuit Breaker
13 March 14 Section 6 – Accessories Description
©2012 General Electric All Rights Reserved 27
SECTION 6 – ACCESSORIES DESCRIPTION
WARNING
IMPROPER INSTALLATION, OPERATION AND
MAINTENANCE
Ensure only qualified personnel install, operate, service
and maintain all electrical equipment.
Failure to comply with these instructions could
result in death or serious injury.
GENERAL INFORMATION
A wide range of optional accessories are interchangeable
across all EntelliGuard G power circuit breakers, regardless
of nominal rating or envelope/frame size. Each accessory
incorporates easy-fit design features for quick installation,
either at the factory or in the field (Fig. 6.1).
NOTE: Replacement accessories have an “R” at the end of
the catalog number as shown.

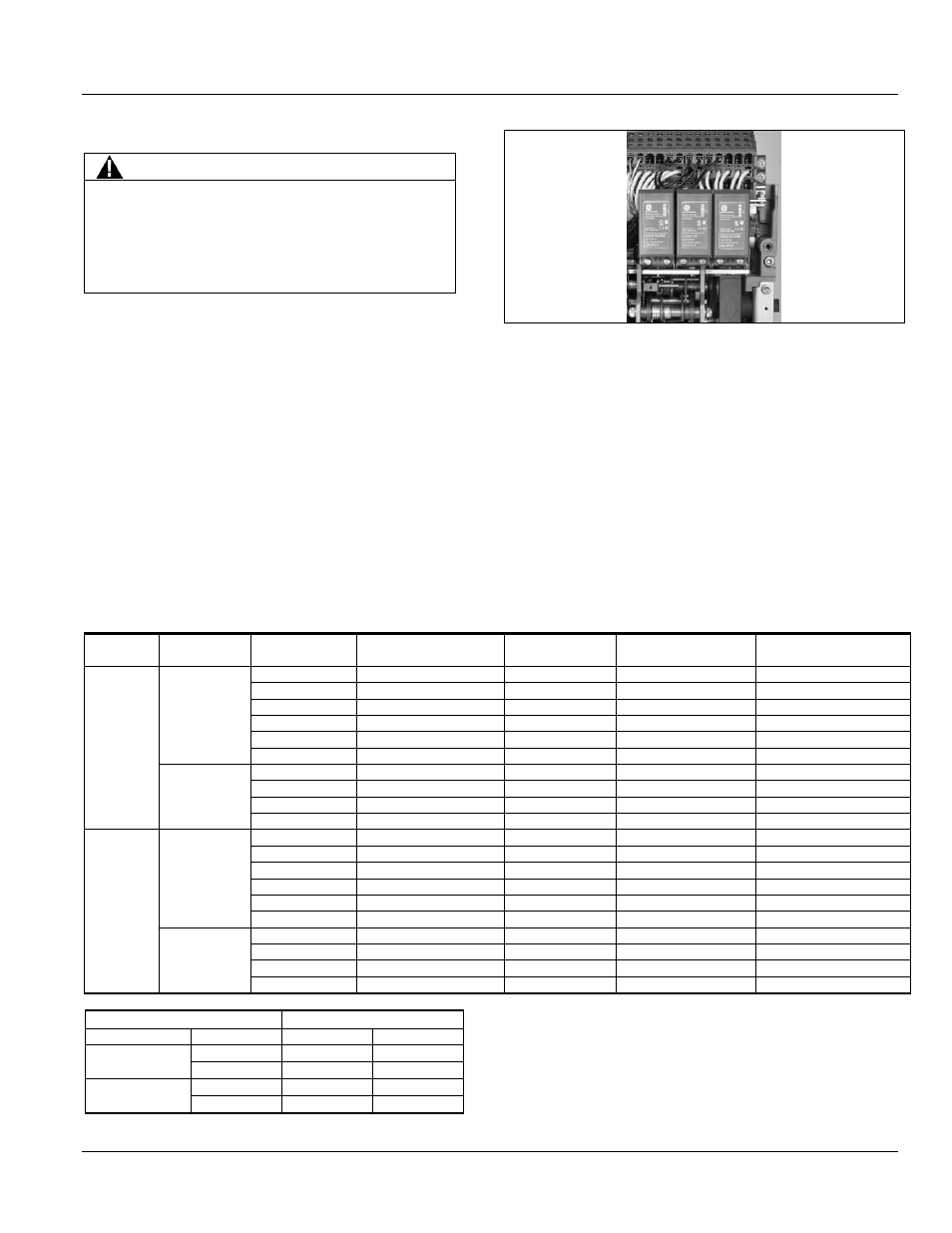

Figure 6.1. Accessory Mounting
INDIVIDUAL ACCESSORIES
Motorized Spring Charging Unit
The unique motor/gearbox unit is specially designed to
operate with the full range of EntelliGuard G. It is easily
fitted with three heavy-duty bolts. After a breaker close
operation, the unit automatically recharges the spring and
makes it ready for immediate open and re-close should the
need arise. High speed recharging ensures that the springs
are fully charged within approximately three seconds
following a release. All electrically operated (EO) ANSI/UL
breakers are equipped with “Spring Charged” contacts
(GSCC1R) for status indication (Table 6.1).
Table 6.1 Motor Operators
Envelope Power
Consumption
Nominal Control
Voltage
IEC Range (85% to 110%) ANSI Range UL Range
(85% to 110%)
Cat No.
1
DC – 300 W
24 Vdc/30 Vdc 20.4 V to 26.4 V - 20.4 V to 26.4 V GM0124DR
48 Vdc 40.8 V to 52.87 V 38 V to 56 V 40.8 V to 52.87 V GM01048DR
60 Vdc 51 V to 66 V - 51 V to 66 V GM01060DR
72 Vdc 61.2V to 79.2 V - 61.2 V to 79.2 V GM01072DR
110 Vdc/130 Vdc 106.25 V to 137.5 V 100 V to 140 V 106.25 V to 137.5 V GM0113ODR
250 Vdc 212.5 V to 275 V 200 V to 280 V 212.5 V to 275 V GM01250DR
AC – 350 VA
48 Vac 40.8 V to 52.87 V - 40.8 V to 52.87 V GM01048AR
120 Vac 102 V to 132 V 104 V to 127 V 102 V to 132 V GM01120AR
240 Vac 204 V to 264 V 208 V to 254 V 204 V to 264 V GM01240AR
277 Vac 235.5 V to 304.7 V - 235.5 V to 304.7 V GM01277AR
2 and 3
DC – 480 W
24 Vdc/30 Vdc 20.4 V to 26.4 V - 20.4 V to 26.4 V GM0224DR
48 Vdc 40.8 V to 52.87 V 38 V to 56 V 40.8 V to 52.87 V GM02048DR
60 Vdc 51 V to 66 V - 51 V to 66 V GM02060DR
72 Vdc 61.2 V to 79.2 V - 61.2 V to 79.2 V GM02072DR
110 Vdc/130 Vdc 106.25 V to 137.5 V 100 V to 140 V 106.25 V to 137.5 V GM0213ODR
250 Vdc 212.5 V to 275 V 200 V to 280 V 212.5 V to 275 V GM02250DR
AC – 560 VA
48 Vac 40.8 V to 52.87 V - 40.8 V to 52.87 V GM02048AR
120 Vac 102 V to 132 V 104 V to 127V 102 V to 132 V GM02120AR
240 Vac 204 V to 264 V 208 V to 254 V 204 V to 264 V GM02240AR
27 Vac 235.5 V to 304.7 V - 235.5 V to 304.7 V GM02277AR
 Spring charge contact is power rated only, as shown below.
AC Ratings DC Ratings
Voltage Amps Voltage Amps
110 V-130 V
AC21-15 A 24 V DC21-15 A
AC23-10 A 110 V-130 V DC21-10 A
220 V -240 V
AC21-10 A 250 V DC21-5 A
AC23-5 A - -
 Spring charge time = 3 sec max.
 Recommended fuse amps: contact factory.
 Duty cycle = 2/min.
 Envelope 1 motors: running VA ~ 300 VA; inrush = 2 to 3 times.
 Envelope 2 and 3 motors: running VA ~ 450 VA; inrush = 2 to 3 times.
