EntelliGuard™ 800–2000 A Power Circuit Breakers
Chapter 8. Accessory Maintenance
49

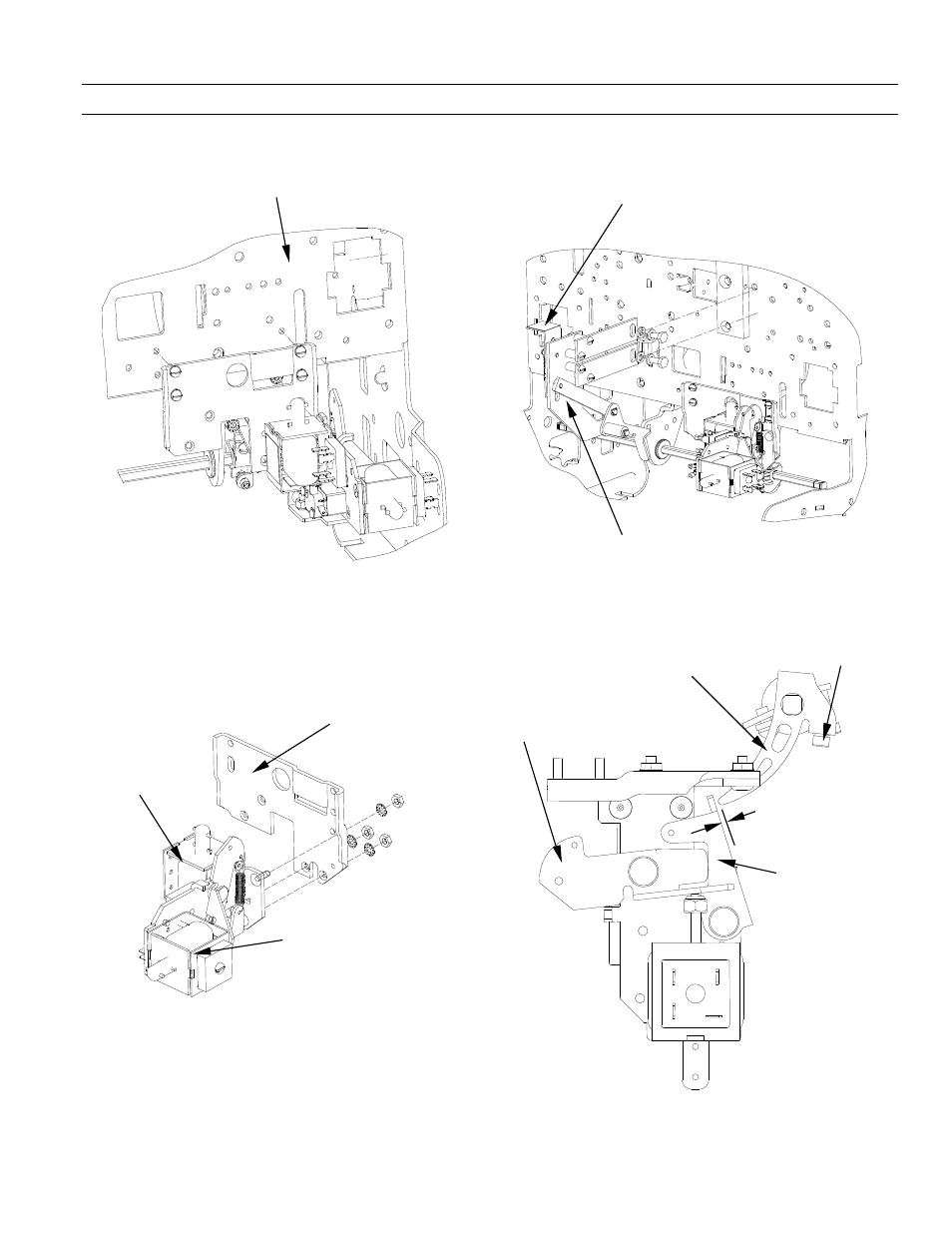

Figure 63. Network Interlock assembly mounting to the circuit breaker
bottom frame. (Shunt Trip omitted for clarity.)
Figure 64. Network Interlock module fastening to the mounting plate.
Figure 65. Manual reset assembly mounting
Figure 66. Trip paddle and set lever gap calibration. (Breaker charged.
NI module shown in RESET position.)
Manual Reset Assembly
Manual Reset Button
0.06” - 0.09”
Reset Lever
Set Lever
Trip Paddle
Adjusting
Screw
Bottom Frame
Mounting Plate
Reset Solenoid
Set Solenoid
