EntelliGuard™ 800–2000 A Power Circuit Breakers
Chapter 4. Breaker Operation
10
10 Aux Switch (NO contact)
1 Aux Switch
2 Aux Switch
11 Aux Switch (NC contact)
13 Flux Shifter
12 Flux Shifter common
5 Shunt Trip
7 Shunt Trip common
9 Close Circuit
18 Close Circuit common
8 Closing Spring Charging Motor
17 Closing Spring Charging Motor common
3 Remote Charge Indicator
4 Remote Charge Indicator
14 Bell Alarm Trip
6 Bell Alarm Trip Common
16 Bell Alarm Status
19 Bell Alarm Status Comon
OR
15 Network Interlock SET
20 Network Interlock RESET
21 Network Interlock SET/RESET common
16 Network Interlock Status
19 Network Interlock Status common
22 OFLO (phase A)
23 OFLO (phase A)
24 OFLO (phase B)
25 OFLO (phase B)
26 OFLO (phase C)
27 OFLO (phase C)
28 Spare
29 Spare
30 Spare
31 Spare
32 Spare
33 Spare
34 Spare
35 Spare
36 Spare

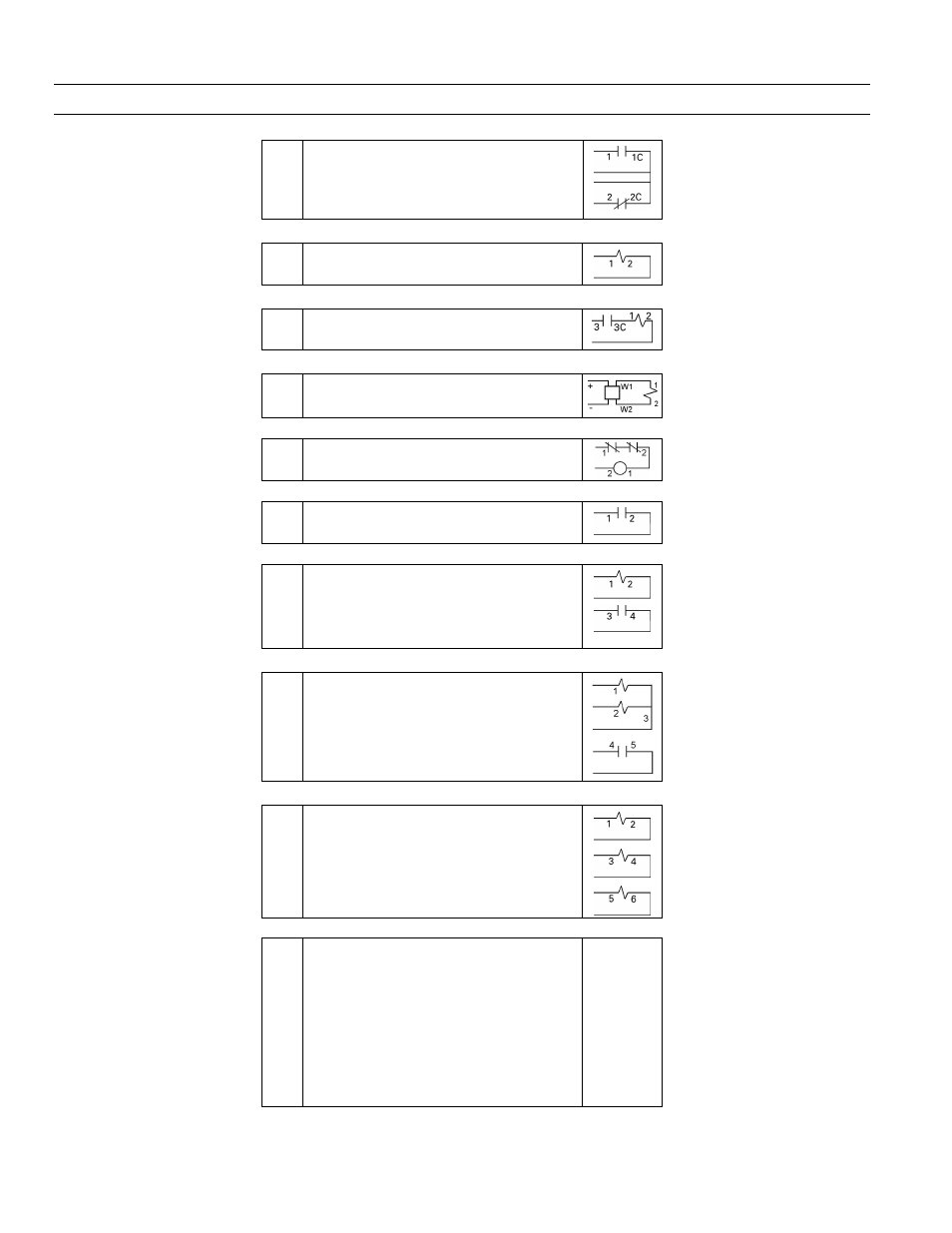

Table 4. Secondary disconnect terminals with standard and optional connections.
