NOTE:
Must install center bolt in
one of the center holes in
Chevrolet 73 to 87 / 73 to 92 4-door (GMC) (34” Straight, with Outside Shock Absorbers)
Front
of
Vehicle
Rear Edge of
Truck Bed
R
O
W
1
R
O
W
2
R
O
W
3
R
O
W
4
CAUTION!
Read pages 2-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
Drill through
bed and truck
frame
z 2006,2007,2008,2009,2010,2011,2012,2013 Cequent Performance Products, Inc.
Made in China 30035IN 9/4/13 Rev. R
one of the center holes in
each rail.
Check to make sure center
bolt does not interfere with
bed sill.
1/4 1.5-3
1/4 2
*
34-7/8” Long Box
And Short Box
Side Bracket
* Optional weld
pattern

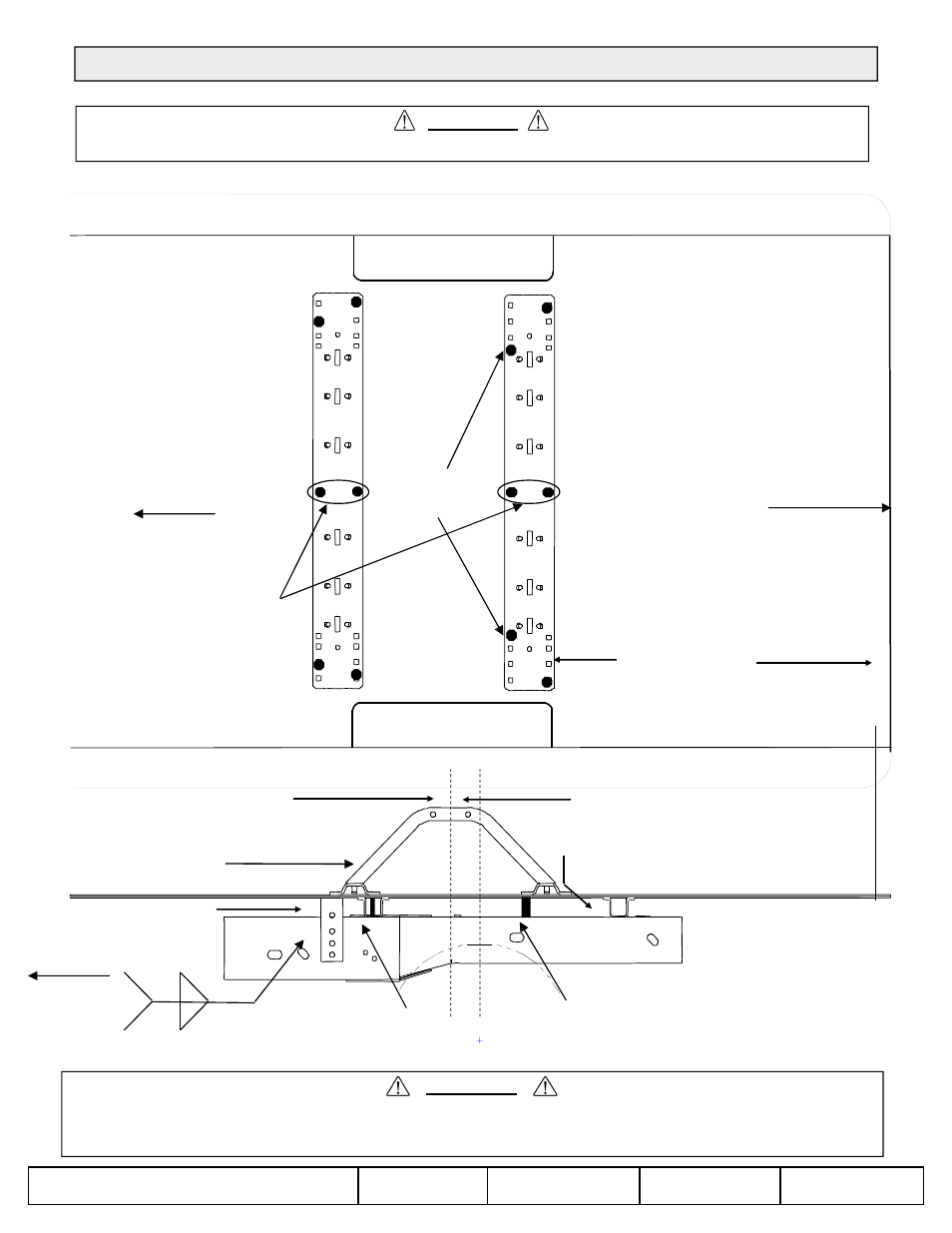

Drivers side of 1/2 ton Chevy Long Box Shown
King Pin Center approx.. 3-1/2”
forward of Axle Center
DO NOT Torque to 85lb-ft
(tighten but do not crush bed sill)
Install spacer with 1/2” hole between frame and
bed. (Cut provided tube spacer down to fit snug
between frame and bed.)
Long bracket
Measure from Rear Edge of truck
bed to rear edge of base rail.
Axle Center
Bed Sill
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
CEQUENT PERFORMANCE PRODUCTS, INC. does its best to communicate tow vehicle manufacturer changes; however, it is
ultimately the responsibility of the installer to prevent damage due to installation.
SHEET 7 0F 21
Front of
Vehicle
