FORD F-150 & F-250 THROUGH ’96 / ‘97 F-250 OVER 8500 GVW, F350 THROUGH ’97 /
1999 & NEWER F-250 / F-350 & F-450 SUPERDUTY PICKUPS (Not Cab-On-Chassis)
CAUTION!
Read pages 2-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
IMPORTANT NOTES FOR THIS INSTALLATION:
1. On short bed vehicles, attach Driver’s Side forward bracket on Row 2 to avoid interference with fuel lines.
2. On vehicles with overload springs, switch position of long and short brackets.
3. May need to move base rail location +/- 1/2” to ensure frame brackets do not interfere with bed sills.

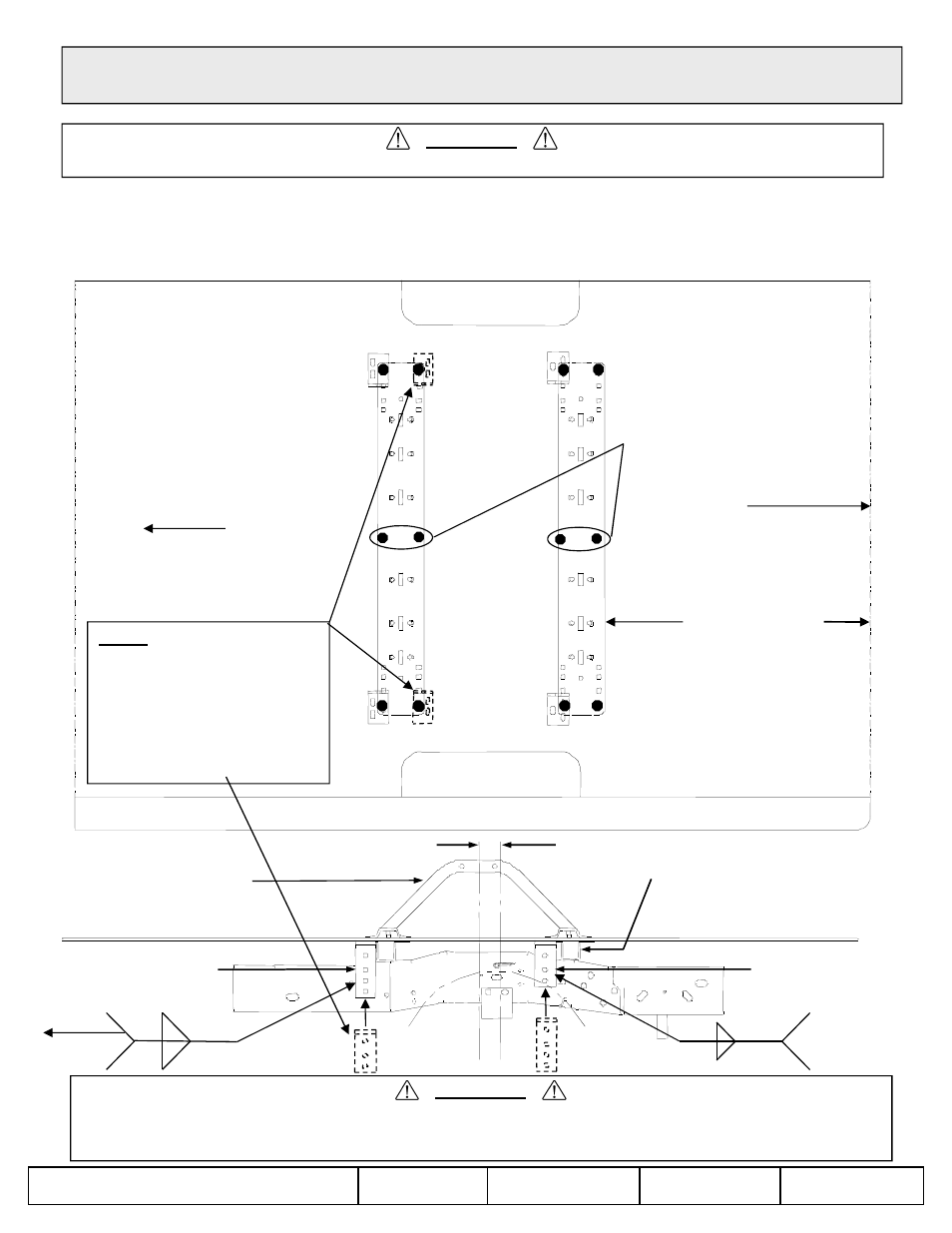

Front
of
Vehicle
Rear Edge of
Truck Bed
R
O
W
1
R
O
W
2
R
O
W
3
R
O
W
4
32-1/2” Long Box
NOTE:
Must install center bolt in
one of the center holes in
each rail.
Check to make sure center
bolt does not interfere with
bed sill.
z 2006,2007,2008,2009,2010,2011,2012,2013 Cequent Performance Products, Inc.
Made in China 30035IN 9/4/13 Rev. R
32-1/2” Long Box
and Short Box
Measure from Rear Edge of truck
bed to rear edge of base rail.
NOTE: Some later models will
require exchanging forward
long brackets from front to rear
and or repositioning forward
brackets to Row 2. This is to
avoid brake cable hangers and
overload springs. Shown here
by dashed lines.
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
CEQUENT PERFORMANCE PRODUCTS, INC. does its best to communicate tow vehicle manufacturer changes; however, it is
ultimately the responsibility of the installer to prevent damage due to installation.
1/4 1.5-3
1/4 2
*
1/4 2
1/4 2
*
Axle Center King Pin Center approx.. 4” forward of Axle Center
Drivers side of F350 Super
Duty long box Shown
* Optional weld
pattern
Side Bracket
Long bracket Short bracket
Bed Sill
