Draw-Tite 30035 FIFTH WHEEL RAILS - Manual (Page 13)

2009 & UP-DODGE(RAM)1500, INCLUDING CREWCAB (USE REQUIRED BRACKET KIT 58386)
CAUTION!
Read pages 2-3 of 30035 instructions before starting installation. Failure to do so could result in significant vehicle damage!

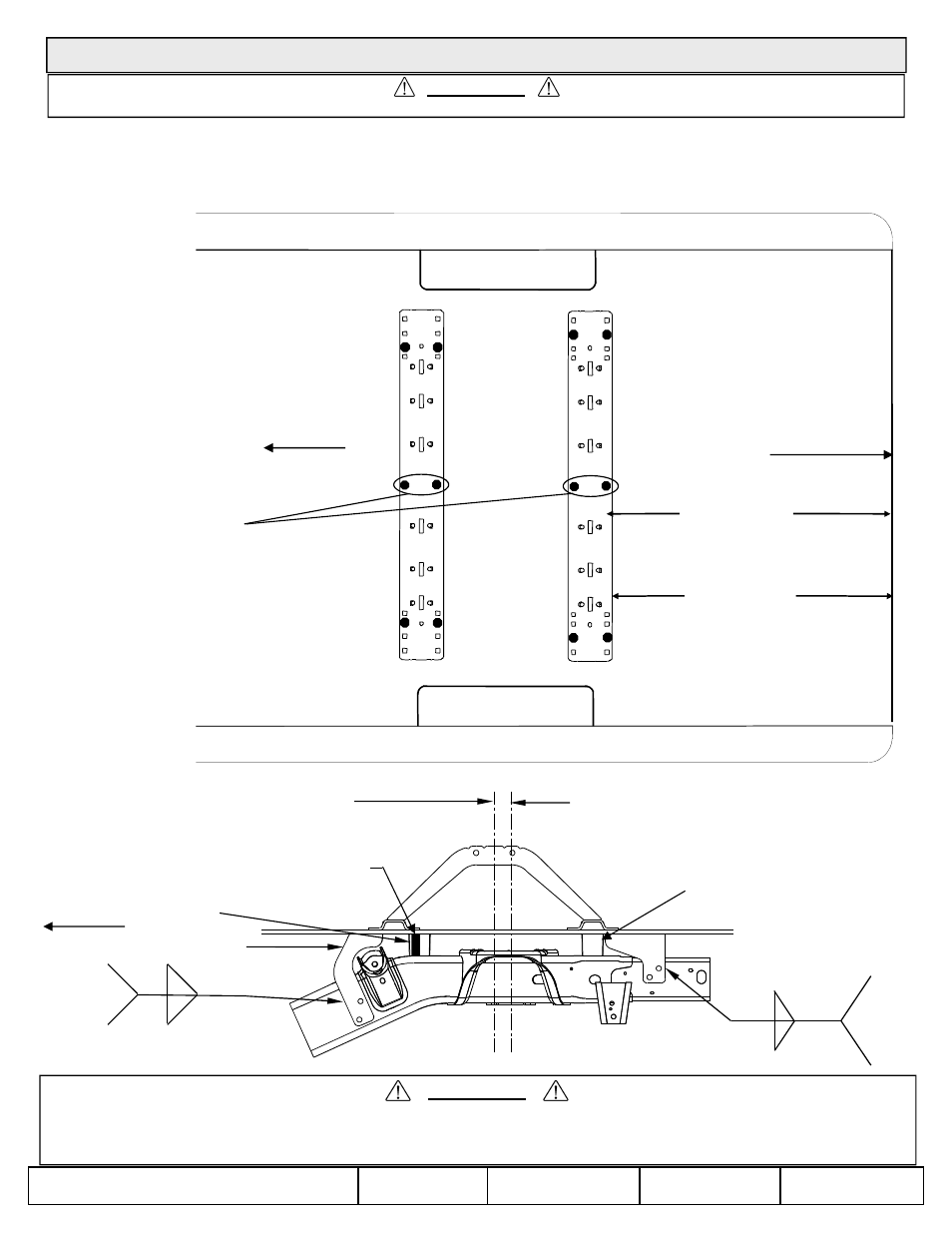

31” Long Box
Front of
Vehicle
Rear Edge
of Truck
Bed
R
O
W
1
R
O
W
2
R
O
W
3
R
O
W
4
29” Short Box
(Crewcab models (less than 6’ bed)
require a Reese Sidewinder TM Pinbox)
Drill through
Bed Sill with
17/32” drill.
Open up hole
through truck
bed only with
1” dia. drill.
Drop tube
spacer through
hole in truck
bed to avoid
crushing Bed
Sill when
IMPORTANT NOTES FOR THIS INSTALLATION:
Use the 58386 service kit together with 30035 mounting kit.
1. Tube spacer and 4 1/2” carriage bolt used to attach through forward Bed Sill (Row 2).
2. **Rib neck bolts will need to be pulled through access holes in frame with supplied pull wire (see below).
3. Do not drill thru both
walls of frame. Drill only
thru wall of frame to which
bracket is mounted.
NOTE:
Must install center bolt
in one of the center
holes in each rail.
Check to make sure
center bolt does not
interfere with bed sill.
z 2006,2007,2008,2009,2010,2011,2012,2013 Cequent Performance Products, Inc.
Made in China 30035IN 9/4/13 Rev. R
1/4
2
1/4
2
Forward Side Bracket
*
Optional
weld
pattern
*
1/4 2
1/4 2
*
Bed Sill
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
CEQUENT PERFORMANCE PRODUCTS, INC. does its best to communicate tow vehicle manufacturer changes; however, it is
ultimately the responsibility of the installer to prevent damage due to installation.
King Pin Center
approx. 1-1/2”
forward of axle center.
Bed Sill
Axle Center
Use provided(30035 kit) tube
spacers and 4-1/2” carriage
bolts to attach through Bed Sill
Measure from Rear Edge
of truck bed to rear edge
of base rail.
Sill when
torquing 4-1/2”
carriage bolt.
SHEET 12 0F 21
interfere with bed sill.
Front
of
Vehicle
