Draw-Tite 30035 FIFTH WHEEL RAILS - Manual (Page 7)

CHEVROLET/GMC 88-98 / 92-98 4-DOOR / ‘99 SILVERADO
SIERRA CLASSIC (WITH TAPERED FRAME) (RED TURN SIGNALS)
CAUTION!
Read pages 2-3 of these instructions before starting installation. Failure to do so could result in significant vehicle damage!
IMPORTANT NOTES FOR THIS INSTALLATION:

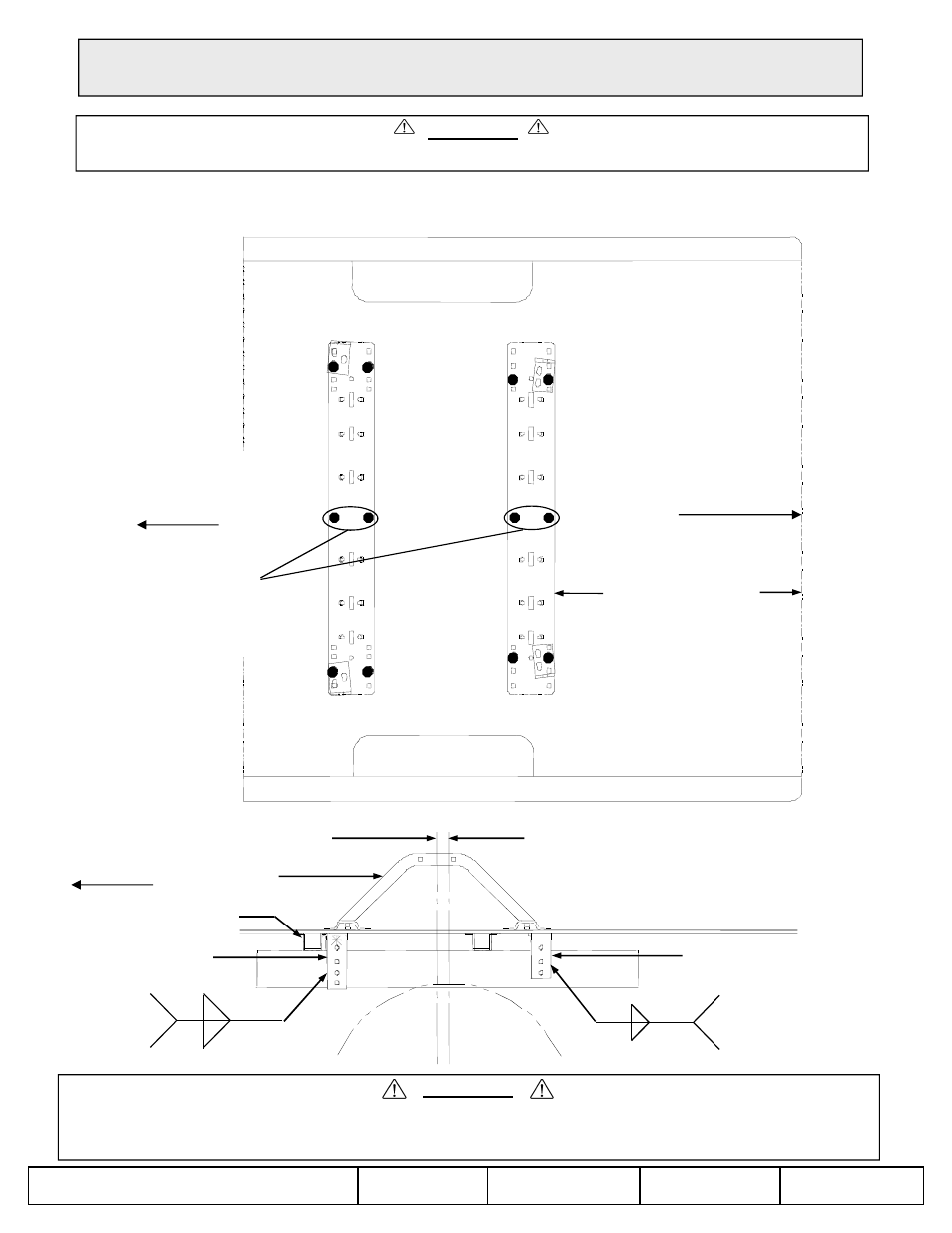

1. Find parallel rows of bed sill spot welds in bed of truck. No drilling should be done in the ~4” between parallel rows of
spot welds where the bed sill sits.
Rear Edge of
Truck Bed
30-15/16” Long Box
26-3/16” Short Box
R
O
W
1
R
O
W
2
R
O
W
3
R
O
W
4
Front of
Vehicle
z 2006,2007,2008,2009,2010,2011,2012,2013 Cequent Performance Products, Inc.
Made in China 30035IN 9/4/13 Rev. R
CAUTION!
Check for obstructions before drilling. Failure to do so could result in damaged fuel or brake lines, structural members, etc.
CEQUENT PERFORMANCE PRODUCTS, INC. does its best to communicate tow vehicle manufacturer changes; however, it is
ultimately the responsibility of the installer to prevent damage due to installation.
Side Bracket
Axle Center
1/4 1.5-3
1/4 2
*
1/4 2
1/4 2
*
*
Optional weld
pattern
Drivers side 1/2 ton Long Box shown
King Pin Center approx.. 1-1/2”
forward of Axle Center
Measure from Rear Edge
of truck bed to rear edge
of base rail.
Long bracket Short bracket
Bed Sill
SHEET 6 0F 21
NOTE:
Must install center bolt in
one of the center holes in
each rail.
Check to make sure center
bolt does not interfere with
bed sill.
Front of
Vehicle
